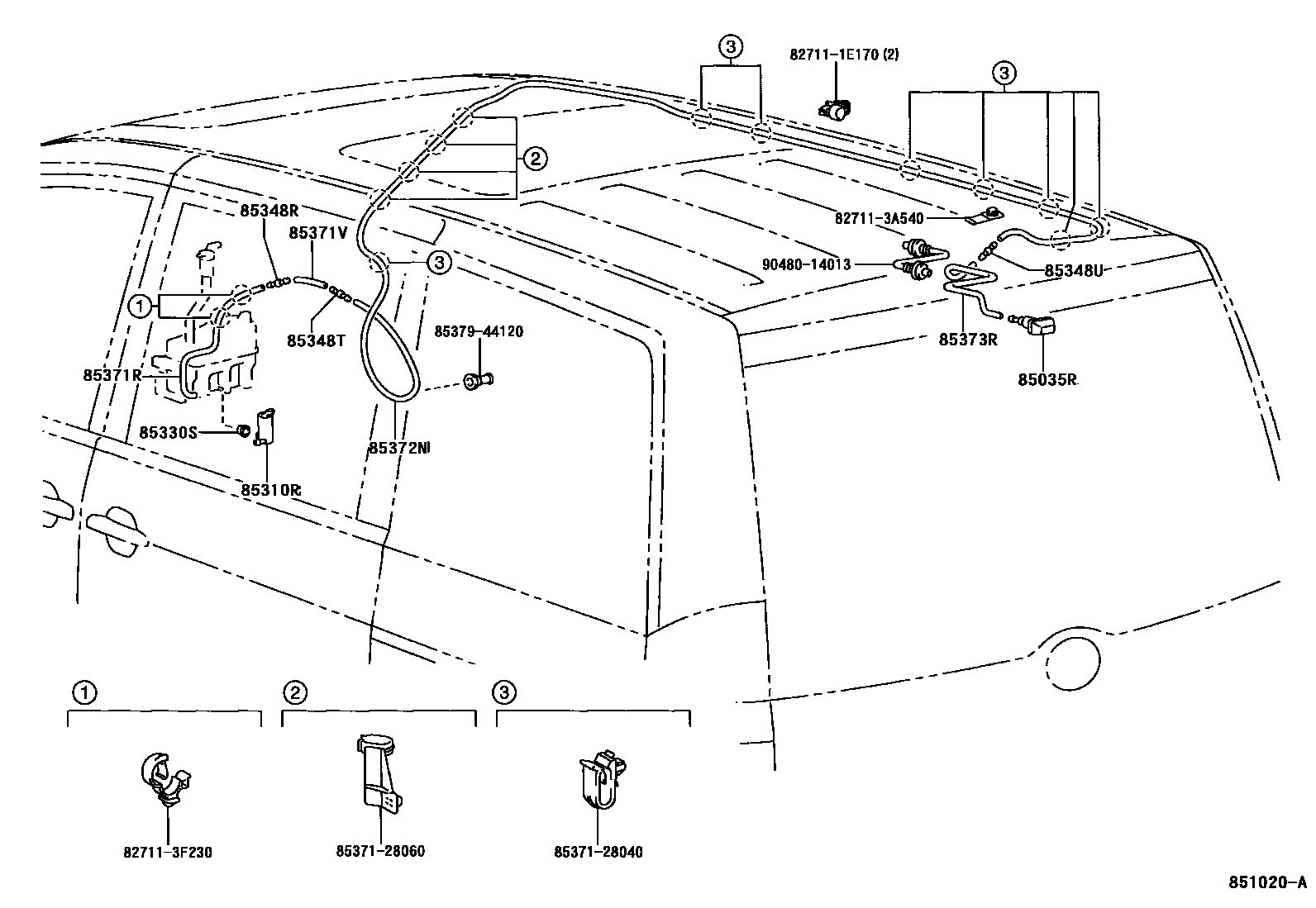

Toyota NOAH/VOXY — REAR WASHER

85035RNOZZLE SUB-ASSY, REAR WASHER

main85391-28140i200111-200408

85310RMOTOR ASSY, REAR WASHER

main85330-60140i200111-200408

85330SBUSH, REAR WASHER JAR

main90099-32089i200111-200408

85348RJOINT, REAR WASHER HOSE, NO.1

main85349-89122i200111-200408

85348TJOINT, REAR WASHER HOSE, NO.2

main85349-89122i200111-200408

85348UJOINT, REAR WASHER HOSE, NO.3

main85349-89122i200111-200408

85371RHOSE, REAR WASHER (FROM MOTOR TO JOINT)

main90446-06013i200111-200408

85371VHOSE, REAR WASHER (FROM JOINT TO JOINT)

main90099-33299i200111-200408

85372NHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.1

main90099-33595i200111-200408

85373RHOSE, REAR WASHER (FROM JOINT TO NOZZLE)

main90099-33080i200111-200206

827111E170WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-1E170

827113A540WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-3A540

827113F230WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-3F230

8537128040HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main85371-28040

8537128060HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main85371-28060

8537944120JOINT

main85379-44120

9048014013

main90480-14013

17 parts on this diagram · 1 diagram in section

REAR WASHER for Toyota NOAH/VOXY

This section contains 17 genuine Toyota parts for the REAR WASHER system of the Toyota NOAH/VOXY. Key components include: NOZZLE SUB-ASSY, REAR WASHER, MOTOR ASSY, REAR WASHER, BUSH, REAR WASHER JAR, JOINT, REAR WASHER HOSE, NO.1, JOINT, REAR WASHER HOSE, NO.2.
