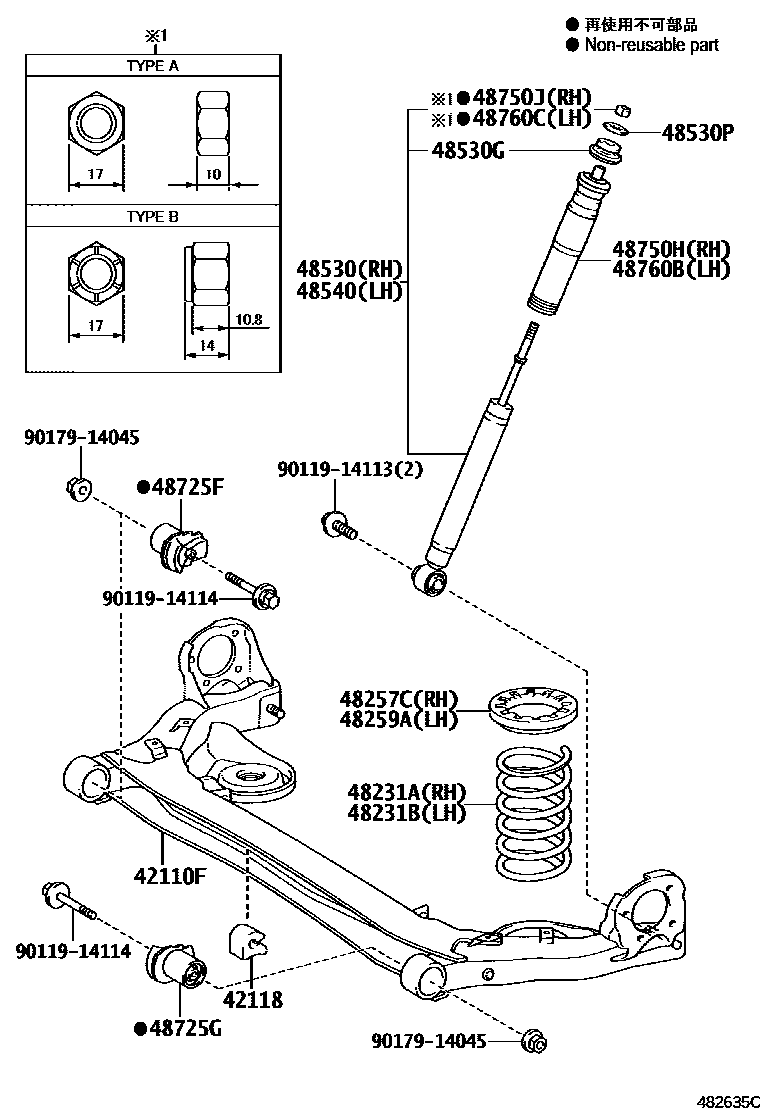

Toyota NOAH/VOXY — REAR SPRING & SHOCK ABSORBER
42110FBEAM ASSY, REAR AXLE
42118DAMPER, REAR AXLE BEAM
48231ASPRING, COIL, REAR RH
48231BSPRING, COIL, REAR LH
48257CINSULATOR, REAR COIL SPRING, UPPER RH
48259AINSULATOR, REAR COIL SPRING, UPPER LH
48530ABSORBER ASSY, SHOCK, REAR RH
48530GCUSHION, REAR SHOCK ABSORBER, NO.1
48530PRETAINER, CUSHION, NO.2(FOR REAR SHOCK ABSORBER)
48540ABSORBER ASSY, SHOCK, REAR LH
48725FBUSH, REAR AXLE CARRIER, RH
48725GBUSH, REAR AXLE CARRIER, LH
48750HSUPPORT ASSY, REAR SUSPENSION, RH
48750JNUT(FOR REAR SUPPORT TO REAR SHOCK ABSORBER RH)
48760BSUPPORT ASSY REAR SUSPENSION, LH
48760CNUT(FOR REAR SUPPORT TO REAR SHOCK ABSORBER LH)
9011914113
main90119-14113
9011914114
main90119-14114
9017914045
main90179-14045
19 parts on this diagram · 2 diagrams in section
REAR SPRING & SHOCK ABSORBER for Toyota NOAH/VOXY
This section contains 20 genuine Toyota parts for the REAR SPRING & SHOCK ABSORBER system of the Toyota NOAH/VOXY. Key components include: BEAM ASSY, REAR AXLE, DAMPER, REAR AXLE BEAM, SPRING, COIL, REAR RH, SPRING, COIL, REAR LH, INSULATOR, REAR COIL SPRING, UPPER RH.
