Toyota NOAH/VOXY — REAR DOOR LOCK & HANDLE
69050LOCK ASSY, SLIDE DOOR FULL OPEN STOP, RH
main69050-28070iZRR7#..(S,X,Z)..CBU; ZRR7#..(TRASX,X,YY)..CBU; ZRR7#..CBU,IV5; ZRR70..X..CBU201004-201401
69060LOCK ASSY, SLIDE DOOR FULL OPEN STOP, LH
main69060-28110supersedes 69060-28090iZRR7#..(05S,08S)..(TRASX,X,YY)..CBU; ZRR7#..08S..X..CBU; ZRR7#..CBU,IV5200706-201004
69130ACTUATOR ASSY, REAR DOOR LOCK, RH
main69130-58020supersedes 69130-58010iZRR7#..(G,SI,V,ZS)..(CBU,IV5); ZRR7#..05S;ZRR7#..X..IV5; ZRR7#..X..IV5201004-201401
69140ACTUATOR ASSY, REAR DOOR LOCK, LH
main69140-58020supersedes 69140-58010iZRR7#..(05S,08S)..(TRASX,X,YY)..CBU; ZRR7#..HTWC..IV5;ZRR7#..07S..HTWC..CBU;ZRR7#..(G,S,SI,V,Z,ZS)..(CBU,IV5)200706-201004
69180CONTROL ASSY, SLIDE DOOR HALF OPEN STOPPER
main69180-28080supersedes 69180-28090iZRR7#..(05S,08S)..(TRASX,X,YY)..CBU; ZRR7#..08S..X..CBU; ZRR7#..HTWC..IV5;ZRR7#..07S..HTWC..CBU;ZRR7#..(G,S,SI,V,Z,ZS)..(CBU,IV5)200706-201004
69203AFRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, RH
69204AFRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, LH
69205AHANDLE SUB-ASSY, REAR DOOR INSIDE, RH
main69207-28020-C0iZRR7#..G; ZRR7#..SI..CBU; ZRR7#..X..IV5;ZRR7#..VOXY..X..CBU;ZRR7#..(S,SI,TRASX,V,YY,Z,ZS)..(CBU,IV5); ZRR70..SI..CBU201004-201401
69206CHANDLE SUB-ASSY, REAR DOOR INSIDE, LH
69227JCOVER, REAR DOOR OUTSIDE HANDLE, RH
WHITE PEARL CS.,070
SILVER ME.,1F7
main69227-28050-C1iZRR7#..(S,TRASX,X,YY,Z)..CBU; ZRR7#..X..IV5;ZRR7#..(G,SI,V,ZS)..(CBU,IV5)201004-201401
BLACK,202
DK. RED M.M.,3Q3
SILKY GOLD M.M.,5A4
DK.BLUE MC.,8S6
DK.VIOLET M.M.,9AF
GRAY ME.,1G3
LT.BLUE M.M.,8S7
LT.BLUE M.M.,8S1
DEEP RED M.M.,3R9
69227LCOVER, REAR DOOR OUTSIDE HANDLE, LH
main69227-28050-A5iZRR7#..(S,TRASX,X,YY,Z)..CBU; ZRR7#..X..IV5;ZRR7#..(G,SI,V,ZS)..(CBU,IV5)201004-201401
WHITE PEARL CS.,070
main69227-28050-B8iZRR7#..(S,TRASX,X,YY,Z)..CBU; ZRR7#..X..IV5;ZRR7#..(G,SI,V,ZS)..(CBU,IV5)201004-201401
SILVER ME.,1F7
BLACK,202
DK. RED M.M.,3Q3
SILKY GOLD M.M.,5A4
DK.BLUE MC.,8S6
DK.VIOLET M.M.,9AF
GRAY ME.,1G3
LT.BLUE M.M.,8S7
LT.BLUE M.M.,8S1
DEEP RED M.M.,3R9
69230HANDLE ASSY, REAR DOOR OUTSIDE, RH
main69213-28010-A5iZRR7#..(S,TRASX,X,YY,Z)..CBU; ZRR7#..X..IV5;ZRR7#..(G,SI,V,ZS)..(CBU,IV5)201004-201401
WHITE PEARL CS.,070
SILVER ME.,1F7
BLACK,202
DK. RED M.M.,3Q3
SILKY GOLD M.M.,5A4
DK.BLUE MC.,8S6
DK.VIOLET M.M.,9AF
GRAY ME.,1G3
LT.BLUE M.M.,8S7
LT.BLUE M.M.,8S1
DEEP RED M.M.,3R9
69230CBUSH(FOR REAR DOOR OUTSIDE HANDLE)
69240HANDLE ASSY, REAR DOOR OUTSIDE, LH
WHITE PEARL CS.,070
SILVER ME.,1F7
BLACK,202
DK. RED M.M.,3Q3
SILKY GOLD M.M.,5A4
DK.BLUE MC.,8S6
DK.VIOLET M.M.,9AF
GRAY ME.,1G3
LT.BLUE M.M.,8S7
LT.BLUE M.M.,8S1
DEEP RED M.M.,3R9
69241GPAD, REAR DOOR OUTSIDE HANDLE, FRONT
69242GPAD, REAR DOOR OUTSIDE HANDLE, REAR
69293JSNAP, REAR DOOR OUTSIDE HANDLE, LH
69293KSNAP, REAR DOOR OUTSIDE HANDLE, RH
69296ASCREW, DOOR INSIDE HANDLE
69330LOCK ASSY, REAR DOOR, RH
main69200-28050supersedes 69330-28100iZRR7#..(05S,08S)..(TRASX,X,YY)..CBU; ZRR7#..08S..X..CBU; ZRR7#..HTWC..IV5;ZRR7#..07S..HTWC..CBU;ZRR7#..(G,S,SI,V,Z,ZS)..(CBU,IV5)200706-200911
main69200-28051iZRR7#..(05S,08S)..(TRASX,X,YY)..CBU; ZRR7#..08S..X..CBU; ZRR7#..HTWC..IV5;ZRR7#..07S..HTWC..CBU;ZRR7#..(G,S,SI,V,Z,ZS)..(CBU,IV5)200912-201004
main69200-28052iZRR7#..(S,X,Z)..CBU; ZRR7#..(TRASX,X,YY)..CBU; ZRR7#..X..IV5;ZRR7#..(G,SI,V,ZS)..(CBU,IV5); ZRR70..X..CBU201205-201401
69340LOCK ASSY, REAR DOOR, LH
main69300-28090supersedes 69340-28190iZRR7#..(05S,08S)..(TRASX,X,YY)..CBU; ZRR7#..08S..X..CBU; ZRR7#..HTWC..IV5;ZRR7#..07S..HTWC..CBU;ZRR7#..(G,S,SI,V,Z,ZS)..(CBU,IV5)200706-200911
main69300-28091iZRR7#..(S,X,Z)..CBU; ZRR7#..(TRASX,X,YY)..CBU; ZRR7#..X..IV5;ZRR7#..(G,SI,V,ZS)..(CBU,IV5); ZRR70..X..CBU201004-201204
main69300-28092iZRR7#..(S,X,Z)..CBU; ZRR7#..(TRASX,X,YY)..CBU; ZRR7#..X..IV5;ZRR7#..(G,SI,V,ZS)..(CBU,IV5); ZRR70..X..CBU201205-201401
69370BLOCK ASSY, SLIDE DOOR, FRONT RH
main69370-28120supersedes 69370-28110iZRR7#..(05S,08S)..(TRASX,X,YY)..CBU; ZRR7#..08S..X..CBU; ZRR7#..CBU,IV5200706-201004
69380BLOCK ASSY, SLIDE DOOR, FRONT LH
main69380-28140iZRR7#..(S,X,Z)..CBU; ZRR7#..(TRASX,X,YY)..CBU; ZRR7#..CBU,IV5; ZRR70..X..CBU201004-201401
69440APLATE ASSY, SLIDE DOOR FRONT LOCK STRIKER
69440BPLATE ASSY, SLIDE DOOR FRONT LOCK STRIKER
69470PLATE ASSY, SLIDE DOOR LOCK STRIKER
69470APLATE ASSY, SLIDE DOOR LOCK STRIKER, LH
69485DSTRIKER, SLIDE DOOR OPEN, RH
69486ESTRIKER, SLIDE DOOR OPEN, LH
69490ESTOPPER ASSY, SLIDE DOOR HALF OPEN
69630CCONTROL ASSY, SLIDE DOOR LOCK REMOTE, RH
main69630-28160iZRR7#..G,V; ZRR7#..X..IV5; ZRR7#..X..IV5;ZRR7#..(SI,TRASX,YY,ZS)..(CBU,IV5); ZRR70..(SI,ZS)..CBU201004-201401
69640CCONTROL ASSY, SLIDE DOOR LOCK REMOTE, LH
main69640-28240supersedes 69640-28250iZRR7#..(05S,08S)..(TRASX,X,YY)..CBU; ZRR7#..HTWC..IV5;ZRR7#..07S..HTWC..CBU;ZRR7#..(G,S,SI,V,Z,ZS)..(CBU,IV5)200706-201004
82711BCLAMP, WIRING HARNESS
9010506260
main90105-06260
9011906779
main90119-06779
9011908A60
main90119-08A60
9014850003
main90148-50003
9014860073
main90148-60073
9014880040
main90148-80040
9015940202
main90159-40202
9017905118
main90179-05118
9017910186
main90179-10186
9095901619
main90959-01619
9155380614
main91553-80614
9164180818
main91641-80818

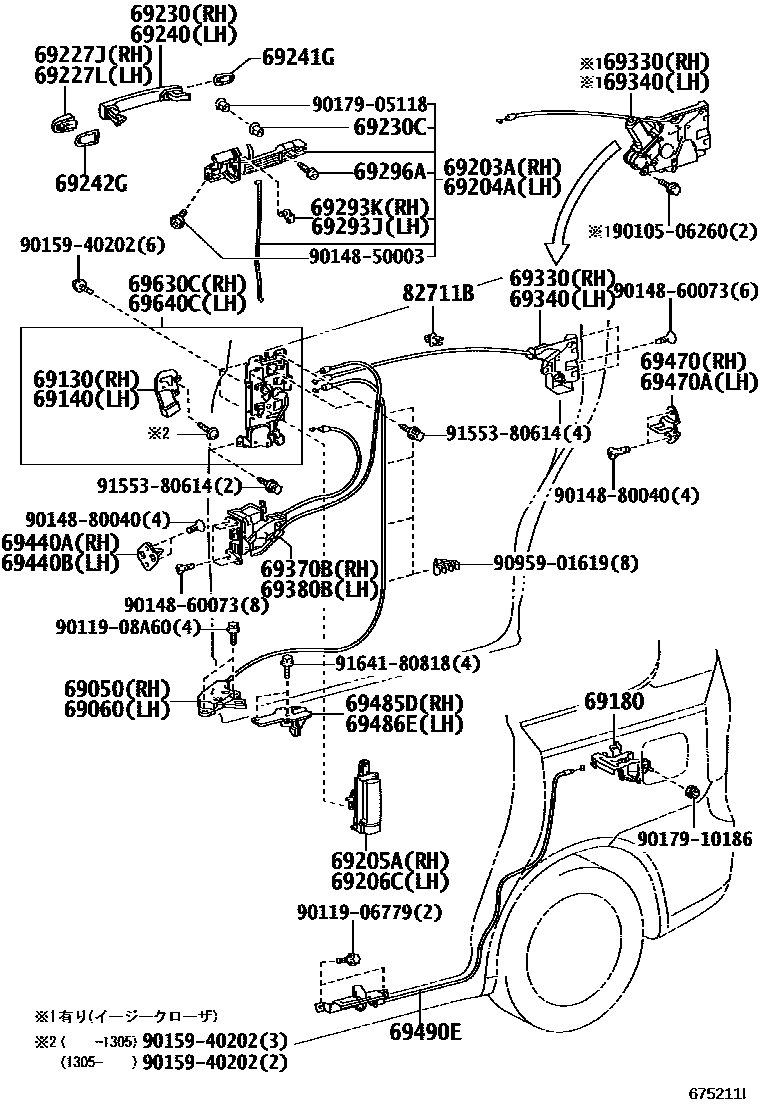

45 parts on this diagram · 1 diagram in section
REAR DOOR LOCK & HANDLE for Toyota NOAH/VOXY
This section contains 45 genuine Toyota parts for the REAR DOOR LOCK & HANDLE system of the Toyota NOAH/VOXY. Key components include: LOCK ASSY, SLIDE DOOR FULL OPEN STOP, RH, LOCK ASSY, SLIDE DOOR FULL OPEN STOP, LH, ACTUATOR ASSY, REAR DOOR LOCK, RH, ACTUATOR ASSY, REAR DOOR LOCK, LH, CONTROL ASSY, SLIDE DOOR HALF OPEN STOPPER.
