Toyota NOAH/VOXY — REAR COMBINATION LAMP

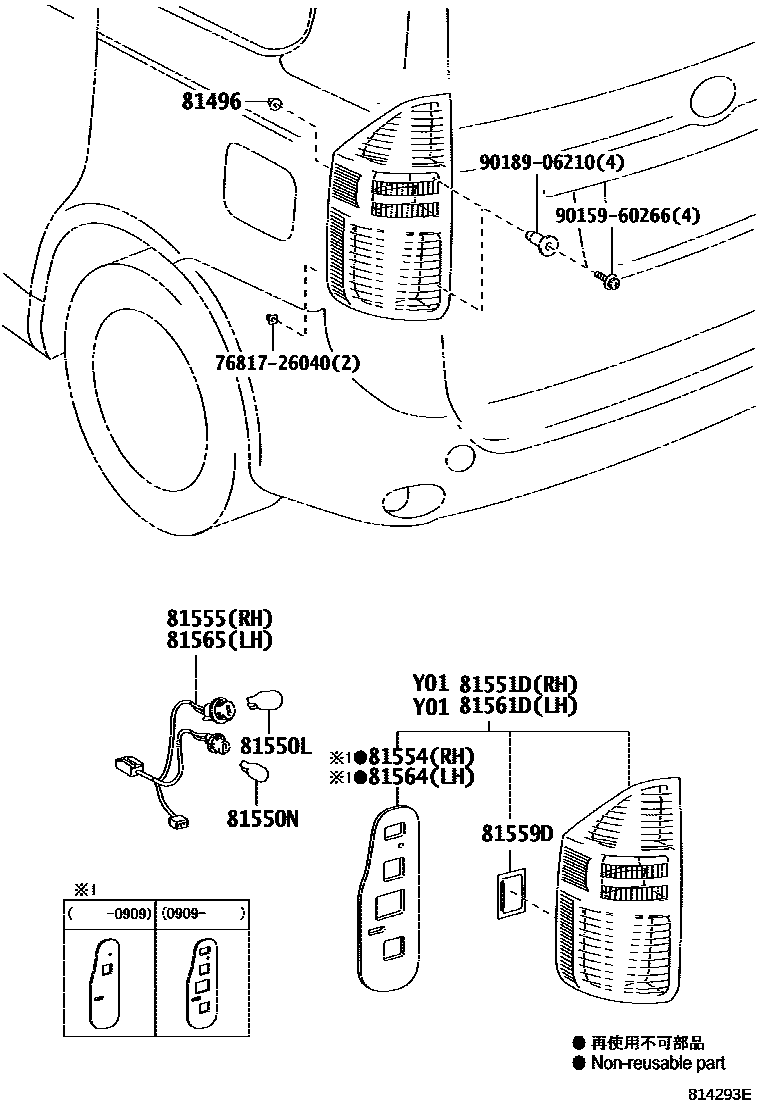

Parts diagram

81496GUIDE, REAR COMBINATION LAMP

main81496-52020×2i200706-201004

81550LBULB, REAR TURN SIGNAL LAMP

main90981-15011×2i200706-201004

main90981-15013×2i200806-200905

81550NBULB, BACK UP LAMP

main90981-11059×2i201004-201401

main90981-11055×2i200806-200905

81551DLENS & BODY, REAR COMBINATION LAMP, RH

main81551-28430i200706-200905

main81551-28431i200905-201004

main81551-28440i200706-200905

main81551-28441i200905-201004

main81551-28580i201004-201103

main81551-28581i201103-201306

main81551-28582i201306-201401

main81551-28590i201004-201008

main81551-28591i201008-201102

main81551-28592i201102-201303

main81551-28593i201303-201306

main81551-28594i201306-201401

main81551-28540i200806-200905

main81551-28541i200906-201004

main81551-28600i201010-201102

main81551-28601i201102-201110

main81551-28602i201305-201306

main81551-28603i201306-201401

81554GASKET, REAR COMBINATION LAMP BODY, RH

main81552-28430i200706-200909

main81554-28431i200909-201004

main81554-28440i200909-201004

main81554-28580i201004-201401

main81554-28430i200806-200905

81555SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH

main81555-28430i200706-201004

main81555-28440i200706-201004

main81555-28580i201004-201103

main81555-28581i201103-201401

main81555-28590i201004-201102

main81555-28591i201102-201401

81559DDESICCANT, REAR COMBINATION LAMP

main81559-28430×2i200905-201004

main81559-28440×2i200905-201004

main81559-28450×2i200706-200905

81561DLENS & BODY, REAR COMBINATION LAMP, LH

main81561-28430i200706-200905

main81561-28431i200905-201004

main81561-28440i200706-200905

main81561-28441i200905-201004

main81561-28550i201004-201103

main81561-28551i201103-201306

main81561-28552i201306-201401

main81561-28560i201004-201008

main81561-28561i201008-201102

main81561-28562i201102-201303

main81561-28563i201303-201306

main81561-28564i201306-201401

main81561-28540i200806-200905

main81561-28541i200906-201004

main81561-28570i201010-201102

main81561-28571i201210-201303

main81561-28572i201303-201305

main81561-28573i201306-201401

81564GASKET, REAR COMBINATION LAMP BODY, LH

main81562-28430i200706-200909

main81564-28431i200909-201004

main81564-28440i200909-201004

main81564-28550i201004-201401

main81564-28430i200806-200905

81565SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH

main81555-28430i200706-201004

main81555-28440i200706-201004

main81555-28580i201004-201103

main81555-28581i201103-201401

main81555-28590i201004-201102

main81555-28591i201102-201401

7681726040CLIP, BACK DOOR OUTSIDE GARNISH

main76817-26040

9015960266

main90159-60266

9018906210

main90189-06210

13 parts on this diagram · 4 diagrams in section

REAR COMBINATION LAMP for Toyota NOAH/VOXY

This section contains 14 genuine Toyota parts for the REAR COMBINATION LAMP system of the Toyota NOAH/VOXY. Key components include: GUIDE, REAR COMBINATION LAMP, BULB, TAILLAMP, BULB, REAR TURN SIGNAL LAMP, BULB, BACK UP LAMP, LENS & BODY, REAR COMBINATION LAMP, RH.
