Toyota NOAH/VOXY — PARTIAL ENGINE ASSEMBLY

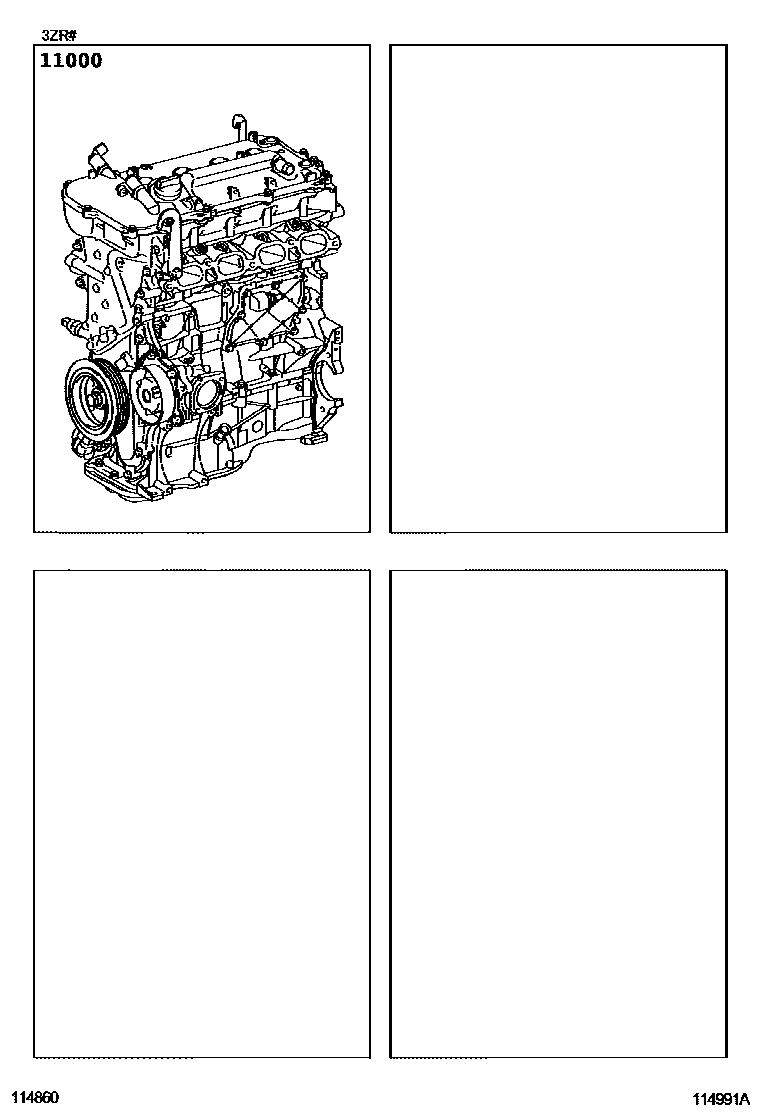

11000ENGINE ASSY, PARTIAL

main19000-37290i3ZRFE..ZRR7#..CBU,IV5200706-200806

sub19000-37291

sub90916-02679

main19000-37291i3ZRFE..ZRR7#..CBU,IV5200806-201004

sub19000-37293

main19000-37300i3ZRFAE..ZRR7#..CBU,IV5200706-200711

sub19000-37360

sub82124-28340

main19000-37360i3ZRFAE..ZRR7#..CBU,IV5200801-200806

sub19000-37362

sub90916-02679

main19000-37360i3ZRFAE..ZRR7#..CBU,IV5200711-200801

sub19000-37362

sub90916-02679

main19000-37362i3ZRFAE..ZRR7#..CBU,IV5200806-201004

sub19000-37364

main19000-37362i3ZRFAE..ZRR7#..CBU,IV5201004-201401

sub19000-37364

1 parts on this diagram · 1 diagram in section
