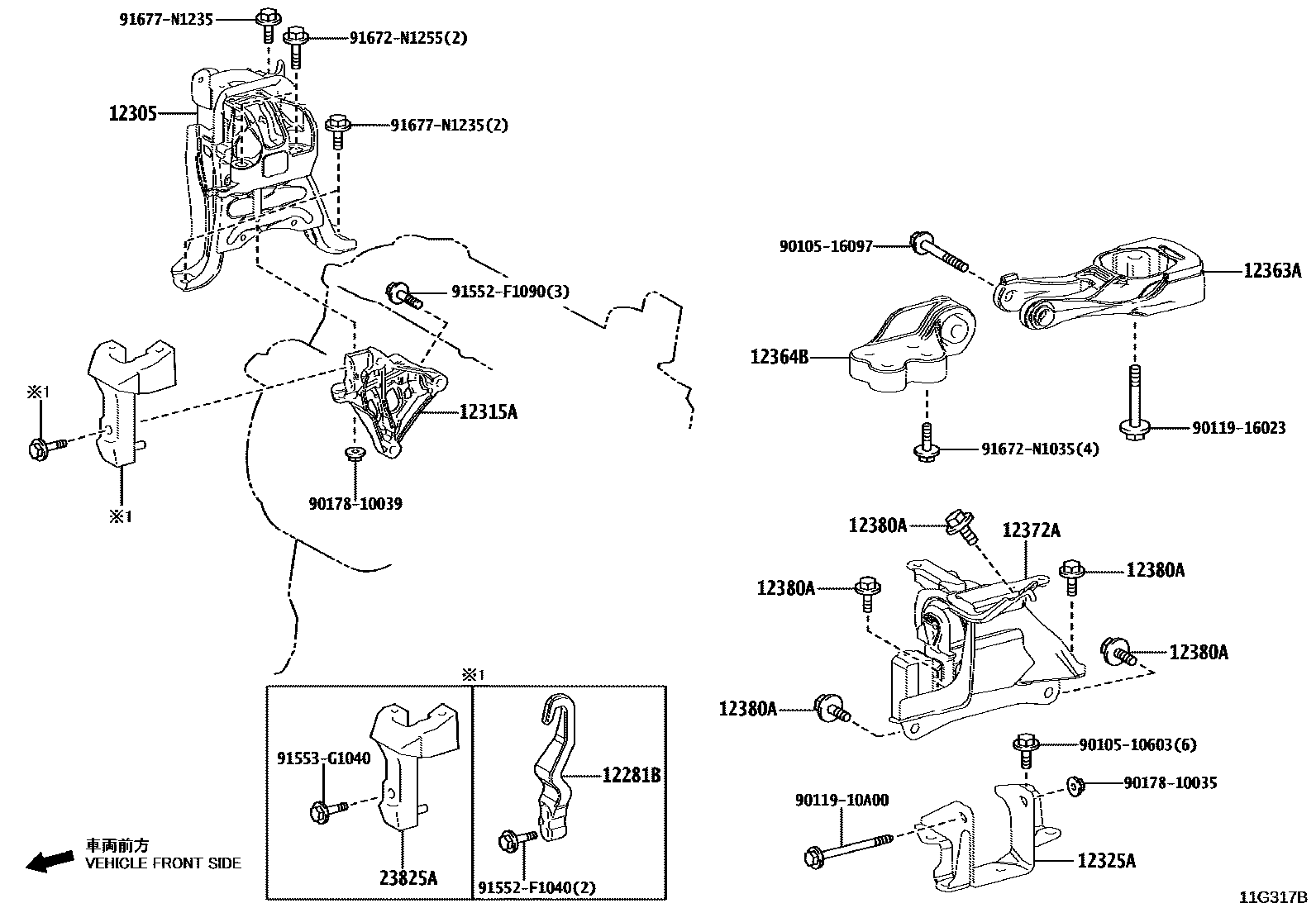

Toyota NOAH/VOXY — MOUNTING

0001 1 0002 1 0003 1

12281BHANGER, ENGINE, NO.1

main12281-25030iM20AFKS..MZRA9#..G,Z;M20AFKS..MZRA95..IV5;M20AFKS..MZRA92..08S..SG202201-202501

12305INSULATOR SUB-ASSY, ENGINE MOUNTING, RH

main12305-V1010iM20AFKS..MZRA92..08S..X;M20AFKS..MZRA90..SG,SZ,X;M20AFKS..MZRA92..07S..(SG,X)202201-202605

main12305-V1020iM20AFKS..MZRA95,97..(SG,SZ,X)..CBU202201-202605

main12305-V1030i2ZRFXE..ZWR9#..G,Z202201-202501

12315ABRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)

main12315-24011iM20AFKS..MZRA9#..G,Z;M20AFKS..MZRA95..IV5;M20AFKS..MZRA92..08S..SG202201-202501

main12315-37070i2ZRFXE..ZWR9#..SG,SZ,X202201

12325ABRACKET, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)

main12325-V1010iM20AFKS..MZRA9#..G,Z;M20AFKS..MZRA95..IV5;M20AFKS..MZRA92..08S..SG202201-202501

12363AROD, ENGINE MOVING CONTROL

main12363-V1010iM20AFKS..MZRA9#..G,Z;M20AFKS..MZRA95..IV5;M20AFKS..MZRA92..08S..SG202201-202501

12364BROD, ENGINE MOVING CONTROL, NO.2

main12364-V1010i2ZRFXE..ZWR90,92..G,Z202201-202501

main12364-V1020i2ZRFXE..ZWR95..G,Z202201-202501

12372AINSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)

main12372-V1010iM20AFKS..MZRA9#..G,Z;M20AFKS..MZRA95..IV5;M20AFKS..MZRA92..08S..SG202201-202501

main12372-V1020i2ZRFXE..ZWR9#..SG,SZ202201

12380ABOLT(FOR ENGINE MOUNTING INSURATOR)

main90105-10581×5iM20AFKS..MZRA92..08S..X;M20AFKS..MZRA92..07S..(SG,X);M20AFKS..MZRA90,95,97..(SG,SZ,X)..CBU202201-202605

23825AGUARD, FUEL DELIVERY

main23825-24010iM20AFKS..MZRA92..08S..X;M20AFKS..MZRA92..07S..(SG,X);M20AFKS..MZRA90,95,97..(SG,SZ,X)..CBU202201

9010510603

main90105-10603

9010516097

main90105-16097

9011910A00

main90119-10A00

9011916023

main90119-16023

9017810035

main90178-10035

9017810039

main90178-10039

91552F1040

main91552-F1040

91552F1090

main91552-F1090

91553G1040

main91553-G1040

91672N1035

main91672-N1035

91672N1255

main91672-N1255

91677N1235

main91677-N1235

21 parts on this diagram · 3 diagrams in section
