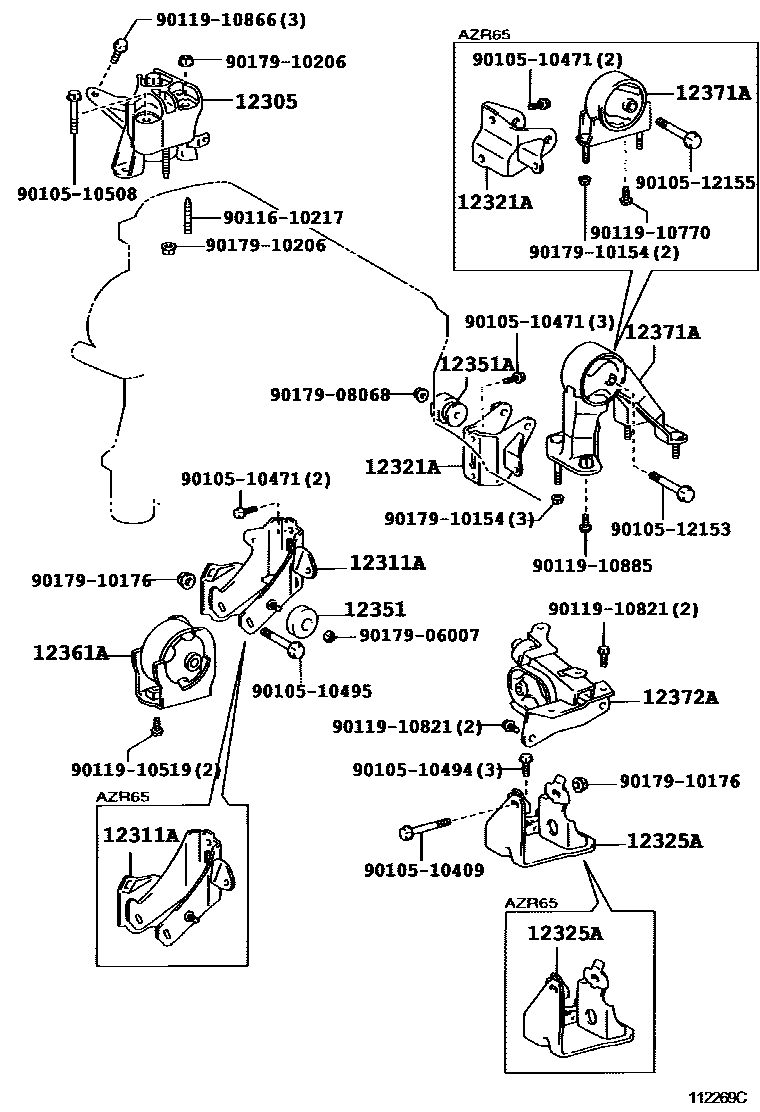

Toyota NOAH/VOXY — MOUNTING

0001 1 0002 1

12305INSULATOR SUB-ASSY, ENGINE MOUNTING, RH

main12305-28080i1AZFSE..AZR60200111-200408

main12305-28140i1AZFSE..AZR65200111-200408

12311ABRACKET, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE)

main12311-28120i1AZFSE..AZR60200111-200408

main12311-28130i1AZFSE..AZR65200408

12321ABRACKET, ENGINE MOUNTING, REAR(FOR TRANSVERSE ENGINE)

main12321-28090i1AZFSE..AZR60200111-200408

main12321-28120i1AZFSE..AZR65200111-200408

main12321-28140i1AZFSE..AZR65200408

main12321-28160i1AZFSE..AZR60200408

12325ABRACKET, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)

main12325-28130i1AZFSE..AZR60200111-200408

main12325-28140i1AZFSE..AZR65200111-200408

main12325-28230i1AZFSE..AZR6#200408

12351DAMPER, ENGINE MOUNTING

main12351-11023i1AZFSE..AZR6#200408

main12351-28010i1AZFSE..AZR6#200111-200408

12351ADAMPER, ENGINE MOUNTING(FOR INSULATOR)

main12351-27030i1AZFSE..AZR60200111-200408

12361AINSULATOR, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE)

main12361-28170i1AZFSE..AZR6#200111-200408

main12361-28171i1AZFSE..AZR6#200512

12371AINSULATOR, ENGINE MOUNTING, REAR

main12371-28060i1AZFSE..AZR60..4HC200111-200201

main12371-28070i1AZFSE..AZR65..4HC200111-200201

main12371-28090i1AZFSE..AZR60200201-200408

main12371-28100i1AZFSE..AZR65200408

12372AINSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)

main12372-28100i1AZFSE..AZR6#200111-200408

main12372-28190i1AZFSE..AZR60200408

9010510409

main90105-10409

9010510471

main90105-10471

9010510494

main90105-10494

9010510495

main90105-10495

9010510508

main90105-10508

9010512153

main90105-12153

9010512155

main90105-12155

9011610217

main90116-10217

9011910519

main90119-10519

9011910770

main90119-10770

9011910821

main90119-10821

9011910866

main90119-10866

9011910885

main90119-10885

9017906007

main90179-06007

9017908068

main90179-08068

9017910154

main90179-10154

9017910176

main90179-10176

9017910206

main90179-10206

27 parts on this diagram · 2 diagrams in section
