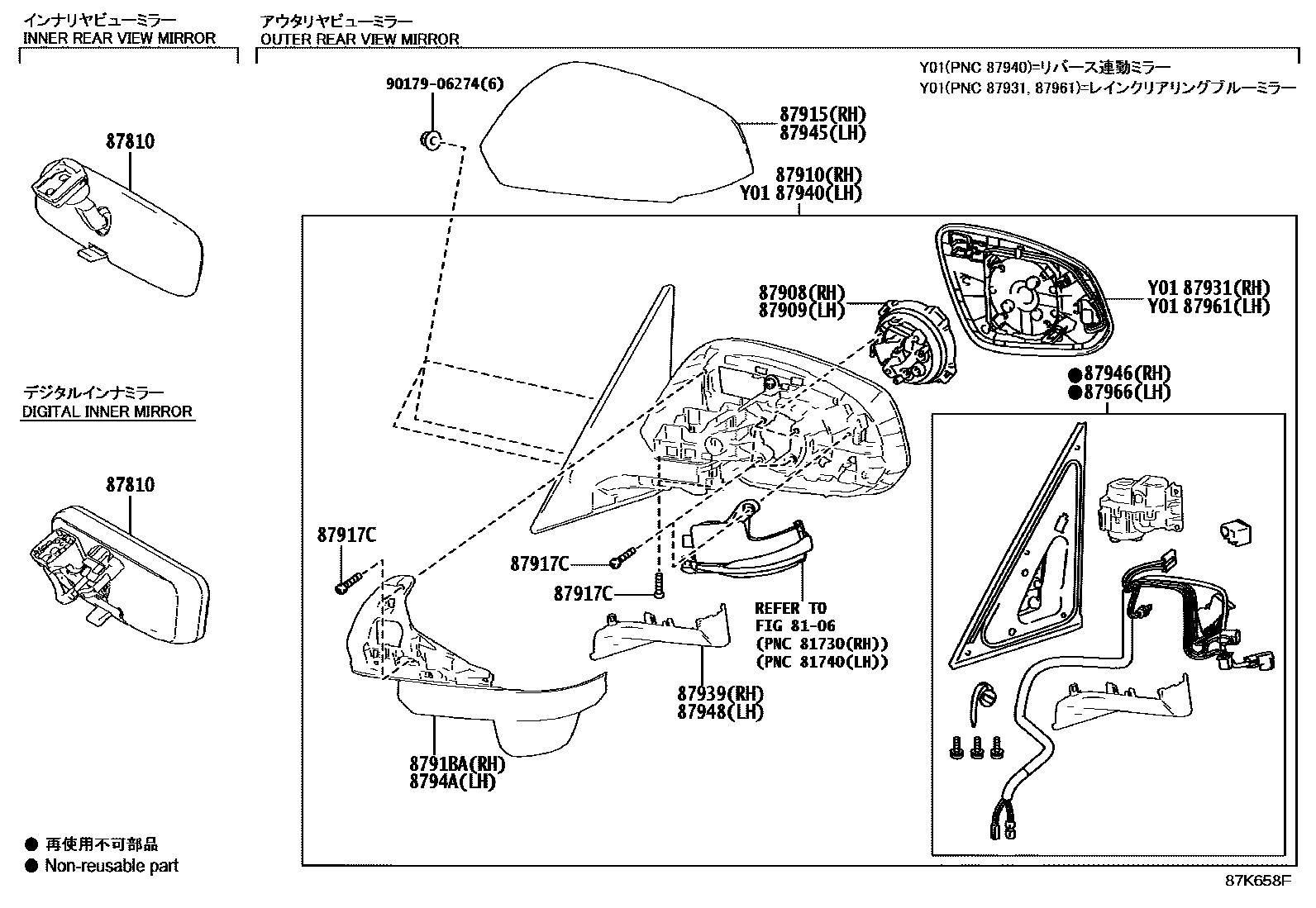

Toyota NOAH/VOXY — MIRROR

0001 1��(�������) 0002 1��(�������)

8106

87810MIRROR ASSY, INNER REAR VIEW

main87810-28140iMZRA95..IV5;MZRA92..08S..SG;MZRA9#,ZWR9#..G,Z202201-202501

main87810-28150iMZRA90,95,ZWR90,95..Z202201-202501

87908ACTUATOR ASSY, OUTER MIRROR, RH

main87908-42E71iMZRA95..IV5;MZRA92..08S..SG;MZRA9#,ZWR9#..G,Z202201-202501

87909ACTUATOR ASSY, OUTER MIRROR, LH

main87908-42E71iMZRA92..08S..X;MZRA92..07S..(SG,X);MZRA90,95,97,ZWR9#..(SG,SZ,X)..CBU202201

87910MIRROR ASSY, OUTER REAR VIEW, RH

main87910-28C80supersedes 87910-28C70iMZRA92..08S..X;MZRA92..07S..(SG,X);MZRA90,95,97,ZWR9#..(SG,SZ,X)..CBU202201-202502

main87910-28C90iMZRA90,95,ZWR90,95..Z202201-202501

main87910-28D00iMZRA9#,ZWR9#..G,SG,SZ,Z202201-202310

main87910-28D01iMZRA9#,ZWR9#..G,SG,SZ,Z202310-202410

main87910-28D02iMZRA92..08S..SG;MZRA95..SG..IV5;MZRA9#,ZWR9#..G,Z202410-202501

main87910-28D10iMZRA9#,ZWR9#..G,SG,SZ,Z202201-202310

main87910-28D11iMZRA9#,ZWR9#..G,SG,SZ,Z202310-202409

main87910-28D12iMZRA92..07S..SG;MZRA90,95,ZWR9#..(SG,SZ)..CBU202410-202502

87915COVER, OUTER MIRROR, RH

main87915-28100-A0iMZRA9#,ZWR9#202201-202501

WHITE PEARL CS.,070

main87915-28100-A1iMZRA92..08S..X;MZRA92..07S..(SG,X);MZRA90,95,97,ZWR9#..(SG,SZ,X)..CBU202501

PLATINUM WHITE PEARL MC.,089

main87915-28100-B0iMZRA95..IV5;MZRA92..08S..SG;MZRA9#,ZWR9#..G,Z202201-202501

METAL STREAM ME,1K0

main87915-28100-B1iMZRA90,92,95,ZWR9#..VOXY202201-202501

MASSIVE GRAY,1L6

main87915-28100-C0iMZRA95..IV5;MZRA92..08S..SG;MZRA9#,ZWR9#..G,Z202201-202501

ATTITUDE BLACK MC.,218

main87915-28100-C1iMZRA9#,ZWR9#202201-202501

SPARKLING BLACK PEARL CS.,220

main87915-28100-D0iMZRA90,92,95,ZWR9#..NOAH..(SG,SZ)202201-202501

RED M.M.,3R3

main87915-28100-E0iMZRA9#,ZWR9#..G,X,Z202201-202501

STEEL BLONDE ME.,4X1

main87915-28110-C2iMZRA92..08S..SG;MZRA95..SG..IV5202201-202501

GLITTER BLACK GF.,226

87917CSCREW, OUTER MIRROR

main87917-15010×9iMZRA92..08S..X;MZRA92..07S..(SG,X);MZRA90,95,97,ZWR9#..(SG,SZ,X)..CBU202201

8791BACOVER, OUTER MIRROR, RH NO.3

main8791B-28C70iMZRA92..08S..X;MZRA92..07S..(SG,X);MZRA90,95,97,ZWR9#..(SG,SZ,X)..CBU202201

main8791B-28D00iMZRA92..08S..SG;MZRA95..SG..IV5;MZRA9#,ZWR9#..G,Z202201-202501

87931OUTER MIRROR, RH

main87931-28C80supersedes 87931-28C70iMZRA92..08S..SG;MZRA95..SG..IV5;MZRA9#,ZWR9#..G,Z202201-202501

main87931-28C90iMZRA90,95,ZWR90,95..Z202201-202501

87939COVER, OUTER MIRROR HOLE, RH

main87939-28C70iMZRA92..08S..X;MZRA92..07S..(SG,X);MZRA90,95,97,ZWR9#..(SG,SZ,X)..CBU202201

87940MIRROR ASSY, OUTER REAR VIEW, LH

main87940-28D20supersedes 87940-28D10iMZRA92..08S..X;MZRA92..07S..(SG,X);MZRA90,95,97,ZWR9#..(SG,SZ,X)..CBU202201-202502

main87940-28D30iMZRA92..07S..SG;MZRA90,95,ZWR9#..SG..CBU202201-202502

main87940-28D40iMZRA9#,ZWR9#..G,SG,SZ,Z202201-202310

main87940-28D41iMZRA9#,ZWR9#..G,SG,SZ,Z202310-202410

main87940-28D42iMZRA92..07S..SG;MZRA90,95,ZWR9#..(SG,SZ)..CBU202410-202502

main87940-28D50iMZRA9#,ZWR9#..G,SG,SZ,Z202201-202310

main87940-28D51iMZRA9#,ZWR9#..G,SG,SZ,Z202310-202409

main87940-28D52iMZRA92..08S..SG;MZRA95..SG..IV5;MZRA9#,ZWR9#..G,Z202410-202501

87945COVER, OUTER MIRROR, LH

main87945-28100-A0iMZRA9#,ZWR9#202201-202501

WHITE PEARL CS.,070

main87945-28100-A1iMZRA92..08S..X;MZRA92..07S..(SG,X);MZRA90,95,97,ZWR9#..(SG,SZ,X)..CBU202501

PLATINUM WHITE PEARL MC.,089

main87945-28100-B0iMZRA92..08S..X;MZRA92..07S..(SG,X);MZRA90,95,97,ZWR9#..(SG,SZ,X)..CBU202201

METAL STREAM ME,1K0

main87945-28100-B1iMZRA90,92,95,ZWR9#..VOXY202201-202501

MASSIVE GRAY,1L6

main87945-28100-C0iMZRA92..08S..X;MZRA92..07S..(SG,X);MZRA90,95,97,ZWR9#..(SG,SZ,X)..CBU202201

ATTITUDE BLACK MC.,218

main87945-28100-C1iMZRA9#,ZWR9#202201-202501

SPARKLING BLACK PEARL CS.,220

main87945-28100-D0iMZRA90,92,95,ZWR9#..NOAH..(SG,SZ)202201-202501

RED M.M.,3R3

main87945-28100-E0iMZRA9#,ZWR9#..G,X,Z202201-202501

STEEL BLONDE ME.,4X1

main87945-28110-C2iMZRA92..07S..SG;MZRA90,95,ZWR9#..(SG,SZ)..CBU202201

GLITTER BLACK GF.,226

87946RETRACTOR, OUTER MIRROR, RH

main87946-28C80supersedes 87946-28C70iMZRA92..08S..X;MZRA92..07S..(SG,X);MZRA90,95,97,ZWR9#..(SG,SZ,X)..CBU202201-202502

main87946-28C90iMZRA9#,ZWR9#..G;MZRA92..08S..SG;MZRA95..SG..IV5202201-202501

main87946-28D00iMZRA92..08S..SG;MZRA95..SG..IV5;MZRA9#,ZWR9#..G,Z202201-202501

main87946-28D10iMZRA92..08S..SG;MZRA95..SG..IV5;MZRA9#,ZWR9#..G,Z202201-202501

87948COVER, OUTER MIRROR HOLE, LH

main87948-28D10iMZRA92..08S..X;MZRA92..07S..(SG,X);MZRA90,95,97,ZWR9#..(SG,SZ,X)..CBU202201

8794ACOVER, OUTER MIRROR, LH NO.2

main8794A-28D10iMZRA92..08S..X;MZRA92..07S..(SG,X);MZRA90,95,97,ZWR9#..(SG,SZ,X)..CBU202201

87961MIRROR OUTER, LH

main87961-28D20supersedes 87961-28D10iMZRA92..08S..X;MZRA92..07S..(SG,X);MZRA90,95,97,ZWR9#..(SG,SZ,X)..CBU202201-202502

main87961-28D30iMZRA9#,ZWR9#..G;MZRA92..08S..SG;MZRA95..SG..IV5202201-202501

87966RETRACTOR, OUTER MIRROR, LH

main87966-28D20supersedes 87966-28D10iMZRA95..IV5;MZRA92..08S..SG;MZRA9#,ZWR9#..G,Z202201-202501

main87966-28D30iMZRA92..07S..SG;MZRA90,95,ZWR9#..SG..CBU202201-202502

main87966-28D40iMZRA92..07S..SG;MZRA90,95,ZWR9#..(SG,SZ)..CBU202201-202502

main87966-28D50iMZRA92..08S..SG;MZRA95..SG..IV5;MZRA9#,ZWR9#..G,Z202201-202501

9017906274

main90179-06274

18 parts on this diagram · 2 diagrams in section
