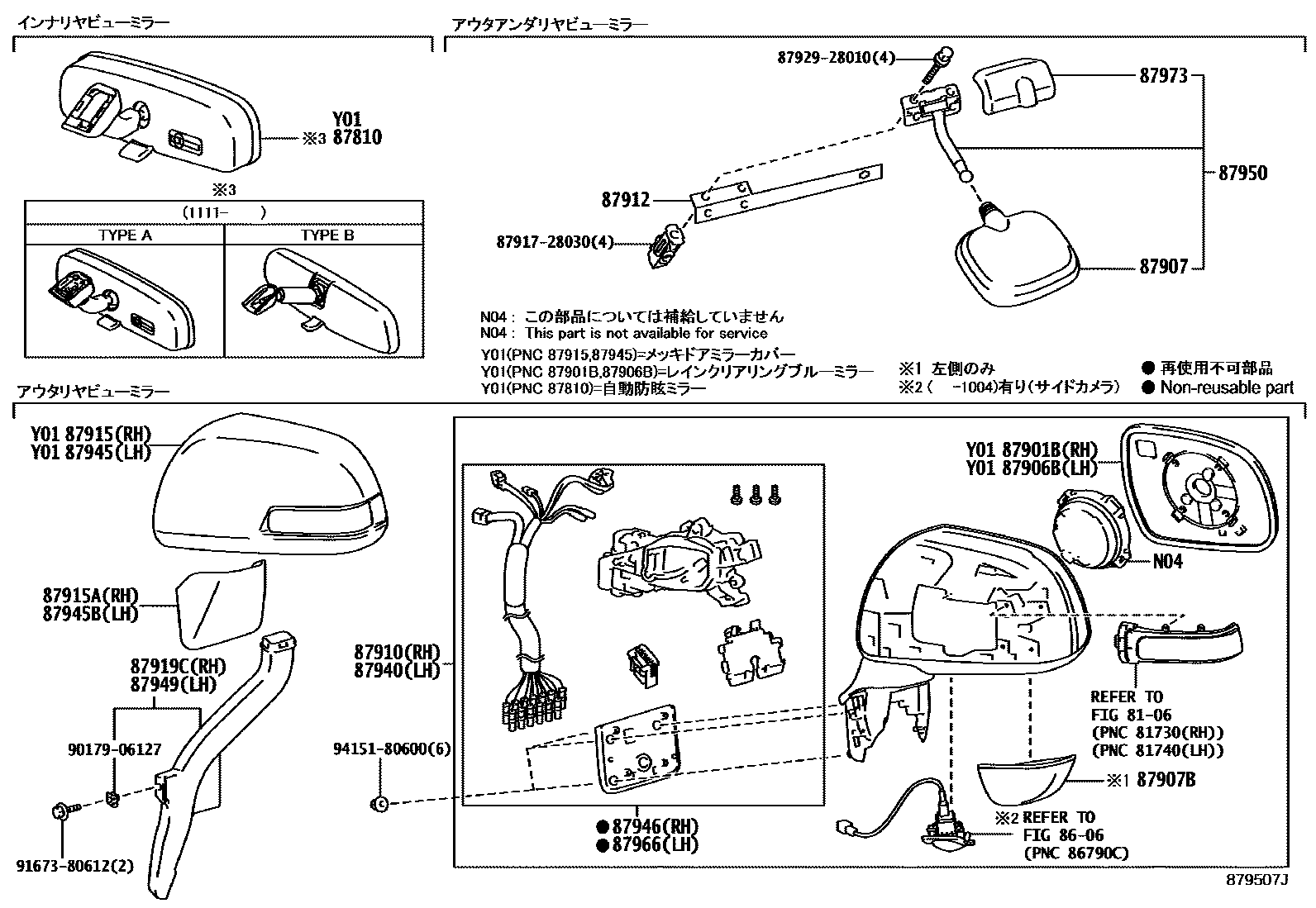

Toyota NOAH/VOXY — MIRROR

8106

8606

87810MIRROR ASSY, INNER REAR VIEW

main87810-52041iZRR7#..CBU,IV5201004-201111

main87810-AA011iZRR7#..CBU,IV5201111-201401

87901BMIRROR SUB-ASSY, OUTER REAR VIEW, RH

main87931-28B20iZRR7#..G,V200706-200903

main87931-28B21supersedes 87931-28B10iZRR7#..G,V200903-201004

87906BMIRROR SUB-ASSY, OUTER REAR VIEW, LH

main87961-28B30iZRR7#..G,V200706-200903

main87961-28B31supersedes 87961-28B10iZRR7#..G,V200903-201004

87907MIRROR SUB-ASSY, OUTER UNDER VIEW

main87907-28050iZRR7#..(G,TRASX,V,X,YY)..(CBU,IV5)200706-201004

87907BDEVICE SUB-ASSY,FRONT FENDER SIDE VIEW,LH

main87907-28040iZRR7#..CBU,IV5200706-201004

87910MIRROR ASSY, OUTER REAR VIEW, RH

main87910-28B20iZRR7#..G,V200706-200902

main87910-28B21supersedes 87910-28B10iZRR7#..G,V200903-201004

87912PROTECTOR, OUTER MIRROR

main87912-28070iZRR7#..(G,TRASX,V,X,YY)..(CBU,IV5)200706-201004

87915COVER, OUTER MIRROR, RH

main87915-28060-A1iZRR7#..CBU,IV5200706-201004

WHITE PEARL CS.,070

sub87915-42100

main87915-28060-B0iZRR7#..CBU,IV5200706-201004

SILVER ME.,1F7

sub87915-42100

main87915-28060-B2iZRR7#..NOAH..(CBU,IV5)200706-201004

GRAY ME.,1G3

sub87915-42100

main87915-28060-C0iZRR7#..CBU,IV5201004-201401

BLACK,202

sub87915-42100

main87915-28060-D0iZRR7#..(G,V,X)..(CBU,IV5)200706-201004

DK. RED M.M.,3Q3

sub87915-42100

main87915-28060-D2iZRR70..ZS..IV5;ZRR7#..NOAH..X..CBU;ZRR7#..(SI,Z,ZS)..CBU201004-201401

DEEP RED M.M.,3R9

sub87915-42100

main87915-28060-F0iZRR7#..(G,V,X)..(CBU,IV5)201004-201401

SILKY GOLD M.M.,5A4

sub87915-42100

main87915-28060-J0iZRR7#..(G,V,X)..(CBU,IV5)200706-201004

DK.BLUE MC.,8S6

sub87915-42100

main87915-28060-J1iZRR7#..(G,V,X)..(CBU,IV5)200706-201004

LT.BLUE M.M.,8S7

sub87915-42100

main87915-28060-J4iZRR7#..NOAH..(G,X)..(CBU,IV5)201004-201401

LT.BLUE M.M.,8S1

sub87915-42100

main87915-28060-K0iZRR7#..NOAH..08S..X..CBU;ZRR7#..VOXY..(V,X,ZS)..(CBU,IV5)200904-201004

LT.PURPLE M.M.,9AE

sub87915-42100

main87915-28060-K1iZRR7#..(G,TRASX,V,X,Z,ZS)..(CBU,IV5)201004-201401

DK.VIOLET M.M.,9AF

sub87915-42100

main87915-28080iZRR7#..ZS..CBU201010-201110

87915ACOVER, OUTER MIRROR, RH

main87915-28070-A0iZRR7#..CBU,IV5200706-201004

WHITE PEARL CS.,070

main87915-28070-B0iZRR7#..CBU,IV5200706-201004

SILVER ME.,1F7

main87915-28070-B1iZRR7#..NOAH..(CBU,IV5)200706-201004

GRAY ME.,1G3

main87915-28070-C0iZRR7#..CBU,IV5200706-201004

BLACK,202

main87915-28070-D0iZRR7#..(G,V,X)..(CBU,IV5)200706-201004

DK. RED M.M.,3Q3

main87915-28070-D1iZRR70..ZS..IV5;ZRR7#..NOAH..X..CBU;ZRR7#..(SI,Z,ZS)..CBU201004-201401

DEEP RED M.M.,3R9

main87915-28070-F0iZRR7#..(G,V,X)..(CBU,IV5)201004-201401

SILKY GOLD M.M.,5A4

main87915-28070-J0iZRR7#..(G,V,X)..(CBU,IV5)200706-201004

DK.BLUE MC.,8S6

main87915-28070-J1iZRR7#..(G,V,X)..(CBU,IV5)200706-201004

LT.BLUE M.M.,8S7

main87915-28070-J2iZRR7#..NOAH..(G,X)..(CBU,IV5)201004-201401

LT.BLUE M.M.,8S1

main87915-28070-K0iZRR7#..NOAH..08S..X..CBU;ZRR7#..VOXY..(V,X,ZS)..(CBU,IV5)200904-201004

LT.PURPLE M.M.,9AE

main87915-28070-K1iZRR7#..(G,TRASX,V,X,Z,ZS)..(CBU,IV5)201004-201401

DK.VIOLET M.M.,9AF

main87915-28070-B2iZRR7#..ZS..CBU201305-201401

87919CGUIDE, OUTER MIRROR WIRE, RH

main87919-28010iZRR7#..CBU,IV5201004-201401

87940MIRROR ASSY, OUTER REAR VIEW, LH

main87940-28B30iZRR7#..G,V200706-200902

main87940-28B31supersedes 87940-28B10iZRR7#..G,V201004-201401

main87940-28B20iZRR70..CBU,IV5;ZRR75..07S..HTWC..CBU;ZRR75..(05S,08S)..(CBU,IV5)200706-200902

main87940-28B21iZRR70..CBU,IV5;ZRR75..07S..HTWC..CBU;ZRR75..(05S,08S)..(CBU,IV5)200903-201004

87945COVER, OUTER MIRROR, LH

main87945-28060-A1iZRR7#..CBU,IV5201004-201401

WHITE PEARL CS.,070

sub87945-42100

main87945-28060-B0iZRR7#..CBU,IV5201004-201401

SILVER ME.,1F7

sub87945-42100

main87945-28060-B2iZRR7#..NOAH..(CBU,IV5)200706-201004

GRAY ME.,1G3

sub87945-42100

main87945-28060-C0iZRR7#..CBU,IV5201004-201401

BLACK,202

sub87945-42100

main87945-28060-D0iZRR7#..(G,V,X)..(CBU,IV5)200706-201004

DK. RED M.M.,3Q3

sub87945-42100

main87945-28060-D2iZRR70..ZS..IV5;ZRR7#..NOAH..X..CBU;ZRR7#..(SI,Z,ZS)..CBU201004-201401

DEEP RED M.M.,3R9

sub87945-42100

main87945-28060-F0iZRR7#..(G,V,X)..(CBU,IV5)201004-201401

SILKY GOLD M.M.,5A4

sub87945-42100

main87945-28060-J0iZRR7#..(G,V,X)..(CBU,IV5)200706-201004

DK.BLUE MC.,8S6

sub87945-42100

main87945-28060-J1iZRR7#..(G,V,X)..(CBU,IV5)200706-201004

LT.BLUE M.M.,8S7

sub87945-42100

main87945-28060-J4iZRR7#..NOAH..(G,X)..(CBU,IV5)201004-201401

LT.BLUE M.M.,8S1

sub87945-42100

main87945-28060-K0iZRR7#..NOAH..08S..X..CBU;ZRR7#..VOXY..(V,X,ZS)..(CBU,IV5)200904-201004

LT.PURPLE M.M.,9AE

sub87945-42100

main87945-28060-K1iZRR7#..VOXY..(CBU,IV5)200706-201004

DK.VIOLET M.M.,9AF

sub87945-42100

main87945-28080iZRR7#..ZS..CBU201110-201210

87945BCOVER, OUTER MIRROR, LH

main87945-28070-A0iZRR7#..CBU,IV5200706-201004

WHITE PEARL CS.,070

main87945-28070-B0iZRR7#..CBU,IV5200706-201004

SILVER ME.,1F7

main87945-28070-B1iZRR7#..NOAH..(CBU,IV5)200706-201004

GRAY ME.,1G3

main87945-28070-C0iZRR7#..CBU,IV5201004-201401

BLACK,202

main87945-28070-D0iZRR7#..(G,V,X)..(CBU,IV5)200706-201004

DK. RED M.M.,3Q3

main87945-28070-D1iZRR70..ZS..IV5;ZRR7#..NOAH..X..CBU;ZRR7#..(SI,Z,ZS)..CBU201004-201401

DEEP RED M.M.,3R9

main87945-28070-F0iZRR7#..(G,V,X)..(CBU,IV5)201004-201401

SILKY GOLD M.M.,5A4

main87945-28070-J0iZRR7#..(G,V,X)..(CBU,IV5)200706-201004

DK.BLUE MC.,8S6

main87945-28070-J1iZRR7#..(G,V,X)..(CBU,IV5)200706-201004

LT.BLUE M.M.,8S7

main87945-28070-J2iZRR7#..NOAH..(G,X)..(CBU,IV5)201004-201401

LT.BLUE M.M.,8S1

main87945-28070-K0iZRR7#..NOAH..08S..X..CBU;ZRR7#..VOXY..(V,X,ZS)..(CBU,IV5)200904-201004

LT.PURPLE M.M.,9AE

main87945-28070-K1iZRR7#..VOXY..(CBU,IV5)200706-201004

DK.VIOLET M.M.,9AF

main87945-28070-B2iZRR7#..ZS..CBU201210-201305

87946RETRACTOR, OUTER MIRROR, RH

main87946-28B20supersedes 87946-28B10iZRR7#..G,V201004-201401

87949GUIDE, OUTER MIRROR WIRE, LH

main87949-28010iZRR7#..CBU,IV5200706-201004

87950MIRROR ASSY, OUTER UNDER REAR VIEW

main87950-28170iZRR7#..(G,TRASX,V,X,YY)..(CBU,IV5)200706-201004

87966RETRACTOR, OUTER MIRROR, LH

main87966-28B30supersedes 87966-28B10iZRR7#..G,V201004-201401

main87966-28B20iZRR70..CBU,IV5;ZRR75..07S..HTWC..CBU;ZRR75..(05S,08S)..(CBU,IV5)200706-201004

87973COVER, OUTER UNDER RR VIEW MIRROR

main87973-28090iZRR7#..(G,TRASX,V,X,YY)..(CBU,IV5)201004-201401

8791728030ESCUTCHEON

main87917-28030

8792928010RETAINER, OUTER REAR VIEW MIRROR, LH

main87929-28010

9017906127

main90179-06127

9167380612

main91673-80612

9415180600

main94151-80600

25 parts on this diagram · 1 diagram in section
