Toyota NOAH/VOXY — METER

0001 1������������ 0002 1����������������

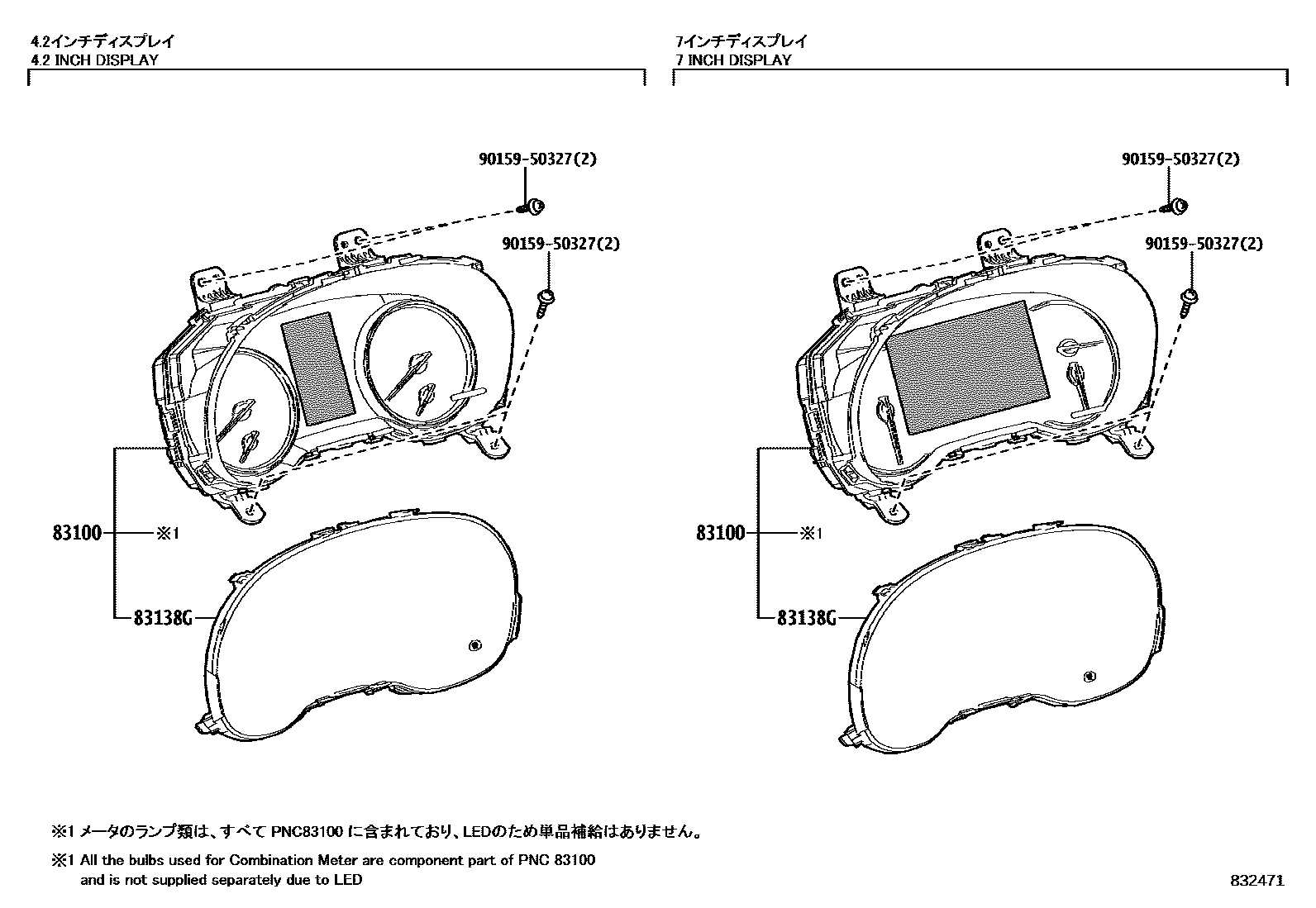

83100METER ASSY, COMBINATION

main83800-28N40iMZRA90,95..NOAH..(SZ,Z)202201-202211

main83800-28N41iMZRA90,95..NOAH..(SZ,Z)202212-202301

main83800-28N42iMZRA90,95..NOAH..(SZ,Z)202302-202310

main83800-28N43iMZRA90,95..NOAH..(SZ,Z)202310-202404

main83800-28N70iZWR9#..NOAH..(G,SG,X)202201-202211

main83800-28N71iZWR9#..NOAH..(G,SG,X)202212-202301

main83800-28N72iZWR9#..NOAH..(G,SG,X)202302-202310

main83800-28N73iZWR9#..NOAH..(G,SG,X)202310-202404

main83800-28N80iZWR90,95..NOAH..(SZ,Z)202201-202211

main83800-28N81iZWR90,95..NOAH..(SZ,Z)202212-202301

main83800-28N82iZWR90,95..NOAH..(SZ,Z)202302-202310

main83800-28N83iZWR90,95..NOAH..(SZ,Z)202310-202404

main83800-28P50iMZRA9#..NOAH..(G,SG,X)202201-202211

main83800-28P51iMZRA9#..NOAH..(G,SG,X)202212-202301

main83800-28P52iMZRA9#..NOAH..(G,SG,X)202302-202310

main83800-28P53iMZRA9#..NOAH..(G,SG,X)202310-202404

main83800-28P80iMZRA90,92,95..VOXY..SG202201-202210

main83800-28P81iMZRA90,92,95..VOXY..SG202211-202301

main83800-28P82iMZRA90,92,95..VOXY..SG202302-202310

main83800-28P83iMZRA90,92,95..VOXY..SG202310-202404

main83800-28P90iMZRA90,95..VOXY..SZ202201-202210

main83800-28P91iMZRA90,95..VOXY..SZ202211-202301

main83800-28P92iMZRA90,95..VOXY..SZ202302-202310

main83800-28P93iMZRA90,95..VOXY..SZ202310-202404

main83800-28Q00iZWR9#..VOXY..SG202201-202210

main83800-28Q01iZWR9#..VOXY..SG202211-202301

main83800-28Q02iZWR9#..VOXY..SG202302-202310

main83800-28Q03iZWR9#..VOXY..SG202310-202404

main83800-28Q10iZWR90,95..VOXY..SZ202201-202210

main83800-28Q11iZWR90,95..VOXY..SZ202211-202301

main83800-28Q12iZWR90,95..VOXY..SZ202302-202310

main83800-28Q13iZWR90,95..VOXY..SZ202310-202404

main83800-28Q20iMZRA92..X;MZRA92..NOAH..07S..SG;MZRA90,95,97..NOAH..(SG,X)..CBU202404-202502

main83800-28Q30iMZRA90,95..NOAH..SZ202404-202502

main83800-28Q40iZWR9#..G202404-202501

main83800-28Q50iZWR90,95..NOAH..SZ202404-202502

main83800-28Q60iMZRA92..VOXY..08S;MZRA95..VOXY..IV5202404-202501

main83800-28Q70iMZRA90,95..VOXY..SZ202404-202502

main83800-28Q80iZWR9#..VOXY..SG202404-202502

main83800-28Q90iZWR90,95..VOXY..SZ202404-202502

83138GGLASS, COMBINATION METER

main83852-28N70iMZRA92..08S..X;MZRA92..07S..(SG,X);MZRA90,95,97,ZWR9#..(SG,X)..CBU202201-202502

main83852-28N80iMZRA90,95,ZWR90,95..Z202201-202501

9015950327

main90159-50327

3 parts on this diagram · 2 diagrams in section
