Toyota NOAH/VOXY — METER

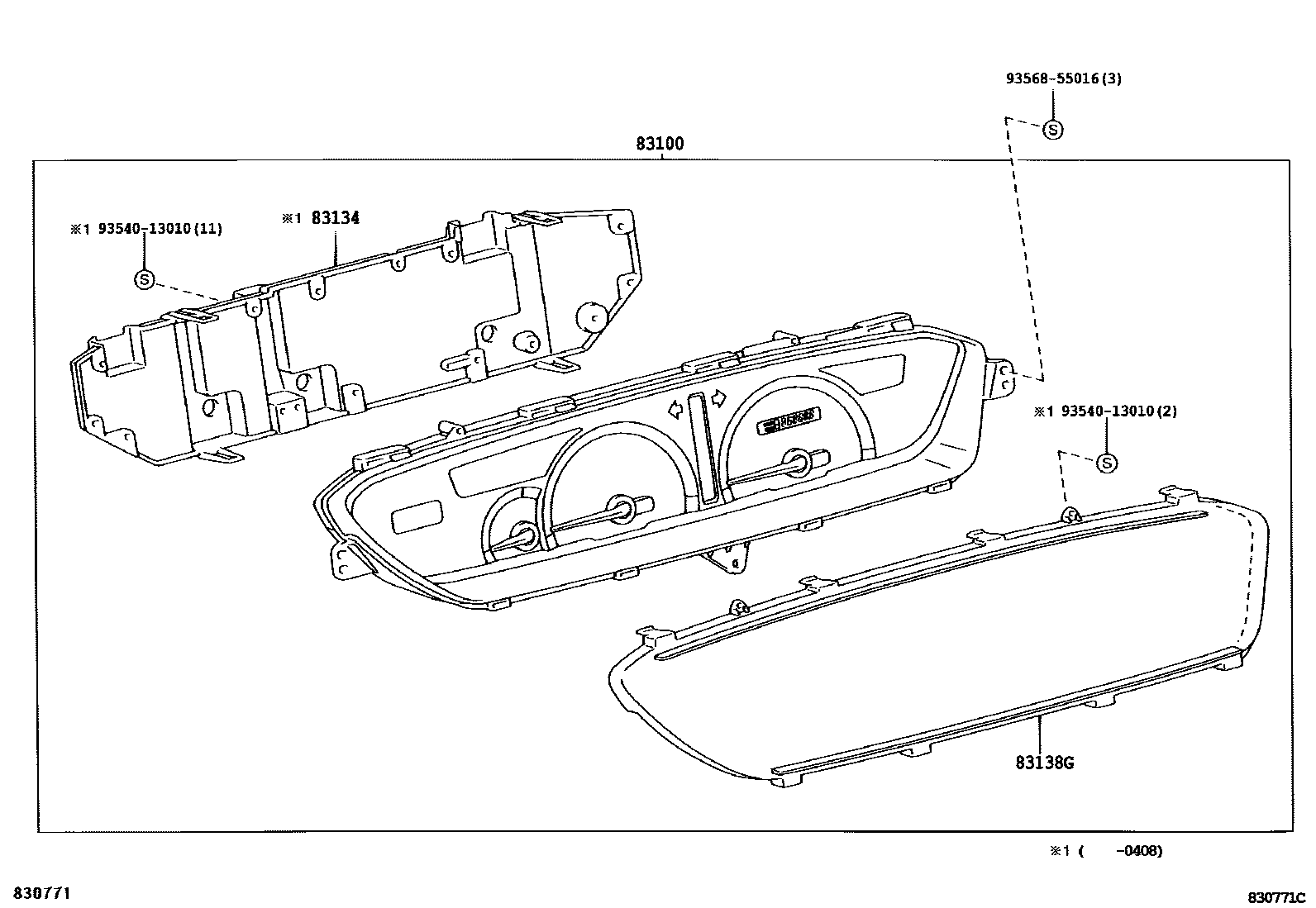

83100METER ASSY, COMBINATION

main83800-28A20iAZR60..TRASX,X,YY200408-200412

main83800-28A21iAZR60..TRASX,X,YY200501-200508

main83800-28A30iAZR65..TRASX,X,YY200408-200412

main83800-28A31iAZR65..TRASX,X,YY200501-200508

main83800-28A40iAZR60..S,Z200408-200412

main83800-28A41iAZR60..S,Z200501-200508

main83800-28A50iAZR65..S,Z200408-200412

main83800-28A51iAZR65..S,Z200501-200508

main83800-28A60iAZR60..X200408-200412

main83800-28A61iAZR60..X200501-200508

main83800-28A70iAZR65..X200408-200412

main83800-28A71iAZR65..X200501-200508

main83800-28B20iAZR60..TRASX,X,YY200508

main83800-28B30iAZR65..TRASX,X,YY200508

main83800-28B40iAZR60..S,Z200508

main83800-28B50iAZR65..S,Z200508

main83800-28B60iAZR60..X200508

main83800-28B70iAZR65..X200508

main83800-2J060iAZR60..X200111-200408

main83800-2J070iAZR65..X200111-200408

main83800-2J080iAZR60..S,Z200111-200408

main83800-2J090iAZR65..NOAH..4HC..X200212-200308

main83800-2J100iAZR60..NOAH..4HC..X200308-200407

main83800-2J110iAZR65..L,V200111-200408

83134COVER, COMBINATION METER, NO.1

main83821-2J110iAZR6#..NOAH..4HC..X200304-200308

83138GGLASS, COMBINATION METER

main83852-28A20iAZR6#200501

main83852-28A60iAZR6#..X200501

main83852-2J070iAZR6#..S,X,Z200111-200408

main83852-2J110iAZR65..NOAH..X200304-200308

9354013010

main93540-13010

9356855016

main93568-55016

5 parts on this diagram · 1 diagram in section
