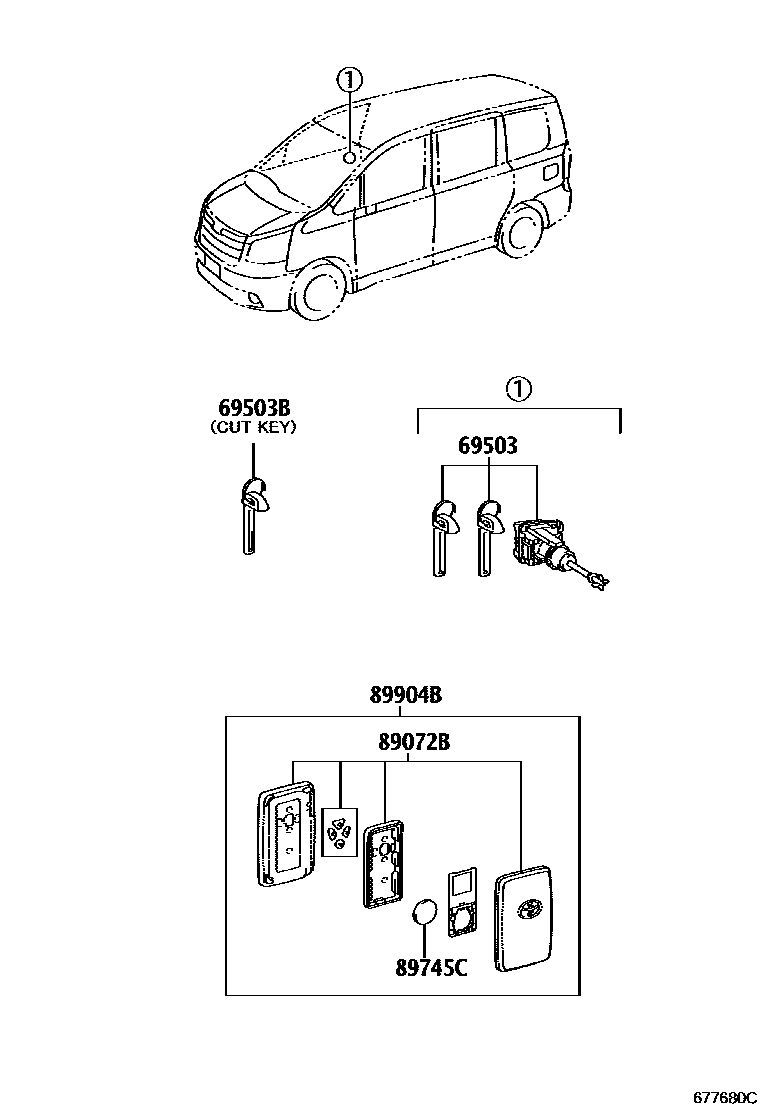

Toyota NOAH/VOXY — LOCK CYLINDER SET
69503CYLINDER SET, LOCK
main69005-28B60supersedes 69005-28B90iZRR7#..(G,SI,V,ZS)..(CBU,IV5); ZRR7#..X..CBU; ZRR7#..X..IV5; ZRR70..X..CBU201004-201401
69503BKEY, CUT
main69515-52110×2iZRR7#..(G,SI,V,ZS)..(CBU,IV5); ZRR7#..(S,X,Z)..CBU; ZRR7#..08S..X..CBU; ZRR7#..HTWC..IV5; ZRR7#..S,Z;ZRR7#..07S..HTWC..CBU200706-201004
89072BHOUSING SET, DOOR CONTROL TRANSMITTER (FOR SMART KEY)
main89072-28570supersedes 89072-28560iZRR7#..(S,X,Z)..CBU; ZRR7#..G,V; ZRR7#..HTWC..IV5; ZRR7#..HTWVM..(CBU,IV5)200709-201004
main89072-58070×2supersedes 89072-58060iZRR7#..(SI,ZS)..(CBU,IV5); ZRR7#..G,V; ZRR7#..X..CBU; ZRR7#..X..IV5201004-201401
main89072-28560iZRR7#..08S..X..CBU; ZRR7#..HTWC..IV5; ZRR7#..HTWVM..(CBU,IV5); ZRR7#..S,Z;ZRR7#..07S..HTWC..CBU200709-201004
89745CBATTERY, TRANSMITTER
main89745-52020iZRR7#..(G,SI,V,ZS)..(CBU,IV5); ZRR7#..(S,X,Z)..CBU; ZRR7#..08S..X..CBU; ZRR7#..HTWC..IV5; ZRR7#..S,Z;ZRR7#..07S..HTWC..CBU200706-201004
89904BTRANSMITTER SUB-ASSY, ELECTRICAL KEY
main89904-28022iZRR7#..(S,X,Z)..CBU; ZRR7#..G,V; ZRR7#..HTWC..IV5; ZRR7#..HTWVM..(CBU,IV5)200906-201004
main89904-28091supersedes 89904-28101iZRR7#..(S,X,Z)..CBU; ZRR7#..G,V; ZRR7#..HTWC..IV5; ZRR7#..HTWVM..(CBU,IV5)200706-200905
main89904-28440×2supersedes 89904-28450iZRR7#..(SI,ZS)..(CBU,IV5); ZRR7#..G,V; ZRR7#..X..CBU; ZRR7#..X..IV5201105-201401
main89904-28032iZRR7#..08S..X..CBU; ZRR7#..HTWC..IV5; ZRR7#..HTWVM..(CBU,IV5); ZRR7#..S,Z;ZRR7#..07S..HTWC..CBU200906-201004
main89904-28101iZRR7#..08S..X..CBU; ZRR7#..HTWC..IV5; ZRR7#..HTWVM..(CBU,IV5); ZRR7#..S,Z;ZRR7#..07S..HTWC..CBU200706-200905
5 parts on this diagram · 3 diagrams in section
LOCK CYLINDER SET for Toyota NOAH/VOXY
This section contains 15 genuine Toyota parts for the LOCK CYLINDER SET system of the Toyota NOAH/VOXY. Key components include: CYLINDER SET, LOCK, KEY, BLANK, KEY, CUT, CYLINDER ASSY, FRONT DOOR LOCK, RH, CYLINDER ASSY, IGNITION SWITCH LOCK.
