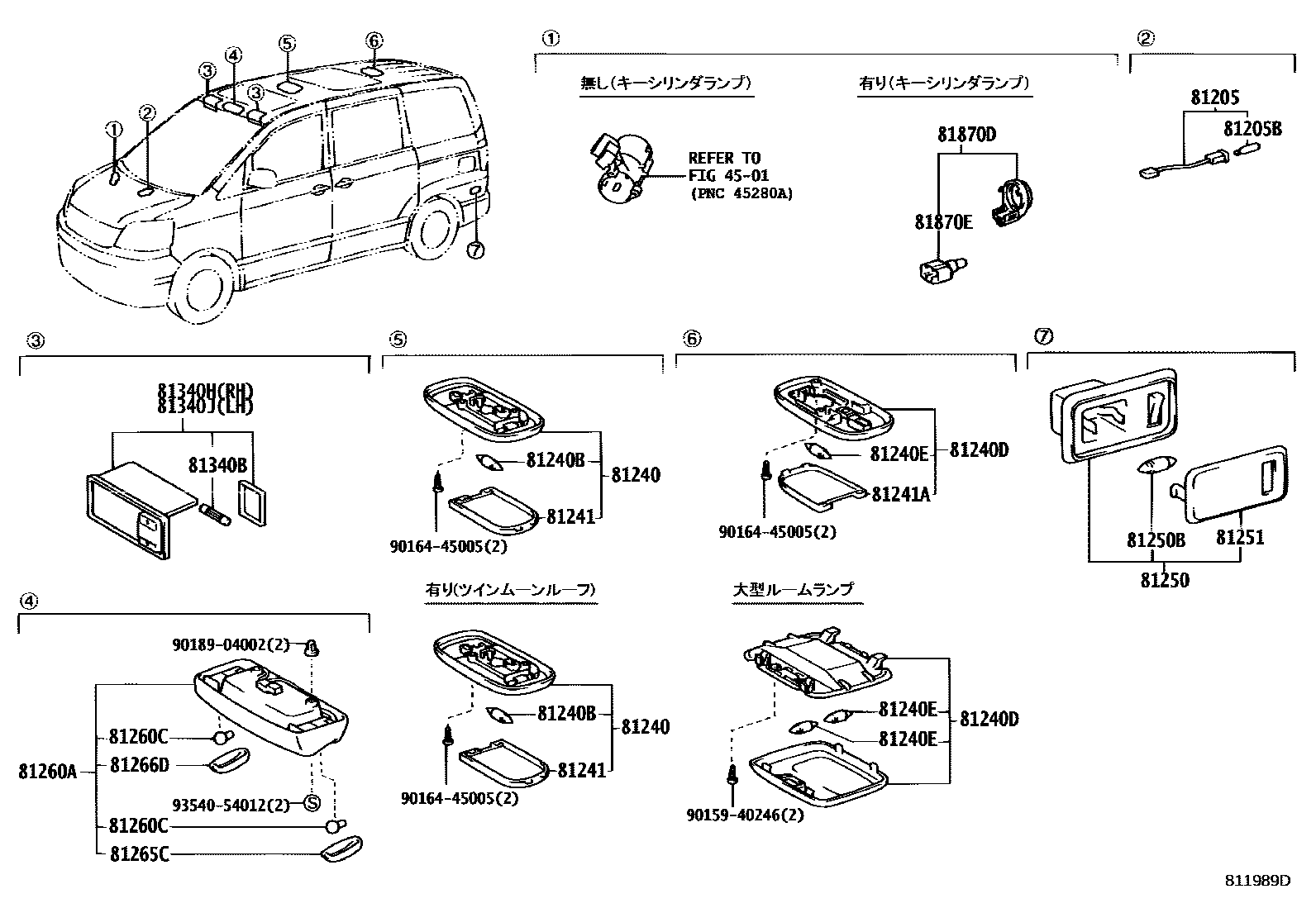

Toyota NOAH/VOXY — INTERIOR LAMP
4501
81205LAMP SUB-ASSY, ASH RECEPTACLE
81205BBULB, ASH RECEPTACLE LAMP
81240BBULB, ROOM LAMP, NO.1
81240EBULB, ROOM LAMP, NO.2
81241ALENS, ROOM LAMP, NO.2
81250LAMP ASSY, ROOM, NO.2
81250BBULB, ROOM LAMP, NO.2
81251LENS, ROOM LAMP, NO.2
81260ALAMP ASSY, MAP
IVORY,TRIM4#
LT.GRAY,TRIM1#
81260CBULB(FOR MAP LAMP)
81265CLENS, MAP LAMP, NO.1
81266DLENS, MAP LAMP, NO.2
81340BBULB (FOR VANITY LAMP)
81340HLAMP ASSY, VANITY, RH
IVORY,TRIM4#
LT.GRAY,TRIM1#
81340JLAMP ASSY, VANITY, LH
IVORY,TRIM4#
LT.GRAY,TRIM1#
81870DLAMP ASSY, KEY CYLINDER
81870EBULB, KEY CYLINDER LAMP
9015940246
main90159-40246
9016445005
main90164-45005
9018904002
main90189-04002
9354054012
main93540-54012
25 parts on this diagram · 2 diagrams in section
