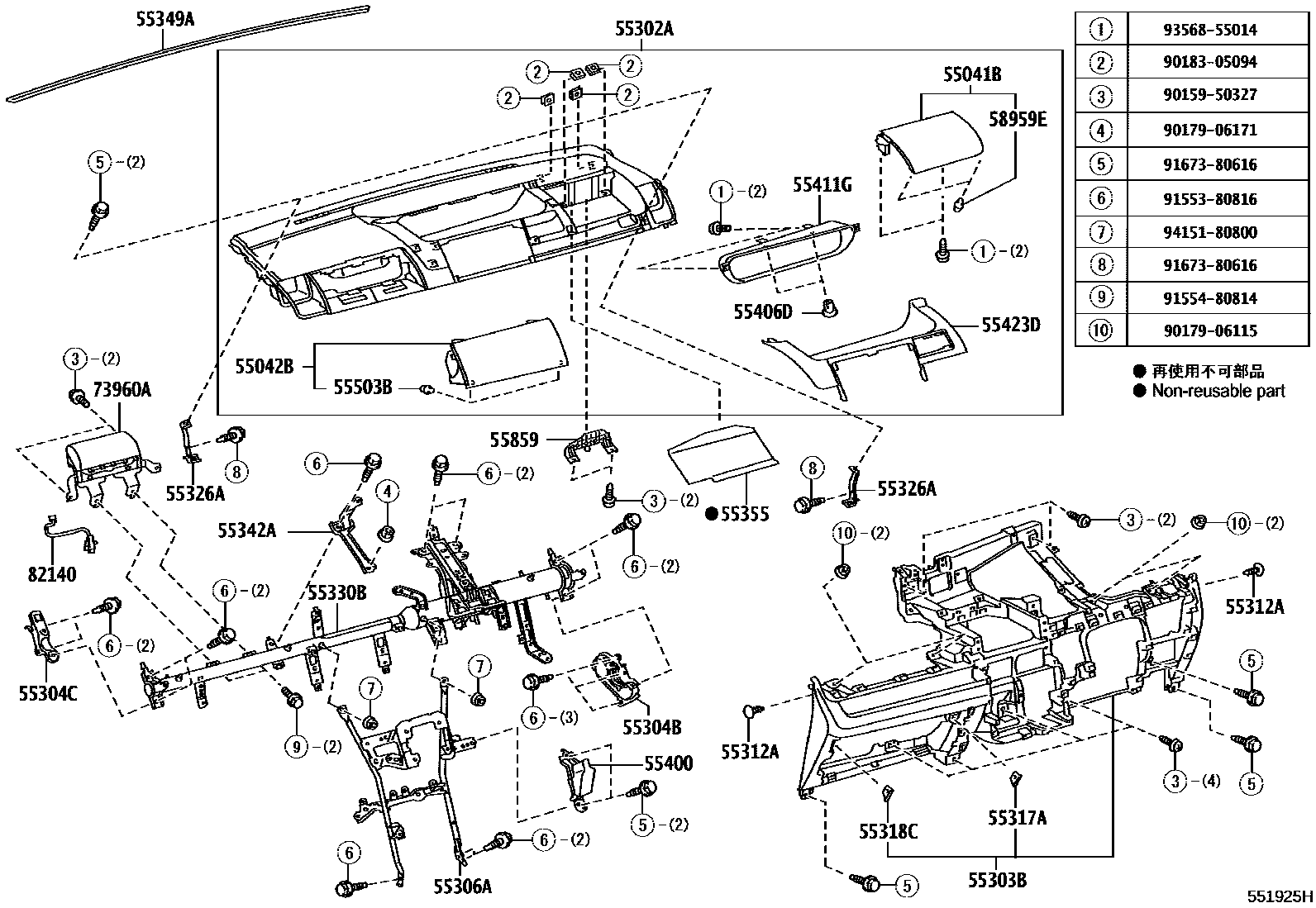

Toyota NOAH/VOXY — INSTRUMENT PANEL & GLOVE COMPARTMENT

55041BDOOR SUB-ASSY, INSTRUMENT PANEL BOX, NO.1

main55041-28070-B0i200706-201004

DK.GRAY,TRIM1#

main55041-28070-C0i201004-201401

BLACK,TRIM2#

main55041-28070-E0i200706-201004

ASH BROWN,TRIM4#

55042BDOOR SUB-ASSY, INSTRUMENT PANEL BOX, NO.2

main55042-28060-B0i200706-200803

DK.GRAY,TRIM1#

main55042-28060-E0i200706-200803

ASH BROWN,TRIM4#

main55042-28070-B0i200803-201004

DK.GRAY,TRIM1#

main55042-28070-C0i201004-201401

BLACK,TRIM2#

main55042-28070-E0i200803-201004

ASH BROWN,TRIM4#

55302APANEL SUB-ASSY, INSTRUMENT, UPPER

main55302-28120-B0i200706-200803

DK.GRAY,TRIM1#

main55302-28120-E0i200706-200803

ASH BROWN,TRIM4#

main55302-28130-B0i200706-200803

DK.GRAY,TRIM1#

main55302-28130-E0i200706-200803

ASH BROWN,TRIM4#

main55302-28160-B0i200803-201004

DK.GRAY,TRIM1#

main55302-28160-C0i201004-201401

BLACK,TRIM2#

main55302-28160-E0i201004-201401

ASH BROWN,TRIM4#

main55302-28170-B0i200803-201004

DK.GRAY,TRIM1#

main55302-28170-C0i201004-201401

BLACK,TRIM2#

main55302-28170-E0i200803-201004

ASH BROWN,TRIM4#

main55302-28140-B0i200706-200803

main55302-28140-E0i200706-200803

main55302-28180-B0i200803-201004

main55302-28180-C0i201004-201401

main55302-28180-E0i200806-201004

55303BPANEL SUB-ASSY, INSTRUMENT, LOWER

main55303-28050-B0i200706-201004

MD.GRAY,TRIM1#

main55303-28050-C0i201004-201401

BLACK,TRIM2#

main55303-28050-E0i201004-201401

GREGE,TRIM4#

55304BBRACKET SUB-ASSY, INSTRUMENT PANEL BRACKET MOUNTING

main55304-28050i201004-201401

55304CBRACKET SUB-ASSY, INSTRUMENT PANEL BRACKET MOUNTING

main55304-28060i200706-201004

55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1

main55306-28210i200706-201004

55312ACLIP, INSTRUMENT PANEL

main90467-05161-C0×2i201004-201401

BLACK

55317APANEL, INSTRUMENT SIDE, RH

main55317-28080-B0i200706-201004

MD.GRAY,TRIM1#

main55317-28080-C0i201004-201401

BLACK,TRIM2#

main55317-28080-E0i201004-201401

GREGE,TRIM4#

55318CPANEL, INSTRUMENT SIDE, LH

main55318-28070-B0i200706-201004

MD.GRAY,TRIM1#

main55318-28070-C0i201004-201401

BLACK,TRIM2#

main55318-28070-E0i200706-201004

GREGE,TRIM4#

55326ASTAY, INSTRUMENT PANEL, NO.1

main55326-28150×2i201004-201401

55330BREINFORCEMENT ASSY, INSTRUMENT PANEL

main55330-28210i200706-201004

55342ABRACE, INSTRUMENT PANEL TO COWL, NO.2

main55342-28080i200706-201004

55349ACUSHION, INSTRUMENT PANEL

main55349-28240i201004-201401

55355CUSHION, INSTRUMENT PANEL, NO.1

main55355-28150i201004-201401

55400PAD ASSY, INSTRUMENT PANEL SAFETY

main55400-28030i201004-201401

55406DCLIP(FOR PANEL, INSTRUMENT CLUSTER FINISH)

main90467-11091×2i200706-201004

55411GPANEL, INSTRUMENT CLUSTER FINISH, NO.1

main55411-28240i201004-201401

55423DPLATE, METER HOOD SET

main55423-28030-B0i200706-201004

DK.GRAY,TRIM1#

main55423-28030-C0i201004-201401

BLACK,TRIM2#

main55423-28030-E0i200706-201004

ASH BROWN,TRIM4#

55503BCUSHION(FOR GLOVE COMPARTMENT)

main58959-60060×2i201004-201401

55859PLATE, FRONT VENTILATOR

main55859-28010i201004-201208

58959ECUSHION, CONSOLE COMPARTMENT DOOR

main58959-60060×2i200706-201004

73960AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR

main73960-28090i201004-201401

82140WIRE ASSY, INSTRUMENT PANEL

main82143-28010i201004-201401

9015950327

main90159-50327

9017906115

main90179-06115

9017906171

main90179-06171

9018305094

main90183-05094

9155380816

main91553-80816

9155480814

main91554-80814

9167380616

main91673-80616

9356855014

main93568-55014

9415180800

main94151-80800

33 parts on this diagram · 4 diagrams in section

INSTRUMENT PANEL & GLOVE COMPARTMENT for Toyota NOAH/VOXY

This section contains 73 genuine Toyota parts for the INSTRUMENT PANEL & GLOVE COMPARTMENT system of the Toyota NOAH/VOXY. Key components include: DOOR SUB-ASSY, INSTRUMENT PANEL BOX, NO.1, DOOR SUB-ASSY, INSTRUMENT PANEL BOX, NO.2, STOPPER SUB-ASSY, GLOVE COMPARTMENT DOOR, PANEL SUB-ASSY, INSTRUMENT, UPPER, PANEL SUB-ASSY, INSTRUMENT, LOWER.
