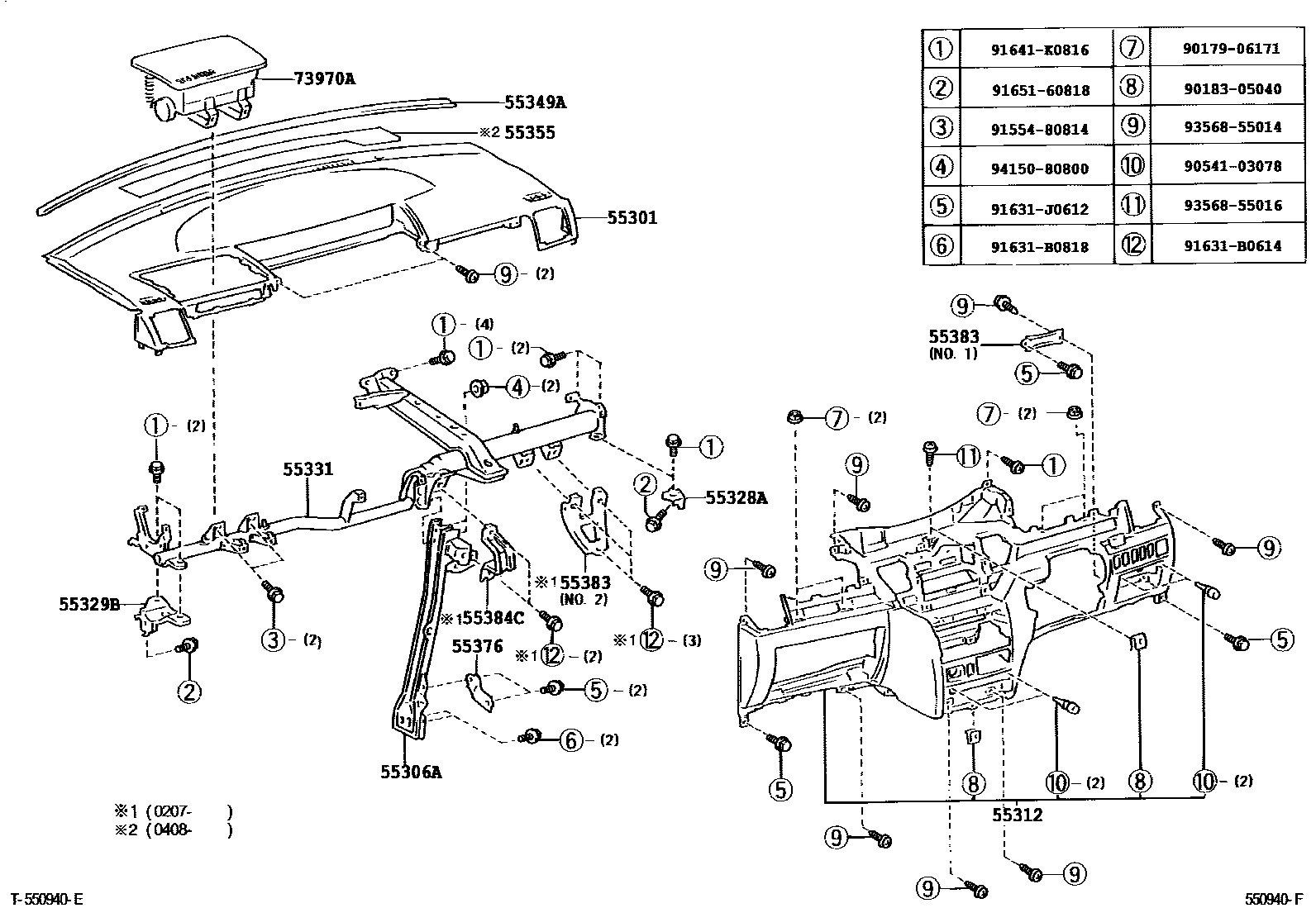

Toyota NOAH/VOXY — INSTRUMENT PANEL & GLOVE COMPARTMENT
55301PANEL SUB-ASSY, INSTRUMENT
DK.GRAY,TRIM1#,4#
DK.GRAY,TRIM1#
55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1
55312PANEL, INSTRUMENT, LOWER
55328ASTAY, INSTRUMENT PANEL, NO.3
55329BSTAY, INSTRUMENT PANEL, NO.4
55331REINFORCEMENT, INSTRUMENT PANEL
55355CUSHION, INSTRUMENT PANEL, NO.1
55376BRACKET, INSTRUMENT PANEL MOUNTING, NO.1
55383BRACKET, FINISH PANEL MOUNTING, NO.3
N0.1
55384CBRACKET, FINISH PANEL MOUNTING, NO.4
73970AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER
sub73970-28081
9017906171
main90179-06171
9018305040
main90183-05040
9054103078
main90541-03078
9155480814
main91554-80814
91631B0614
main91631-B0614
91631B0818
main91631-B0818
91631J0612
main91631-J0612
91641K0816
main91641-K0816
9165160818
main91651-60818
9356855014
main93568-55014
9356855016
main93568-55016
9415080800
main94150-80800
24 parts on this diagram · 2 diagrams in section
