Toyota NOAH/VOXY — IGNITION COIL & SPARK PLUG / GLOW PLUG

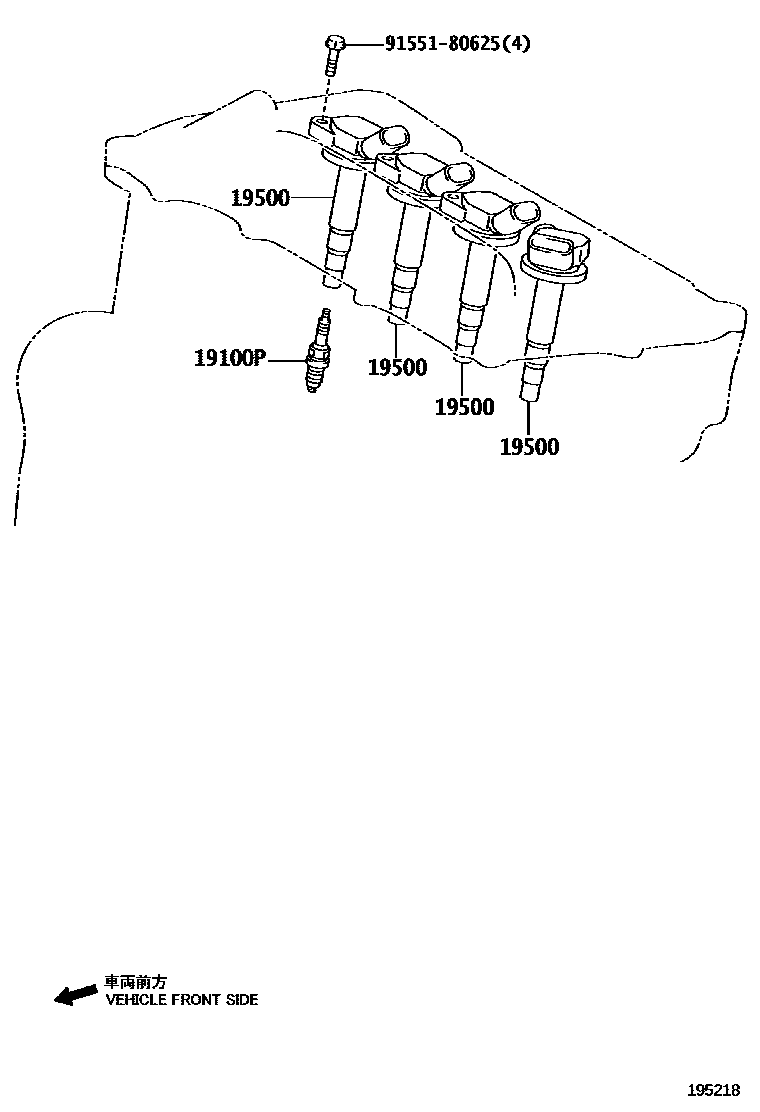

Parts diagram
19100PPLUG, SPARK
main90919-01253i200706-201401
sub90919-01275
19500COIL ASSY, IGNITION
main90919-02252i200706-201007
sub90919-02258
main90919-02258i201007-201401
9155180625
main91551-80625

3 parts on this diagram · 1 diagram in section
