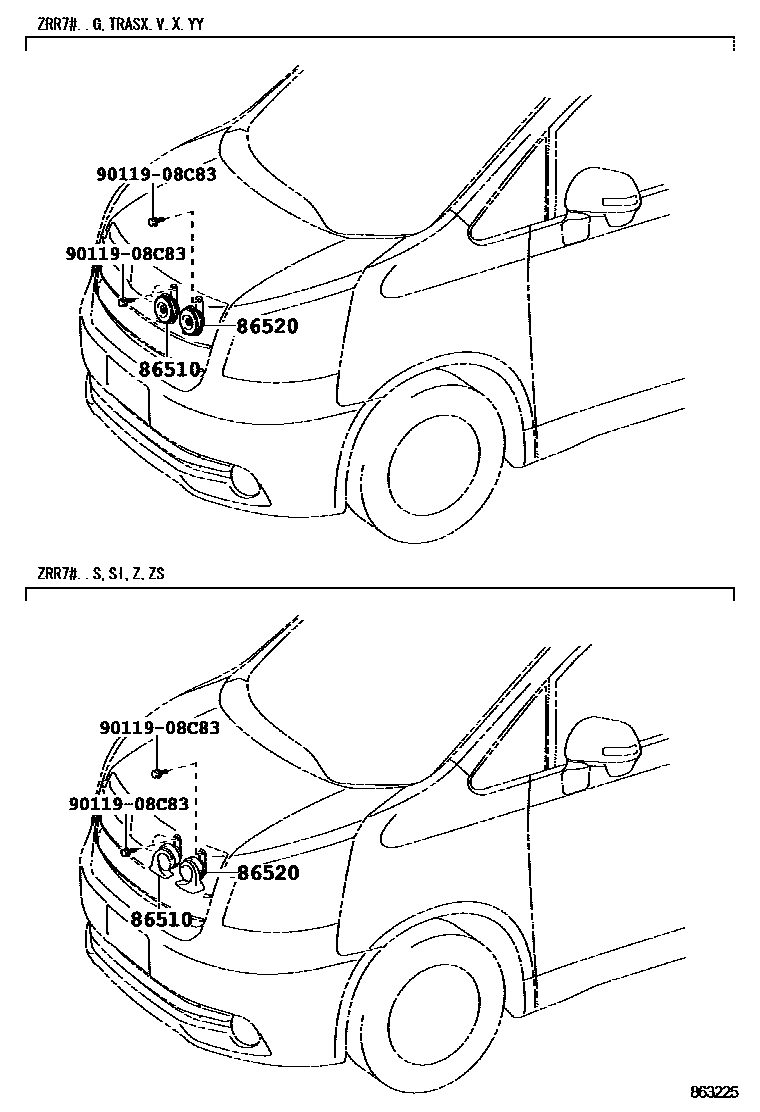

Toyota NOAH/VOXY — HORN

0001 1 0002 1G'S OR G'S-VERSION EDGE

86510HORN ASSY, HIGH PITCHED

main86510-28130iZRR7#..(G,TRASX,V,X,YY)..(CBU,IV5)200706-201401

main86510-30700iZRR7#..(S,SI,Z,ZS)..(CBU,IV5)200706-201401

86520HORN ASSY, LOW PITCHED

main86520-28180iZRR7#..(G,TRASX,V,X,YY)..(CBU,IV5)200706-201401

main86520-30610iZRR7#..(S,SI,Z,ZS)..(CBU,IV5)200706-201401

9011908C83

main90119-08C83

3 parts on this diagram · 2 diagrams in section
