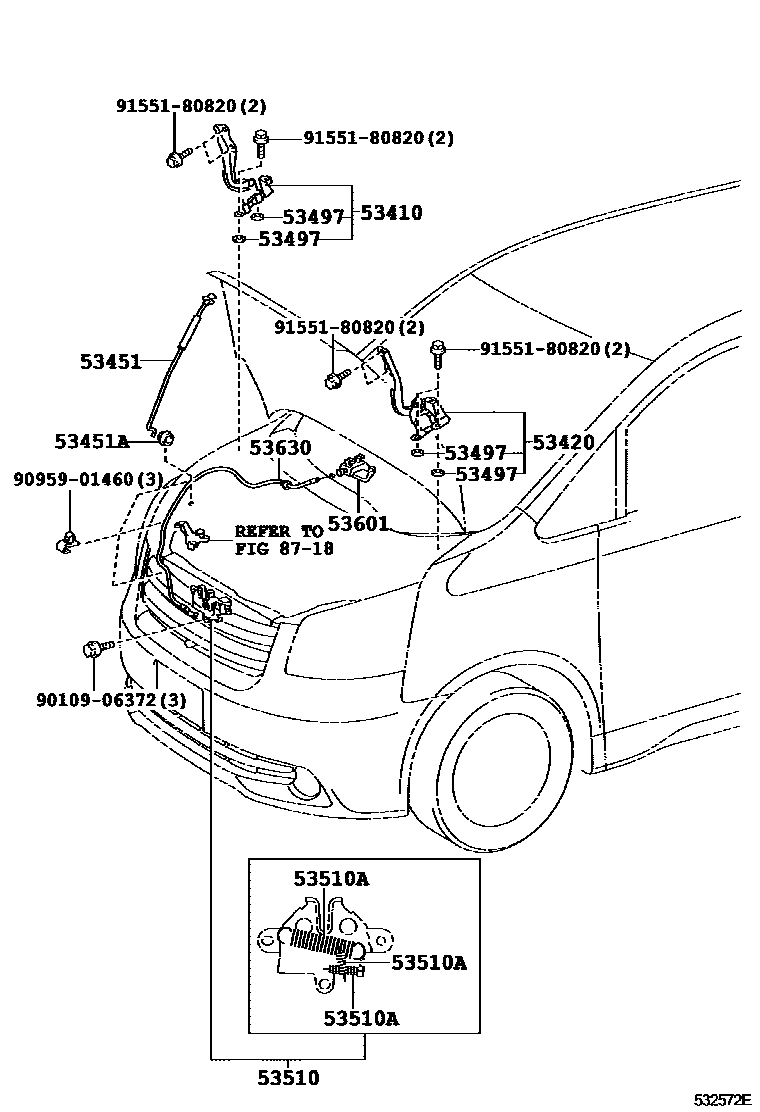

Toyota NOAH/VOXY — HOOD LOCK & HINGE

53410HINGE ASSY, HOOD, RH

main53410-28070i201004-201401

53420HINGE ASSY, HOOD, LH

main53420-28070i200706-201004

53451ROD, HOOD SUPPORT

main53440-28020i200706-201004

53451AGROMMET(FOR HOOD SUPPORT ROD)

main90480-15025i200706-201004

53497PAD, HOOD HINGE, NO.1

main53497-42010×4i200706-201004

53510LOCK ASSY, HOOD

main53510-28140i200706-201004

main53510-28150i201004-201401

53510ASPRING, TENSION(FOR HOOD LOCK)

main90506-09055i200706-201004

main90506-12063i200706-201004

main90506-18067i200706-201004

53601LEVER SUB-ASSY, HOOD LOCK CONTROL

main53601-52010-B6i200706-201004

MD.GRAY,TRIM1#

main53601-52010-E4i201004-201401

GREGE,TRIM4#

53630CABLE ASSY, HOOD LOCK CONTROL

main53630-28130i201004-201401

8718HEATING & AIR CONDITIONING - COOLER PIPING

→ Go to FIG 87-18

9010906372

main90109-06372

9095901460

main90959-01460

9155180820

main91551-80820

13 parts on this diagram · 1 diagram in section

HOOD LOCK & HINGE for Toyota NOAH/VOXY

This section contains 13 genuine Toyota parts for the HOOD LOCK & HINGE system of the Toyota NOAH/VOXY. Key components include: HINGE ASSY, HOOD, RH, HINGE ASSY, HOOD, LH, ROD, HOOD SUPPORT, GROMMET(FOR HOOD SUPPORT ROD), PAD, HOOD HINGE, NO.1.
