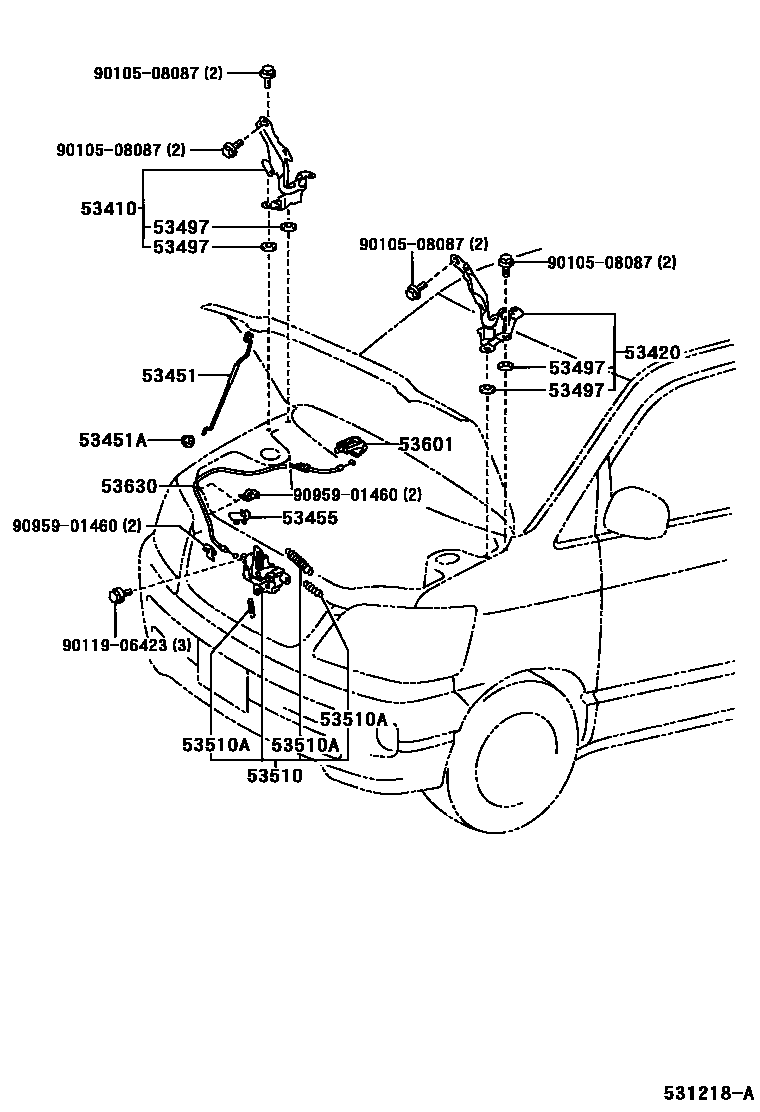

Toyota NOAH/VOXY — HOOD LOCK & HINGE

53410HINGE ASSY, HOOD, RH

main53410-28050i200111-200408

53420HINGE ASSY, HOOD, LH

main53420-28050i200408

53451ROD, HOOD SUPPORT

main53451-28080i200111-200408

53451AGROMMET(FOR HOOD SUPPORT ROD)

main90480-15025i200605

main90480-15028i200111-200408

53455CLAMP, HOOD SUPPORT ROD

main53455-28020i200111-200408

53497PAD, HOOD HINGE, NO.1

main53497-42010×4i200111-200408

53510LOCK ASSY, HOOD

main53510-28080i200111-200408

53510ASPRING, TENSION(FOR HOOD LOCK)

main90506-09052i200111-200408

main90506-12063i200111-200408

main90506-16077i200111-200408

53601LEVER SUB-ASSY, HOOD LOCK CONTROL

main53601-52010-B2i200111-200408

STONE,TRIM1#

main53601-52010-B7i200408-200706

GRAY,TRIM1#

main53601-52010-E0i200111-200408

FAWN,TRIM4#

53630CABLE ASSY, HOOD LOCK CONTROL

main53630-28100i200111-200408

9010508087

main90105-08087

9011906423

main90119-06423

9095901460

main90959-01460

13 parts on this diagram · 1 diagram in section

HOOD LOCK & HINGE for Toyota NOAH/VOXY

This section contains 13 genuine Toyota parts for the HOOD LOCK & HINGE system of the Toyota NOAH/VOXY. Key components include: HINGE ASSY, HOOD, RH, HINGE ASSY, HOOD, LH, ROD, HOOD SUPPORT, GROMMET(FOR HOOD SUPPORT ROD), CLAMP, HOOD SUPPORT ROD.
