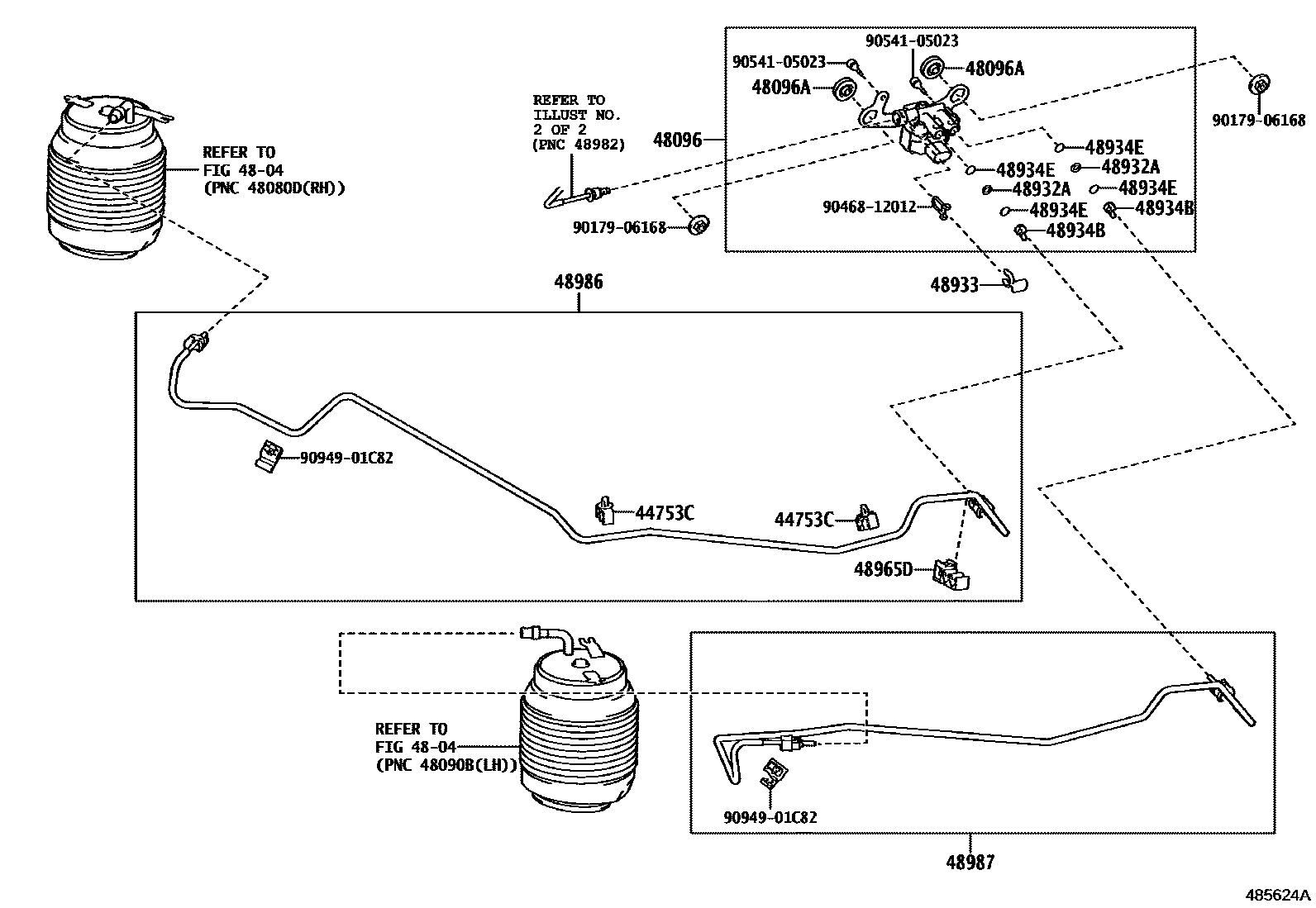

Toyota NOAH/VOXY — HEIGHT CONTROL (AUTO-LEVELER)
44753CCLAMP, HEIGHT CONTROL TUBE, NO.2
4804REAR SPRING & SHOCK ABSORBER
48096VALVE SUB-ASSY, HEIGHT CONTROL, NO.2
48096ABUSH, NO.2(FOR HEIGHT CONTROL VALVE)
48932APLATE, HEIGHT CONTROL TUBE
48933HOLDER, AIR CONNECTOR CLIP
48934BCONNECTOR, HEIGHT CONTROL TUBE
48934ERING, O(FOR HEIGHT CONTROL TUBE CONNECTOR)
48965DCLAMP, HEIGHT CONTROL TUBE, NO.2
48986TUBE, HEIGHT CONTROL, NO.6
48987TUBE, HEIGHT CONTROL, NO.7
9017906168
main90179-06168
9046812012
main90468-12012
9054105023
main90541-05023
9094901C82
main90949-01C82
15 parts on this diagram · 2 diagrams in section
HEIGHT CONTROL (AUTO-LEVELER) for Toyota NOAH/VOXY
This section contains 38 genuine Toyota parts for the HEIGHT CONTROL (AUTO-LEVELER) system of the Toyota NOAH/VOXY. Key components include: CLAMP, HEIGHT CONTROL TUBE, NO.1, CLAMP, HEIGHT CONTROL TUBE, NO.2, REAR SPRING & SHOCK ABSORBER, VALVE SUB-ASSY, HEIGHT CONTROL, NO.2, BUSH, NO.2(FOR HEIGHT CONTROL VALVE).
