Toyota NOAH/VOXY — HEIGHT CONTROL (AUTO-LEVELER)
44753BCLAMP, HEIGHT CONTROL TUBE, NO.1
44753CCLAMP, HEIGHT CONTROL TUBE, NO.2
4804REAR SPRING & SHOCK ABSORBER
48595ACLAMP, ACTUATOR HARNESS, RH
48943HOSE, HEIGHT CONTROL, NO.1
48945BRACKET, HEIGHT CONTROL HOSE, RH
48946BRACKET, HEIGHT CONTROL HOSE, LH
48971ABRACKET, HEIGHT CONTROL PUMP, NO.1
48972ABRACKET, HEIGHT CONTROL PUMP, NO.2
48981TUBE, HEIGHT CONTROL, NO.1
48982TUBE, HEIGHT CONTROL, NO.2
48983TUBE, HEIGHT CONTROL, NO.3
48984TUBE, HEIGHT CONTROL, NO.4
48985TUBE, HEIGHT CONTROL, NO.5
48986TUBE, HEIGHT CONTROL, NO.6
48991UNION, HEIGHT CONTROL TUBE, NO.1
49125AGROMMET, REAR SUSPENSION CONTROL, NO.2
C9610APUMP ASSY, KNEELING DOWN
C9672HOSE, POWER LIFT MOTOR, NO.2
9046312014
main90463-12014
9046808032
main90468-08032
9046808035
main90468-08035
9046808040
main90468-08040
91621G0818
main91621-G0818
93383A6018
main93383-A6018
9613251000
main96132-51000

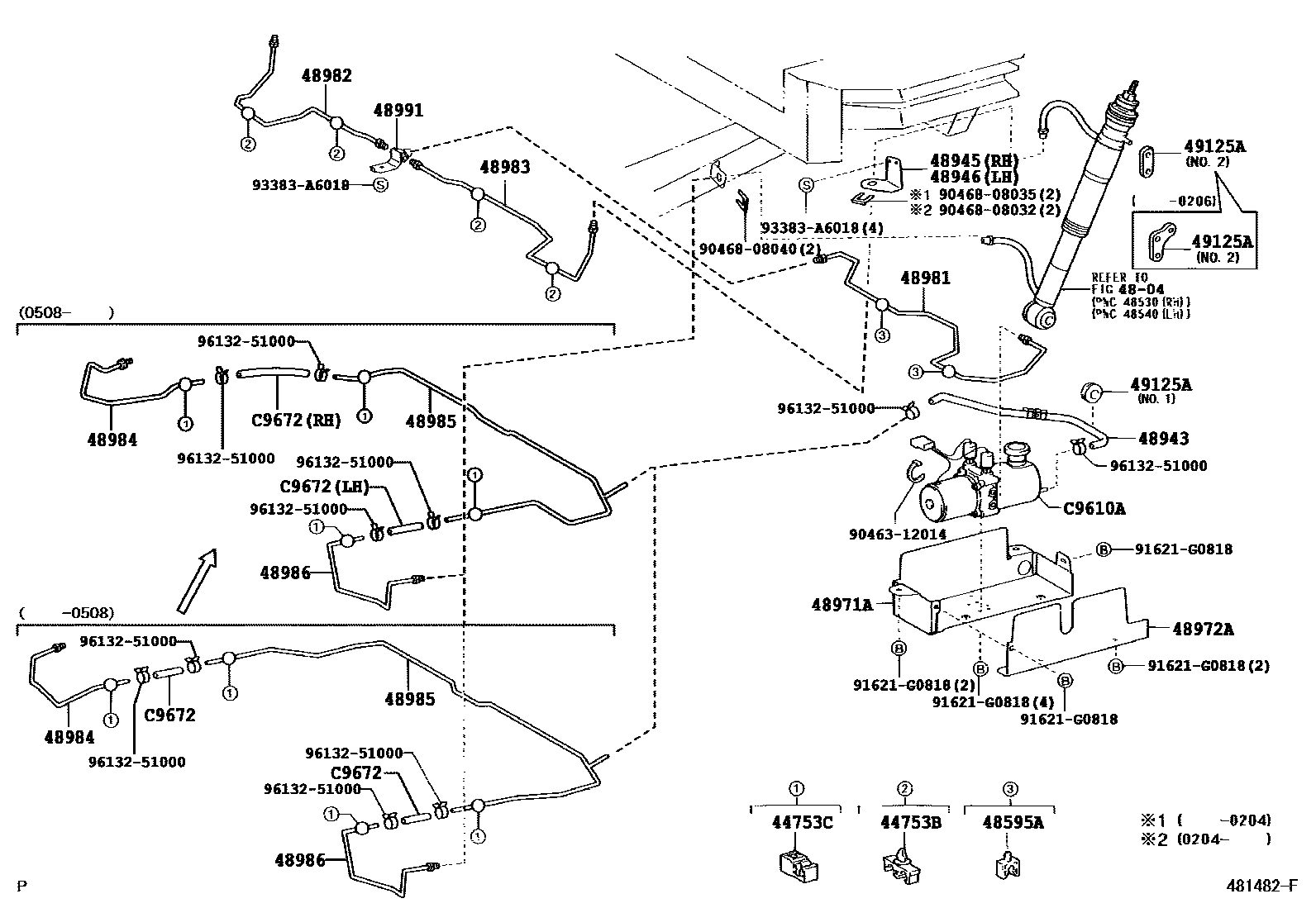

26 parts on this diagram · 1 diagram in section
HEIGHT CONTROL (AUTO-LEVELER) for Toyota NOAH/VOXY
This section contains 26 genuine Toyota parts for the HEIGHT CONTROL (AUTO-LEVELER) system of the Toyota NOAH/VOXY. Key components include: CLAMP, HEIGHT CONTROL TUBE, NO.1, CLAMP, HEIGHT CONTROL TUBE, NO.2, REAR SPRING & SHOCK ABSORBER, CLAMP, ACTUATOR HARNESS, RH, HOSE, HEIGHT CONTROL, NO.1.
