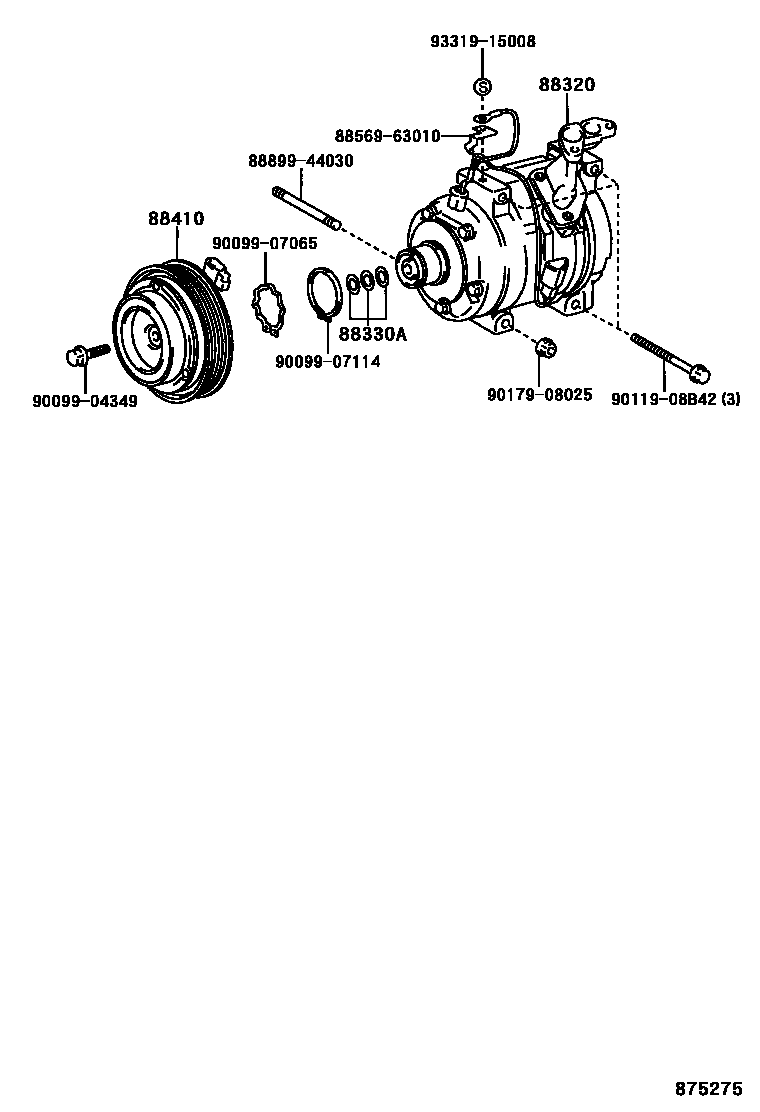

Toyota NOAH/VOXY — HEATING & AIR CONDITIONING - COMPRESSOR
88320COMPRESSOR ASSY, COOLER
88330AWASHER (FOR MAGNET CLUTCH)
88410CLUTCH ASSY, MAGNET
8856963010CLAMP (FOR COOLER RELAY)
main88569-63010
8889944030COVER, EVAPORATOR
main88899-44030
9009904349
main90099-04349
9009907065
main90099-07065
9009907114
main90099-07114
9011908B42
main90119-08B42
9017908025
main90179-08025
9331915008
main93319-15008
11 parts on this diagram · 2 diagrams in section
HEATING & AIR CONDITIONING - COMPRESSOR for Toyota NOAH/VOXY
This section contains 13 genuine Toyota parts for the HEATING & AIR CONDITIONING - COMPRESSOR system of the Toyota NOAH/VOXY. Key components include: COMPRESSOR ASSY, W/PULLEY, COMPRESSOR ASSY, COOLER, WASHER (FOR MAGNET CLUTCH), CLUTCH ASSY, MAGNET, CLAMP (FOR COOLER RELAY).
