Toyota NOAH/VOXY — HEADLAMP
81107COMPUTER SUB-ASSY, HEADLAMP LIGHT CONTROL, RH
main81107-21150iZRR7#..HTWC..IV5;ZRR7#..07S..HTWC..CBU;ZRR7#..(G,S,SI,V,Z,ZS)..(CBU,IV5); ZRR7#..NOAH..(05S,08S)..(X,YY)..CBU; ZRR7#..VOXY..(05S,08S)..(TRASX,X)..CBU200706-201004
main81107-60F10iZRR7#..NOAH..(S,X,YY)..CBU; ZRR7#..NOAH..X..IV5;ZRR7#..(G,SI)..(CBU,IV5); ZRR70..S201206-201401
main81107-75020iZRR7#..NOAH..(S,X,YY)..CBU; ZRR7#..NOAH..X..IV5;ZRR7#..(G,SI)..(CBU,IV5)201004-201205
81108COMPUTER SUB-ASSY, HEADLAMP LIGHT CONTROL, LH
main81107-21150iZRR7#..HTWC..IV5;ZRR7#..07S..HTWC..CBU;ZRR7#..(G,S,SI,V,Z,ZS)..(CBU,IV5); ZRR7#..NOAH..(05S,08S)..(X,YY)..CBU; ZRR7#..VOXY..(05S,08S)..(TRASX,X)..CBU200706-201004
main81107-60F10iZRR7#..NOAH..(S,X,YY)..CBU; ZRR7#..NOAH..X..IV5;ZRR7#..(G,SI)..(CBU,IV5); ZRR70..S201206-201401
main81107-75020iZRR7#..NOAH..(S,X,YY)..CBU; ZRR7#..NOAH..X..IV5;ZRR7#..(G,SI)..(CBU,IV5)201004-201205
81110BBULB(FOR HEADLAMP, NO.1)
81110DBULB(FOR HEADLAMP, NO.2)
81110LBULB, DISCHARGE HEADLAMP
main90981-20023×2iZRR7#..HTWC..IV5;ZRR7#..07S..HTWC..CBU;ZRR7#..(G,S,SI,V,Z,ZS)..(CBU,IV5); ZRR7#..NOAH..(05S,08S)..(X,YY)..CBU; ZRR7#..VOXY..(05S,08S)..(TRASX,X)..CBU200706-200902
main90981-20024×2iZRR7#..HTWC..IV5;ZRR7#..07S..HTWC..CBU;ZRR7#..(G,S,SI,V,Z,ZS)..(CBU,IV5); ZRR7#..NOAH..(05S,08S)..(X,YY)..CBU; ZRR7#..VOXY..(05S,08S)..(TRASX,X)..CBU200902-201004
81125ACORD, HEADLAMP, RH
main81125-28B50supersedes 81125-28B40iZRR7#..NOAH..(05S,08S)..(X,YY)..CBU; ZRR7#..NOAH..HTWC..IV5;ZRR7#..(G,S,SI)..(CBU,IV5);ZRR7#..NOAH..07S..HTWC..CBU200706-201004
main81125-28B80supersedes 81125-28B70iZRR7#..VOXY..(05S,08S)..(TRASX,X)..CBU; ZRR7#..VOXY..HTWC..IV5;ZRR7#..(V,Z,ZS)..(CBU,IV5);ZRR7#..VOXY..07S..HTWC..CBU200706-201004
main81125-28E70supersedes 81125-28E50iZRR7#..NOAH..(S,X,YY)..CBU; ZRR7#..NOAH..X..IV5;ZRR7#..(G,SI)..(CBU,IV5)201004-201401
main81125-28E80supersedes 81125-28E60iZRR7#..VOXY..(TRASX,X,Z)..CBU; ZRR7#..VOXY..X..IV5;ZRR7#..(V,ZS)..(CBU,IV5)201004-201401
81134GASKET, HEADLAMP
main90075-23002iZRR7#..NOAH..(S,X,YY)..CBU; ZRR7#..VOXY..(TRASX,X,Z)..CBU; ZRR7#..X..IV5;ZRR7#..(G,SI,V,ZS)..(CBU,IV5)201004-201401
main90075-68007iZRR7#..HTWC..IV5;ZRR7#..07S..HTWC..CBU;ZRR7#..(G,S,SI,V,Z,ZS)..(CBU,IV5); ZRR7#..NOAH..(05S,08S)..(X,YY)..CBU; ZRR7#..VOXY..(05S,08S)..(TRASX,X)..CBU200706-201004
81135UNIT ASSY, HEADLAMP, RH
main81145-28B50iZRR7#..G;ZRR7#..NOAH..HTWC..IV5;ZRR7#..NOAH..07S..HTWC..CBU; ZRR7#..NOAH..(05S,08S)..(X,YY)..CBU200706-200802
main81145-28B51supersedes 81130-28B41iZRR7#..G;ZRR7#..NOAH..HTWC..IV5;ZRR7#..NOAH..07S..HTWC..CBU; ZRR7#..NOAH..(05S,08S)..(X,YY)..CBU200802-201004
main81145-28B80iZRR7#..V;ZRR7#..VOXY..HTWC..IV5;ZRR7#..VOXY..07S..HTWC..CBU; ZRR7#..VOXY..(05S,08S)..(TRASX,X)..CBU200706-200802
main81145-28B81supersedes 81130-28B71iZRR7#..V;ZRR7#..VOXY..HTWC..IV5;ZRR7#..VOXY..07S..HTWC..CBU; ZRR7#..VOXY..(05S,08S)..(TRASX,X)..CBU200802-201004
81139COVER, HEADLAMP SOCKET
81144COVER, HEADLAMP, NO.1
81165CORD, HEADLAMP, LH
main81125-28B80supersedes 81125-28B70iZRR7#..VOXY..(05S,08S)..(TRASX,X)..CBU; ZRR7#..VOXY..HTWC..IV5;ZRR7#..(V,Z,ZS)..(CBU,IV5);ZRR7#..VOXY..07S..HTWC..CBU200706-201004
main81165-28B50supersedes 81165-28B40iZRR7#..NOAH..(05S,08S)..(X,YY)..CBU; ZRR7#..NOAH..HTWC..IV5;ZRR7#..(G,S,SI)..(CBU,IV5);ZRR7#..NOAH..07S..HTWC..CBU200706-201004
main81165-28E70supersedes 81125-28E50iZRR7#..NOAH..(S,X,YY)..CBU; ZRR7#..NOAH..X..IV5;ZRR7#..(G,SI)..(CBU,IV5)201004-201401
main81165-28E80supersedes 81165-28E60iZRR7#..VOXY..(TRASX,X,Z)..CBU; ZRR7#..VOXY..X..IV5;ZRR7#..(V,ZS)..(CBU,IV5)201004-201401
81175UNIT ASSY, HEADLAMP, LH
main81185-28B50iZRR7#..G;ZRR7#..NOAH..HTWC..IV5;ZRR7#..NOAH..07S..HTWC..CBU; ZRR7#..NOAH..(05S,08S)..(X,YY)..CBU200706-200802
main81185-28B51supersedes 81170-28B41iZRR7#..G;ZRR7#..NOAH..HTWC..IV5;ZRR7#..NOAH..07S..HTWC..CBU; ZRR7#..NOAH..(05S,08S)..(X,YY)..CBU200802-201004
main81185-28B80iZRR7#..V;ZRR7#..VOXY..HTWC..IV5;ZRR7#..VOXY..07S..HTWC..CBU; ZRR7#..VOXY..(05S,08S)..(TRASX,X)..CBU200706-200802
main81185-28B81supersedes 81170-28B71iZRR7#..V;ZRR7#..VOXY..HTWC..IV5;ZRR7#..VOXY..07S..HTWC..CBU; ZRR7#..VOXY..(05S,08S)..(TRASX,X)..CBU200802-201004
81193RETAINER, HEADLAMP PROTECTOR, UPPER RH
81193BRETAINER, HEADLAMP PROTECTOR, UPPER RH NO.2
81194RETAINER, HEADLAMP PROTECTOR, UPPER LH
81194BRETAINER, HEADLAMP PROTECTOR, UPPER LH NO.2
81510CBULB (FOR FRONT TURN SIGNAL LAMP)
81515BSOCKET, FRONT TURN SIGNAL LAMP
81610FBULB(FOR CLEARANCE LAMP)
81615DSOCKET, CLEARANCE LAMP
8202WIRING & CLAMP
85661MOTOR, HEADLAMP LEVELING, RH
main85661-12020iZRR7#..NOAH..(S,X,YY)..CBU; ZRR7#..VOXY..(TRASX,X,Z)..CBU; ZRR7#..X..IV5;ZRR7#..(G,SI,V,ZS)..(CBU,IV5)201004-201401
85662MOTOR, HEADLAMP LEVELING, LH
main85661-12020iZRR7#..HTWC..IV5;ZRR7#..07S..HTWC..CBU;ZRR7#..(G,S,SI,V,Z,ZS)..(CBU,IV5); ZRR7#..NOAH..(05S,08S)..(X,YY)..CBU; ZRR7#..VOXY..(05S,08S)..(TRASX,X)..CBU200706-201004
85669PACKING, HEADLAMP LEVELING MOTOR BASE
9007502056
main90075-02056
9010506298
main90105-06298
9015950346
main90159-50346
9018905142
main90189-05142

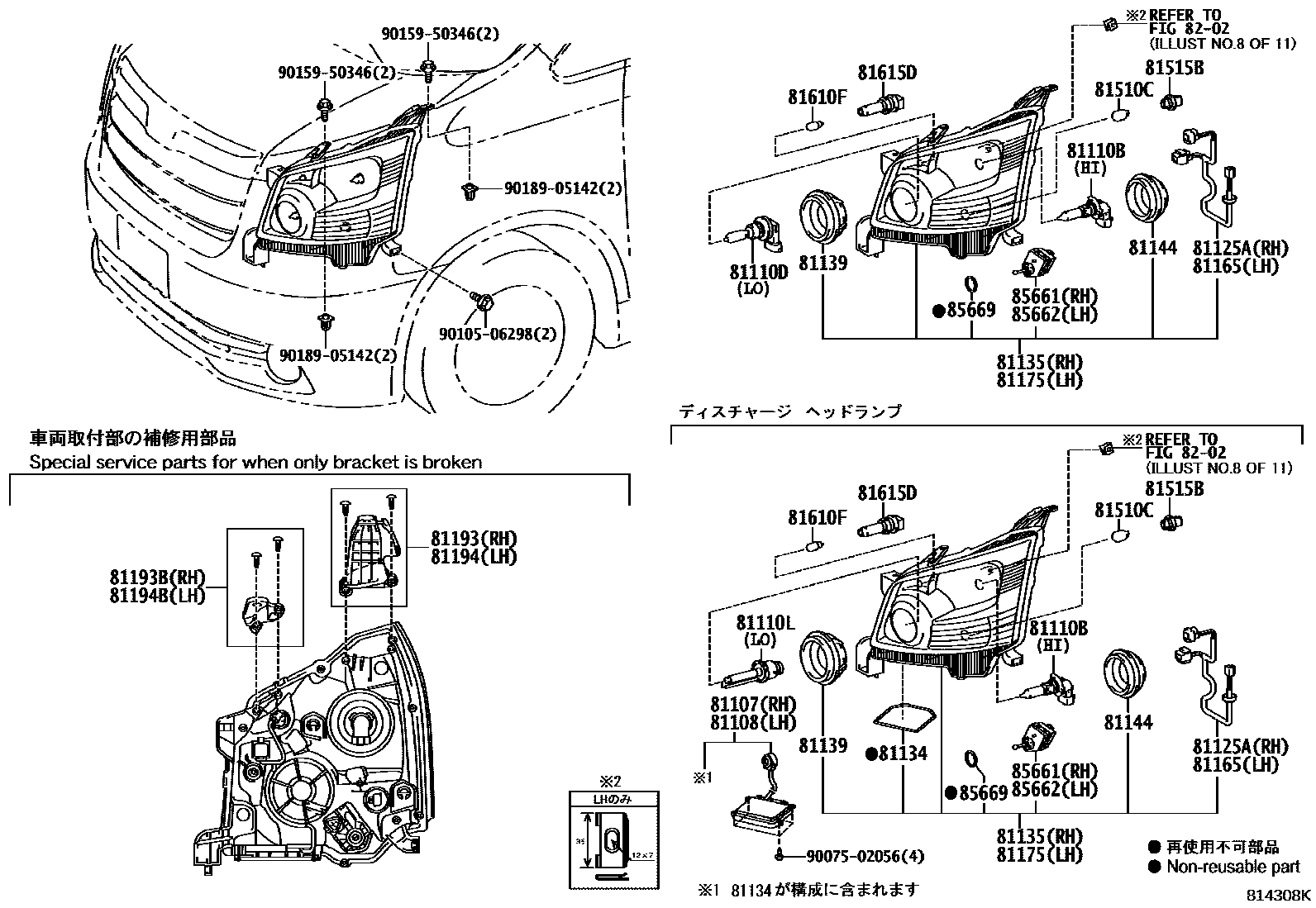

28 parts on this diagram · 6 diagrams in section
HEADLAMP for Toyota NOAH/VOXY
This section contains 35 genuine Toyota parts for the HEADLAMP system of the Toyota NOAH/VOXY. Key components include: COVER, HEADLAMP, RH, COVER, HEADLAMP, LH, COMPUTER SUB-ASSY, HEADLAMP LIGHT CONTROL, RH, COMPUTER SUB-ASSY, HEADLAMP LIGHT CONTROL, LH, BULB(FOR HEADLAMP, NO.1).
