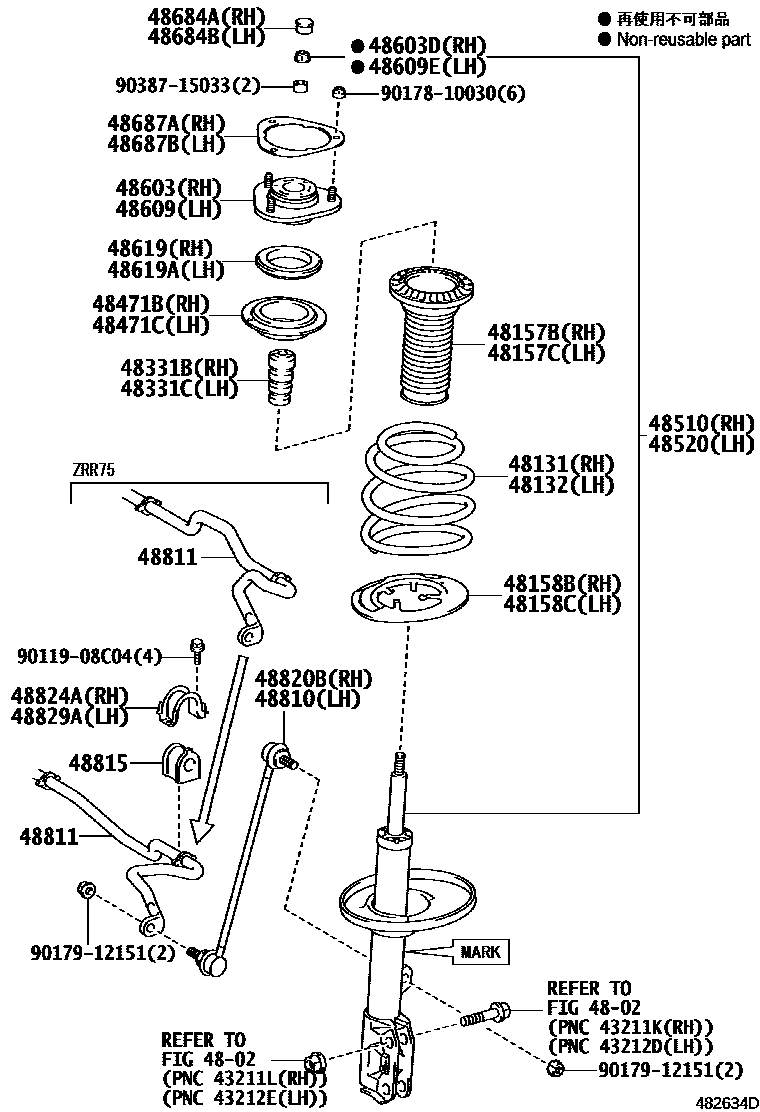

Toyota NOAH/VOXY — FRONT SPRING & SHOCK ABSORBER

4802

48131SPRING, FRONT COIL, RH

main48131-28B11iZRR70..(G,TRASX,V,X,YY)..(CBU,IV5)200706-200810

main48131-28B12iZRR70..CBU,IV5200811-201002

main48131-28B31iZRR75..(G,TRASX,V,X,YY)..(CBU,IV5)200706-200810

main48131-28B32iZRR75..(G,TRASX,V,X,YY)..(CBU,IV5)200811-201002

main48131-28B41iZRR75..(S,SI,Z,ZS)..CBU200706-200810

main48131-28B42iZRR75..(S,SI,Z,ZS)..CBU201004-201401

main48131-28C20iZRR70..CBU,IV5201004-201401

main48131-28C30iZRR75..(G,TRASX,V,X,YY)..(CBU,IV5)201004-201401

main48131-WY011iZRR70..(S,SI,Z,ZS)..CBU201006-201401

48132SPRING, FRONT COIL, LH

main48131-28B11iZRR70..(S,SI,Z,ZS)..(CBU,IV5)200706-200811

main48131-28B12iZRR70..CBU,IV5200811-201002

main48131-28B31iZRR75..(G,TRASX,V,X,YY)..(CBU,IV5)200706-200810

main48131-28B32iZRR75..(G,TRASX,V,X,YY)..(CBU,IV5)200811-201002

main48131-28B41iZRR75..(S,SI,Z,ZS)..CBU200706-200810

main48131-28B42iZRR75..(S,SI,Z,ZS)..CBU200811-201004

main48131-28C20iZRR70..CBU,IV5201004-201401

main48131-28C30iZRR75..(G,TRASX,V,X,YY)..(CBU,IV5)201002-201004

main48131-WY011iZRR70..(S,SI,Z,ZS)..CBU201006-201401

48157BINSULATOR, FRONT COIL SPRING, UPPER RH

main48157-28030iZRR7#..CBU,IV5200706-201004

48157CINSULATOR, FRONT COIL SPRING, UPPER LH

main48157-28030iZRR7#..CBU,IV5200706-201004

48158BINSULATOR, FRONT COIL SPRING, LOWER RH

main48158-42010iZRR7#..CBU,IV5200706-201004

48158CINSULATOR, FRONT COIL SPRING, LOWER LH

main48158-42010iZRR7#..CBU,IV5200706-201004

48331BBUMPER, FRONT SPRING, RH

main48331-42030iZRR7#..CBU,IV5200706-201004

sub48331-28090

main48331-WY010iZRR70..(S,SI,Z,ZS)..CBU201006-201401

48331CBUMPER, FRONT SPRING, LH

main48331-42030iZRR7#..CBU,IV5200706-201004

sub48331-28090

main48331-WY010iZRR70..(S,SI,Z,ZS)..CBU201006-201401

48471BSEAT, FRONT COIL SPRING, UPPER RH

main48471-42010iZRR7#..CBU,IV5201004-201401

48471CSEAT, FRONT COIL SPRING, UPPER LH

main48471-42010iZRR7#..CBU,IV5200706-201004

48510ABSORBER ASSY, SHOCK, FRONT RH

main48510-80368iZRR70..(G,TRASX,V,X,YY)..(CBU,IV5)200706-201004

main48510-80369iZRR70..(S,SI,Z,ZS)..(CBU,IV5)200706-201004

main48510-80370iZRR75..(G,TRASX,V,X,YY)..(CBU,IV5)200706-201004

main48510-80371iZRR75..(S,SI,Z,ZS)..CBU200706-201004

main48510-80521iZRR70..(G,TRASX,V,X,YY)..HTWVM201004-201401

main48510-80522iZRR70..(S,SI,Z,ZS)..(CBU,IV5)201004-201401

main48510-80523iZRR75..(G,TRASX,V,X,YY)..(CBU,IV5)201004-201401

main48510-80524iZRR75..(S,SI,Z,ZS)..CBU201004-201401

main48510-W9005iZRR70..(S,SI,Z,ZS)..CBU201006-201401

main48510-W9015iZRR70..(SI,ZS)..CBU201006-201401

48520ABSORBER ASSY, SHOCK, FRONT LH

main48520-80131iZRR70..(G,TRASX,V,X,YY)..(CBU,IV5)200706-201004

main48520-80132iZRR70..(S,SI,Z,ZS)..(CBU,IV5)200706-201004

main48520-80133iZRR75..(G,TRASX,V,X,YY)..(CBU,IV5)200706-201004

main48520-80134iZRR75..(S,SI,Z,ZS)..CBU200706-201004

main48520-80251iZRR70..(G,TRASX,V,X,YY)..HTWVM201004-201401

main48520-80252iZRR70..(S,SI,Z,ZS)..(CBU,IV5)201004-201401

main48520-80253iZRR75..(G,TRASX,V,X,YY)..(CBU,IV5)201004-201401

main48520-80254iZRR75..(S,SI,Z,ZS)..CBU201004-201401

main48520-W9005iZRR70..(S,SI,Z,ZS)..CBU201006-201401

main48520-W9015iZRR70..(SI,ZS)..CBU201006-201401

48603SUPPORT SUB-ASSY, FRONT SUSPENSION, RH

main48609-28050iZRR7#..CBU,IV5200706-201004

48603DNUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER RH)

main90177-14005iZRR7#..CBU,IV5200706-201004

48609SUPPORT SUB-ASSY, FRONT SUSPENSION, LH

main48609-28050iZRR7#..CBU,IV5200706-201004

48609ENUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER LH)

main90177-14005iZRR7#..CBU,IV5201004-201401

48619BEARING, STRUT MOUNTING, RH

main48619-28010iZRR7#..CBU,IV5200706-201004

48619ABEARING, STRUT MOUNTING, LH

main48619-28010iZRR7#..CBU,IV5200706-201004

48684ACOVER, FRONT SUSPENSION SUPPORT DUST, RH

main48684-42010iZRR7#..CBU,IV5200706-201004

48684BCOVER, FRONT SUSPENSION SUPPORT DUST, LH

main48684-42010iZRR7#..CBU,IV5201004-201401

48687APLATE, FRONT SUSPENSION SUPPORT, RH

main48687-28020iZRR7#..CBU,IV5200706-201004

48687BPLATE, FRONT SUSPENSION SUPPORT, LH

main48687-28020iZRR7#..CBU,IV5200706-201004

48810LINK ASSY, FRONT STABILIZER, LH

main48820-44020iZRR70..CBU,IV5200706-201004

main48820-47010iZRR75..CBU,IV5201004-201401

48811BAR, STABILIZER, FRONT

main48811-28260iZRR75..CBU,IV5200706-201004

main48811-44050iZRR70..CBU,IV5200706-201004

48815BUSH, FRONT STABILIZER BAR, NO.1

main48815-28170×2iZRR7#..CBU,IV5200706-201004

sub48815-28171

48820BLINK ASSY, FRONT STABILIZER, RH

main48820-44020iZRR70..CBU,IV5200706-201004

main48820-47010iZRR75..CBU,IV5200706-201004

48824ABRACKET, FRONT STABILIZER, NO.1 RH

main48824-44041iZRR7#..CBU,IV5200706-201004

48829ABRACKET, FRONT STABILIZER, NO.1 LH

main48824-44041iZRR7#..CBU,IV5200706-201004

9011908C04

main90119-08C04

9017810030

main90178-10030

9017912151

main90179-12151

9038715033

main90387-15033

33 parts on this diagram · 1 diagram in section
