Toyota NOAH/VOXY — FRONT FLOOR PANEL & FRONT FLOOR MEMBER

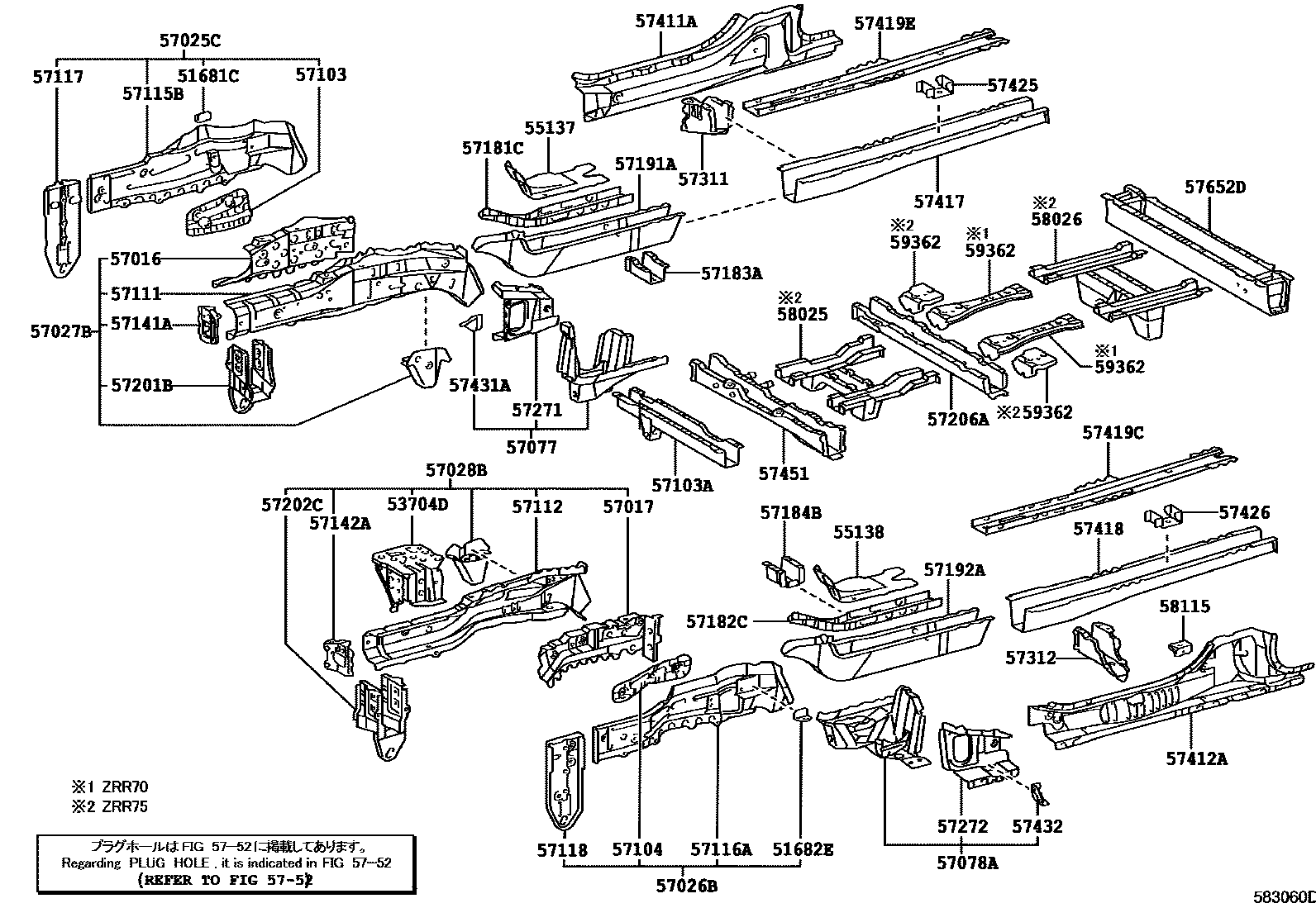

Parts diagram
51681CPLATE, FRONT BRAKE FLEXIBLE HOSE SUPPORT, RH
main51681-32050i201004-201401
51682EPLATE, FRONT BRAKE FLEXIBLE HOSE SUPPORT, LH
main51682-32040i200706-201004
53704DSUPPORT SUB-ASSY, BATTERY, LH
main53704-28090i200706-200912
main53704-28091i201001-201004
55137BRACE, DASH TO FRAME, RH
main55137-28070i200706-201004
55138BRACE, DASH TO FRAME, LH
main55138-28070i200706-201004
57016REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, RH
main57016-28100i200706-201004
57017REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, LH
main57017-44040i200706-201004
57025CMEMBER SUB-ASSY, FRONT SIDE, OUTER RH
main57025-28040i200706-201004
57026BMEMBER SUB-ASSY, FRONT SIDE, OUTER LH
main57026-28060i200706-201004
57027BMEMBER SUB-ASSY, FRONT SIDE, INNER RH
main57027-28020i200706-201004
57028BMEMBER SUB-ASSY, FRONT SIDE, INNER LH
main57028-28020i200706-201004
57077BOX SUB-ASSY, TORQUE, FRONT RH
main57077-28020i200706-201004
57078ABOX SUB-ASSY, TORQUE, FRONT LH
main57078-28020i200706-201004
57103MEMBER SUB-ASSY, FRONT SIDE, NO.2 RH
main57113-44040i201004-201401
57103ACROSSMENBER SUB-ASSY, FLOOR, NO.3
main57103-28030i200706-201004
main57103-28040i200706-201004
57104MEMBER SUB-ASSY, FRONT SIDE, NO.2 LH
main57114-44040i200706-201004
57111MEMBER, FRONT SIDE, RH
main57111-28260i200706-201004
57112MEMBER, FRONT SIDE, LH
main57112-44051i201004-201401
57115BPLATE, FRONT SIDE MEMBER, NO.1 RH
main57115-44020i200706-201004
57116APLATE, FRONT SIDE MEMBER, OUTER LH
main57116-44020i200706-201004
57117PLATE SUB-ASSY, FRONT SIDE MEMBER, FRONT RH
main57117-28070i200706-201004
57118PLATE SUB-ASSY, FRONT SIDE MEMBER, FRONT LH
main57118-28040i200706-201004
57141ASUPPORT, FRONT BUMPER ARM, RH
main57141-28010i200706-201004
57142ASUPPORT, FRONT BUMPER ARM, LH
main57142-28010i200706-201004
57181CREINFORCEMENT, FRONT SIDE MEMBER, REAR NO.1 RH
main57181-28030i200706-201004
57182CREINFORCEMENT, FRONT SIDE MEMBER, REAR NO.1 LH
main57182-28020i200706-201004
57183AEXTENSION, FRONT CROSSMEMBER, RR RH
main57183-28040i200706-201004
57184BEXTENSION, FRONT CROSSMEMBER, RR LH
main57184-28020i200706-201004
57191AMEMBER, FRONT SIDE, INNER REAR RH
main57191-28030i200706-201004
57192AMEMBER, FRONT SIDE, INNER REAR LH
main57192-28020i200706-201004
57201BEXTENSION SUB-ASSY, FRONT SIDE MEMBER, RH
main57201-44010i201004-201401
57202CEXTENSION SUB-ASSY, FRONT SIDE MEMBER, LH
main57202-44010i200706-201004
57206AMEMBER SUB-ASSY, FRONT FLOOR CROSS, NO.2
main57206-28170i201004-201401
57271EXTENSION, STEERING GEAR BOX SUPPORT MEMBER, RH
main57271-28040i200706-201004
57272EXTENSION, STEERING GEAR BOX SUPORT MEMBER, LH
main57272-28070i200706-201004
57311OUTRIGGER, NO.1 RH
main57301-28130i200706-201004
57312OUTRIGGER, NO.1 LH
main57312-28090i200706-201004
57411AMEMBER, FLOOR SIDE, INNER RH
main57411-28040i200706-201004
57412AMEMBER, FLOOR SIDE, INNER LH
main57412-28040i201004-201401
main57412-28050i200706-201004
57417REINFORCEMENT, FRONT FLOOR UNDER, RH
main57417-28030i200706-201004
57418REINFORCEMENT, FRONT FLOOR UNDER, LH
main57418-28030i201004-201401
main57418-28050i200706-201004
57419CREINFORCEMENT, FRONT FLOOR UNDER, LH NO.2
main57419-28010i200706-201004
57419EREINFORCEMENT, FRONT FLOOR UNDER, RH NO.2
main57419-28010i200706-201004
57425REINFORCEMENT, FRONT FLOOR, NO.2 RH
main57423-28040i200706-201004
57426REINFORCEMENT, FRONT FLOOR, NO.2 LH
main57423-28040i201004-201401
57431APATCH, STEP PANEL UNDER, RH
main57431-28050i200706-201004
57432PATCH, STEP PANEL UNDER, LH
main57432-28030i200706-201004
57451MEMBER, FRONT FLOOR CROSS
main57408-28150i201004-201401
main57408-28160i200706-201004
5752
57652DMEMBER, REAR FLOOR CROSS, NO.1
main57605-28370i200706-201004
58025REINFORCEMENT SUB-ASSY, DRIVE SHAFT CENTER SUPPORT
main58025-28020i200706-201004
58026REINFORCE SUB-ASSY, DRIVE SHAFT CENTER SUPPORT, REAR
main58026-28020i201004-201401
58115REINFORCEMENT, FRONT FLOOR PANEL, FRONT
main58338-28040i201004-201401
59362RETAINER, REAR SEAT, NO.1
main59301-28010×2i200706-201004
main59302-28010×2i200706-201004
