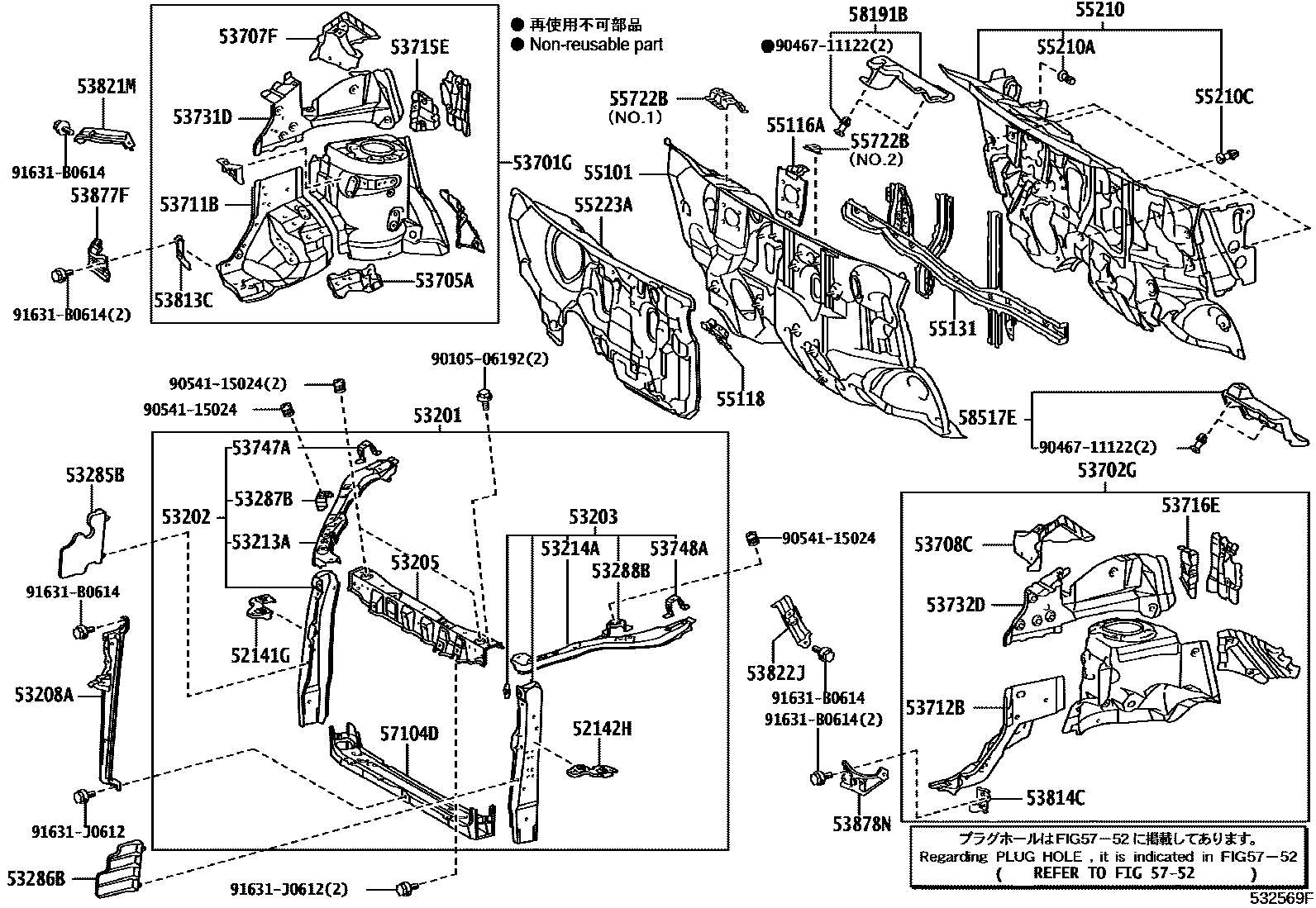

Toyota NOAH/VOXY — FRONT FENDER APRON & DASH PANEL
52141GSTAY, FRONT BUMPER, RH
52142HSTAY, FRONT BUMPER, LH
53201SUPPORT SUB-ASSY, RADIATOR
53202SUPPORT SUB-ASSY, RADIATOR, RH
53203SUPPORT SUB-ASSY, RADIATOR, LH
53205SUPPORT SUB-ASSY, RADIATOR, UPPER
53208ASUPPORT SUB-ASSY, HOOD LOCK
53213ASUPPORT, RADIATOR, UPPER RH
53214ASUPPORT, RADIATOR, UPPER LH
53285BSEAL, RADIATOR SIDE AIR, NO.1
53286BSEAL, RADIATOR SIDE AIR, NO.2
53287BEXTENSION, RADIATOR SUPPORT, RH
53288BEXTENSION, RADIATOR SUPPORT, LH
53701GAPRON SUB-ASSY, FRONT FENDER, RH
53702GAPRON SUB-ASSY, FRONT FENDER, LH
53705ABRACE SUB-ASSY, FENDER APRON, RH
53707FGUSSET SUB-ASSY, FRONT FENDER APRON, LOWER RH
53708CGUSSET SUB-ASSY, FRONT FENDER APRON, LOWER LH
53711BAPRON, FRONT FENDER, FRONT RH
53712BAPRON, FRONT FENDER, FRONT LH
53715EEXTENSION, FRONT FENDER APRON, REAR RH
53716EEXTENSION, FRONT FENDER APRON, REAR LH
53731DMEMBER, FRONT APRON TO COWL SIDE, UPPER RH
53732DMEMBER, FRONT APRON TO COWL SIDE, UPPER LH
53747AEXTENSION, APRON FENDER SIDE, RH
53748AEXTENSION, APRON FENDER SIDE, LH
53813CEXTENSION, FRONT FENDER, RH
53814CEXTENSION, FRONT FENDER, LH
53821MBRACKET, FRONT FENDER, REAR NO.1 RH
53822JBRACKET, FRONT FENDER, REAR NO.1 LH
53877FBRACKET, FRONT FENDER LINER, RH
53878NBRACKET, FRONT FENDER LINER, LH
55101PANEL SUB-ASSY, DASH
55116APLATE, BRAKE PEDAL SUPPORT MOUNTING
55118EXTENSION, DASH PANEL, RH
55131REINFORCEMENT, DASH PANEL
55210INSULATOR ASSY, DASH PANEL
55210ACLIP
55210CCLIP
55223AINSULATOR, DASH PANEL, OUTER
55722BBRACE, COWL TOP TO COWL, INNER NO.2
57104DMEMBER SUB-ASSY, FRONT CROSS
5752
58191BFOOTREST, FRONT FLOOR
58517EPAD, HEEL
9010506192
main90105-06192
9046711122
main90467-11122
9054115024
main90541-15024
91631B0614
main91631-B0614
91631J0612
main91631-J0612
50 parts on this diagram · 1 diagram in section
