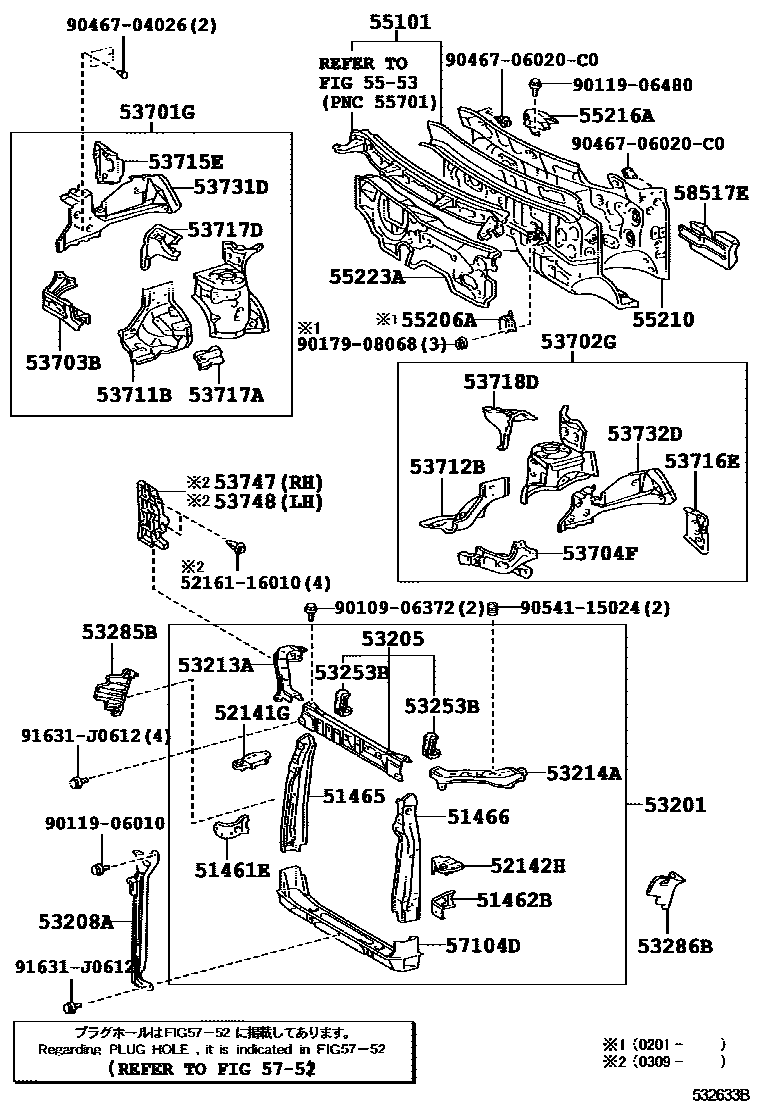

Toyota NOAH/VOXY — FRONT FENDER APRON & DASH PANEL
51465BRACE, RADIATOR SUPPORT, UPPER RH
51466BRACE, RADIATOR SUPPORT, UPPER LH
52141GSTAY, FRONT BUMPER, RH
52142HSTAY, FRONT BUMPER, LH
53201SUPPORT SUB-ASSY, RADIATOR
53205SUPPORT SUB-ASSY, RADIATOR, UPPER
53213ASUPPORT, RADIATOR, UPPER RH
53214ASUPPORT, RADIATOR, UPPER LH
53253BBRACKET, RADIATOR MOUNTING, UPPER
53701GAPRON SUB-ASSY, FRONT FENDER, RH
53702GAPRON SUB-ASSY, FRONT FENDER, LH
53703BRETAINER SUB-ASSY, FENDER APRON, RH
53704FRETAINER SUB-ASSY, FENDER APRON, LH
53711BAPRON, FRONT FENDER, FRONT RH
53712BAPRON, FRONT FENDER, FRONT LH
sub53712-44031
53715EEXTENSION, FRONT FENDER APRON, REAR RH
53716EEXTENSION, FRONT FENDER APRON, REAR LH
53717APLATE, FENDER APRON
53717DGUSSET, FENDER APRON, RH
53718DGUSSET, FENDER APRON, LH
53731DMEMBER, FRONT APRON TO COWL SIDE, UPPER RH
53732DMEMBER, FRONT APRON TO COWL SIDE, UPPER LH
53747PLATE, AIR SEALED, RH
53748PLATE, AIR SEALED, LH
55206ADAMPER SUB-ASSY, DASH PANEL DYNAMIC
55216APAD, DASH PANEL INSULATOR, NO.4
55223AINSULATOR, DASH PANEL, OUTER
5553
57104DMEMBER SUB-ASSY, FRONT CROSS
5752
58517EPAD, HEEL
5216116010CUSHION, REAR BUMPER GUARD, NO.1
main52161-16010
9010906372
main90109-06372
9011906010
main90119-06010
9011906480
main90119-06480
9017908068
main90179-08068
9046704026
main90467-04026
9046706020C0
main90467-06020C0
9054115024
main90541-15024
91631J0612
main91631-J0612
47 parts on this diagram · 1 diagram in section
