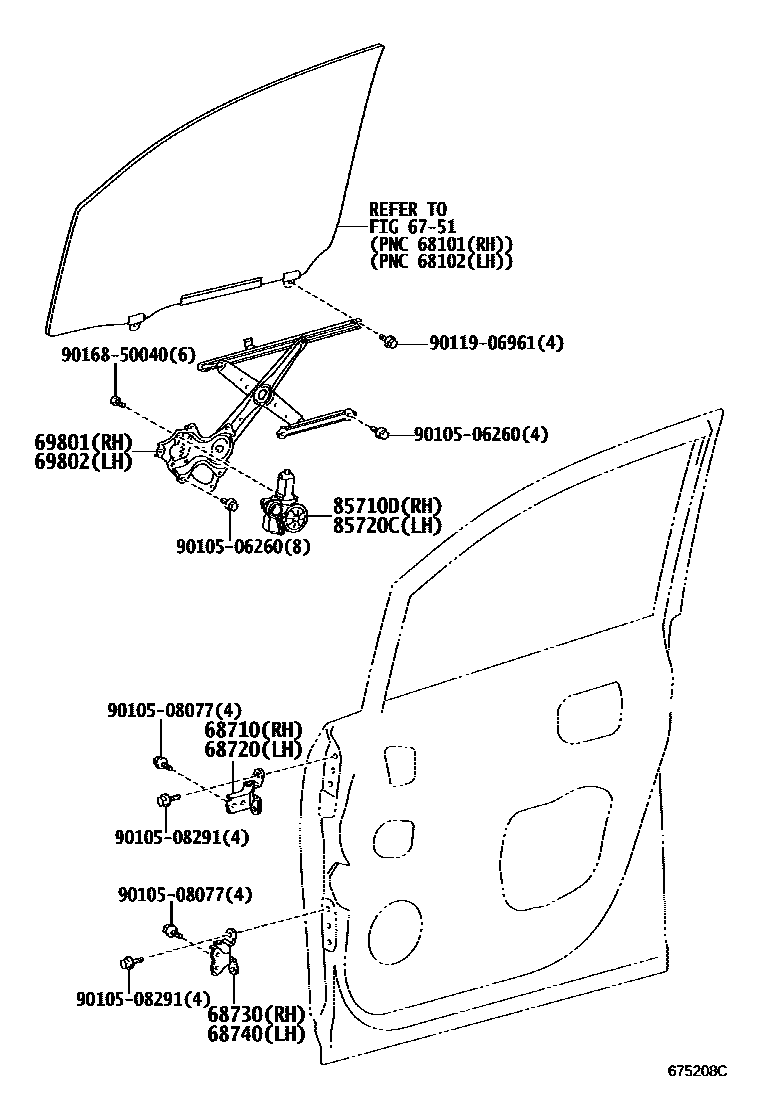

Toyota NOAH/VOXY — FRONT DOOR WINDOW REGULATOR & HINGE

6751

68710HINGE ASSY, FRONT DOOR, UPPER RH

main68710-12151iZRR7#..CBU,IV5200706-201401

68720HINGE ASSY, FRONT DOOR, UPPER LH

main68720-12151iZRR7#..CBU,IV5200706-201401

68730HINGE ASSY, FRONT DOOR, LOWER RH

main68730-33021iZRR7#..CBU,IV5200706-201401

68740HINGE ASSY, FRONT DOOR, LOWER LH

main68740-33021iZRR7#..CBU,IV5200706-201401

69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH

main69801-28100iZRR7#..CBU,IV5200706-201401

69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH

main69802-28080iZRR7#..CBU,IV5200706-201401

85710DMOTOR ASSY, POWER WINDOW REGULATOR, RH

main85710-30400iZRR7#..CBU,IV5200909-201008

sub85710-12490

main85710-30500iZRR7#..CBU,IV5201008-201302

sub85710-52171

main85710-48060iZRR7#..CBU,IV5200706-200908

sub85710-30400

main85710-52171iZRR7#..CBU,IV5201303-201401

85720CMOTOR ASSY, POWER WINDOW REGULATOR, LH

main85720-30340iZRR7#..CBU,IV5200909-201008

sub85720-12490

main85720-30440iZRR7#..CBU,IV5201008-201302

sub85720-52161

main85720-48070iZRR7#..CBU,IV5200706-200908

sub85720-30340

main85720-52161iZRR7#..CBU,IV5201303-201401

9010506260

main90105-06260

9010508077

main90105-08077

9010508291

main90105-08291

9011906961

main90119-06961

9016850040

main90168-50040

14 parts on this diagram · 1 diagram in section
