Toyota NOAH/VOXY — FRONT DOOR PANEL & GLASS

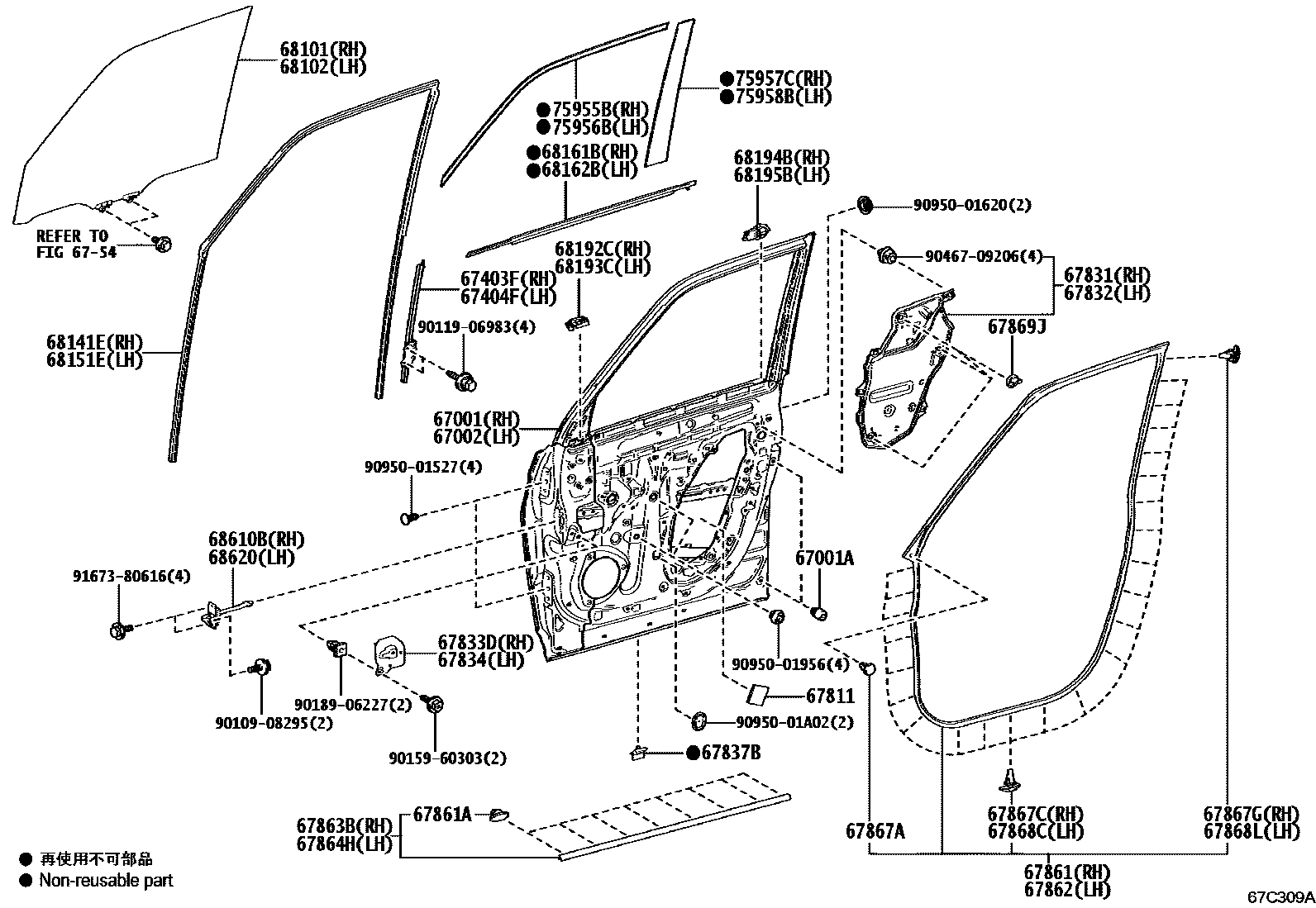

Parts diagram
67001PANEL SUB-ASSY, FRONT DOOR, RH
main67001-V1010i202201
main67001-V1020i202201-202501
67001ACUSHION, FRONT DOOR PANEL
main90541-09124×4i202201
67002PANEL SUB-ASSY, FRONT DOOR, LH
main67002-V1010i202201
main67002-V1020i202201
67403FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH
main67403-V1010i202201-202501
67404FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH
main67404-V1010i202201-202501
6754FRONT DOOR WINDOW REGULATOR & HINGE
→ Go to FIG 67-54
67811PAD, FRONT DOOR SILENCER
main67811-V1010×2i202212-202501
main67816-42020×2i202201-202211
67831COVER, FRONT DOOR SERVICE HOLE, RH
main67831-V1010i202201-202501
67832COVER, FRONT DOOR SERVICE HOLE, LH
main67832-V1010i202201-202501
67833DCOVER, FRONT DOOR SERVICE HOLE, NO.2 RH
main67833-V1010i202201-202501
67834COVER, FRONT DOOR SERVICE HOLE, NO.2 LH
main67834-V1010i202201-202501
67837BSEAL, FRONT DOOR DUST PROOF
main67837-47060×2i202201-202501
67861WEATHERSTRIP, FRONT DOOR, RH
main67861-28120supersedes 67861-28110i202201
67861ARETAINER(FOR FRONT DOOR WEATHERSTRIP)
main67867-76010×8i202201
67862WEATHERSTRIP, FRONT DOOR, LH
main67862-28120supersedes 67862-28110i202201-202501
67863BWEATHERSTRIP, FRONT DOOR, NO.2 RH
main67863-V1010i202201-202304
main67863-V1011i202305-202501
67864HWEATHERSTRIP, FRONT DOOR, NO.2 LH
main67863-V1010i202201-202304
main67863-V1011i202305-202501
67867ACLIP, DOOR WEATHERSTRIP(FOR FRONT DOOR)
main67869-26050×2i202201-202501
67867CRETAINER, FRONT DOOR WEATHERSTRIP, RH
main67867-12150×23i202201-202501
67867GRETAINER, DOOR WEATHERSTRIP, RH
main67867-52040i202201-202501
67868CRETAINER, FRONT DOOR WEATHERSTRIP, LH
main67867-12150×23i202201-202501
67868LRETAINER, DOOR WEATHERSTRIP, LH
main67867-52040i202201
67869JCLIP, FRONT DOOR WEATHERSTRIP
main67869-47010×6i202201
68101GLASS SUB-ASSY, FRONT DOOR, RH
main68101-V1020i202201-202501
main68101-V1030supersedes 68101-V1010i202201-202501
68102GLASS SUB-ASSY, FRONT DOOR, LH
main68102-V1020i202201
main68102-V1030supersedes 68102-V1010i202201
68141ERUN, FRONT DOOR GLASS, RH
main68141-28200i202201-202303
main68141-28201i202304-202501
68151ERUN, FRONT DOOR GLASS, LH
main68151-28170i202201-202303
main68151-28171i202304
68161BWEATHERSTRIP, FRONT DOOR GLASS, OUTER RH
main68161-V1010i202201-202501
main68161-V1020i202201-202501
68162BWEATHERSTRIP, FRONT DOOR GLASS, OUTER LH
main68162-V1010i202201-202501
main68162-V1020i202201
68192CSEAL, FRONT DOOR BELT, FRONT RH
main68192-V1010i202201-202501
68193CSEAL, FRONT DOOR BELT, FRONT LH
main68193-V1010i202201-202501
68194BSEAL, FRONT DOOR BELT, REAR RH
main68194-V1010i202201-202501
68195BSEAL, FRONT DOOR BELT, REAR LH
main68195-V1010i202201-202501
68610BCHECK ASSY, FRONT DOOR, RH
main68610-28080i202201-202501
68620CHECK ASSY, FRONT DOOR, LH
main68610-28080i202201-202501
75955BTAPE, BLACK OUT FRONT DOOR, OUTER UPPER RH
main75955-V1010i202201-202501
75956BTAPE, BLACK OUT FRONT DOOR, OUTER UPPER LH
main75956-V1010i202201-202501
75957CTAPE, BLACK OUT FRONT DOOR, OUTER REAR RH
main75957-V1010i202201-202501
75958BTAPE, BLACK OUT FRONT DOOR, OUTER REAR LH
main75958-V1010i202201-202501
9010908295
main90109-08295
9011906983
main90119-06983
9015960303
main90159-60303
9018906227
main90189-06227
9046709206
main90467-09206
9095001527
main90950-01527
9095001620
main90950-01620
9095001956
main90950-01956
9095001A02
main90950-01A02
9167380616
main91673-80616

49 parts on this diagram · 2 diagrams in section

FRONT DOOR PANEL & GLASS for Toyota NOAH/VOXY

This section contains 61 genuine Toyota parts for the FRONT DOOR PANEL & GLASS system of the Toyota NOAH/VOXY. Key components include: PANEL SUB-ASSY, FRONT DOOR, RH, CUSHION, FRONT DOOR PANEL, PANEL SUB-ASSY, FRONT DOOR, LH, FRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH, FRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH.
