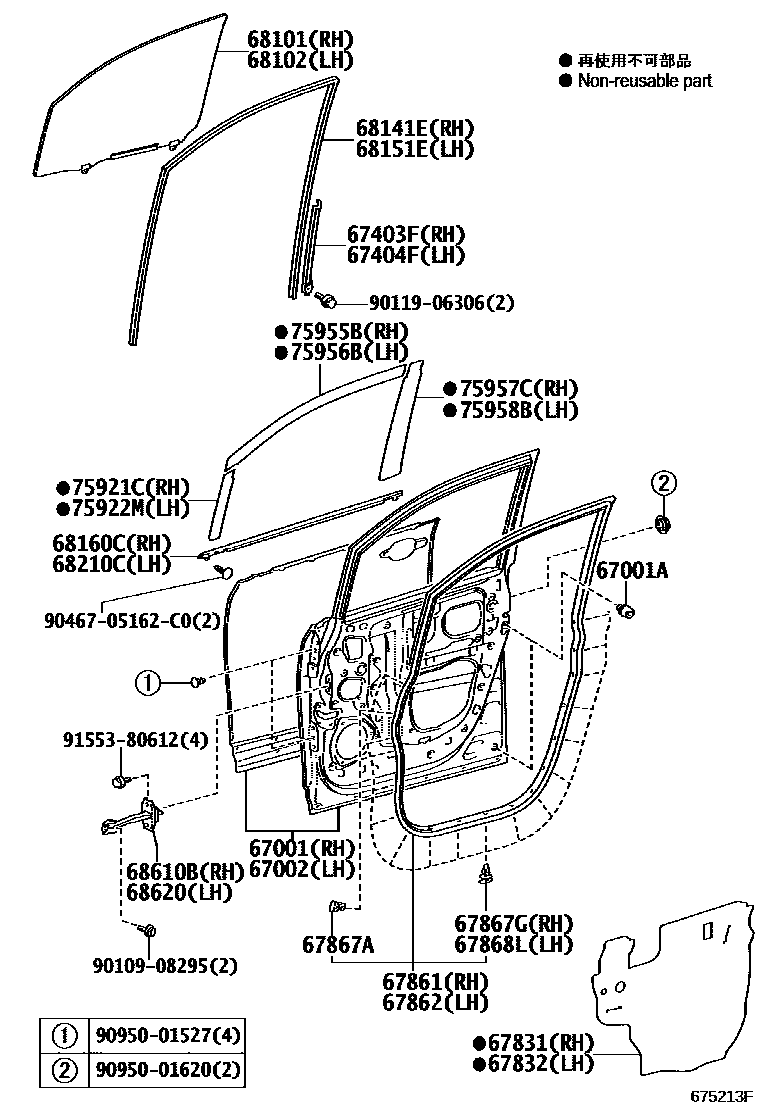

Toyota NOAH/VOXY — FRONT DOOR PANEL & GLASS

0001 1������� 0002 1������

67001PANEL SUB-ASSY, FRONT DOOR, RH

main67001-28220iZRR7#..(G,TRASX,V,X,YY)..(CBU,IV5)200706-201401

main67001-28230iZRR7#..(S,SI,Z,ZS)..(CBU,IV5)200706-201401

67001ACUSHION, FRONT DOOR PANEL

main90541-09069iZRR7#..CBU,IV5200706-201401

67002PANEL SUB-ASSY, FRONT DOOR, LH

main67002-28230iZRR7#..(G,TRASX,V,X,YY)..(CBU,IV5)200706-201401

main67002-28240iZRR7#..(S,SI,Z,ZS)..(CBU,IV5)200706-201401

67403FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH

main67403-28100iZRR7#..CBU,IV5200706-201401

67404FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH

main67404-28100iZRR7#..CBU,IV5200706-201401

67831COVER, FRONT DOOR SERVICE HOLE, RH

main67831-28170iZRR7#..CBU,IV5200706-201401

67832COVER, FRONT DOOR SERVICE HOLE, LH

main67832-28100iZRR7#..CBU,IV5200706-201401

67861WEATHERSTRIP, FRONT DOOR, RH

main67861-28090iZRR7#..CBU,IV5200706-201401

67862WEATHERSTRIP, FRONT DOOR, LH

main67862-28090iZRR7#..CBU,IV5200706-201401

67867ACLIP, DOOR WEATHERSTRIP(FOR FRONT DOOR)

main90467-04034iZRR7#..CBU,IV5200706-201401

67867GRETAINER, DOOR WEATHERSTRIP, RH

main67867-12150iZRR7#..CBU,IV5200706-201401

67868LRETAINER, DOOR WEATHERSTRIP, LH

main67867-12150iZRR7#..CBU,IV5200706-201401

68101GLASS SUB-ASSY, FRONT DOOR, RH

main68101-28260iZRR7#..(S,SI,TRASX,X,YY,Z,ZS)..(CBU,IV5)200706-201104

main68101-28261iZRR7#..(S,SI,TRASX,X,YY,Z,ZS)..(CBU,IV5)201105-201203

main68101-28262iZRR7#..(S,SI,TRASX,X,YY,Z,ZS)..(CBU,IV5)201204-201401

main68101-28270iZRR7#..G,V200706-201104

main68101-28271iZRR7#..G,V201105-201401

68102GLASS SUB-ASSY, FRONT DOOR, LH

main68102-28260iZRR7#..(S,SI,TRASX,X,YY,Z,ZS)..(CBU,IV5)200706-201104

main68102-28261iZRR7#..(S,SI,TRASX,X,YY,Z,ZS)..(CBU,IV5)201105-201203

main68102-28262iZRR7#..(S,SI,TRASX,X,YY,Z,ZS)..(CBU,IV5)201204-201401

main68102-28270iZRR7#..G,V200706-201104

main68102-28271iZRR7#..G,V201105-201401

68141ERUN, FRONT DOOR GLASS, RH

main68141-28130iZRR7#..CBU,IV5200706-200910

sub68141-28150

main68141-28150iZRR7#..CBU,IV5200911-201211

sub68141-28151

main68141-28151iZRR7#..CBU,IV5201212-201401

sub68141-28152

68151ERUN, FRONT DOOR GLASS, LH

main68151-28100iZRR7#..CBU,IV5200706-200910

sub68151-28120

main68151-28120iZRR7#..CBU,IV5200911-201211

sub68151-28121

main68151-28121iZRR7#..CBU,IV5201212-201401

sub68151-28122

68160CWEATHERSTRIP ASSY, FRONT DOOR GLASS, OUTER RH

main68161-28070iZRR7#..CBU,IV5200706-201401

68210CWEATHERSTRIP ASSY, FRONT DOOR GLASS, OUTER LH

main68162-28070iZRR7#..CBU,IV5200706-201401

68610BCHECK ASSY, FRONT DOOR, RH

main68610-28060iZRR7#..CBU,IV5200706-201401

68620CHECK ASSY, FRONT DOOR, LH

main68610-28060iZRR7#..CBU,IV5200706-201401

75921CTAPE, BLACK OUT, NO.1 RH

main75935-28040iZRR7#..CBU,IV5200706-201401

75922MTAPE, BLACK OUT, NO.1 LH

main75936-28040iZRR7#..CBU,IV5200706-201401

75955BTAPE, BLACK OUT FRONT DOOR, OUTER UPPER RH

main75955-28040iZRR7#..CBU,IV5200706-201401

75956BTAPE, BLACK OUT FRONT DOOR, OUTER UPPER LH

main75956-28040iZRR7#..CBU,IV5200706-201401

75957CTAPE, BLACK OUT FRONT DOOR, OUTER REAR RH

main75957-28040iZRR7#..CBU,IV5200706-201401

75958BTAPE, BLACK OUT FRONT DOOR, OUTER REAR LH

main75958-28040iZRR7#..CBU,IV5200706-201401

9010908295

main90109-08295

9011906306

main90119-06306

9046705162C0

main90467-05162C0

9095001527

main90950-01527

9095001620

main90950-01620

9155380612

main91553-80612

32 parts on this diagram · 2 diagrams in section
