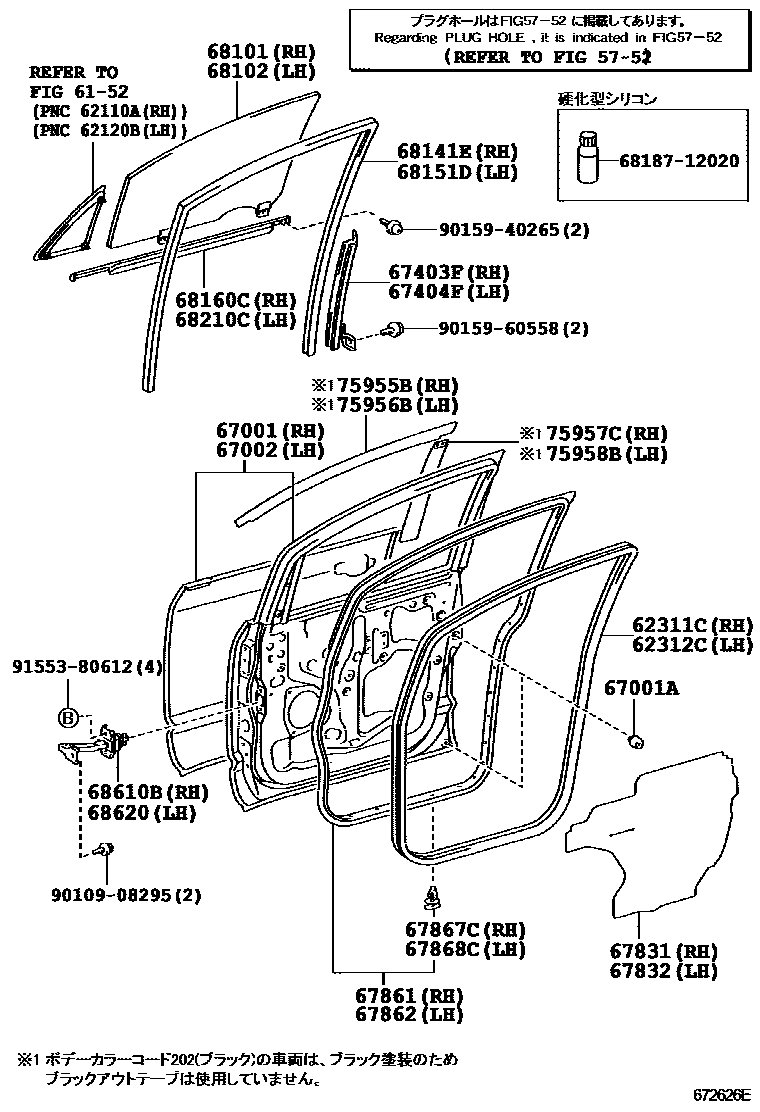

Toyota NOAH/VOXY — FRONT DOOR PANEL & GLASS
5752HOLE PLUG
6152SIDE WINDOW
62311CWEATHERSTRIP, FRONT DOOR OPENING TRIM, RH
STONE,TRIM1#
GRAY,TRIM1#
FAWN,TRIM4#
62312CWEATHERSTRIP, FRONT DOOR OPENING TRIM, LH
STONE,TRIM1#
GRAY,TRIM1#
FAWN,TRIM4#
67001PANEL SUB-ASSY, FRONT DOOR, RH
67001ACUSHION, FRONT DOOR PANEL
67002PANEL SUB-ASSY, FRONT DOOR, LH
67403FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH
67404FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH
67831COVER, FRONT DOOR SERVICE HOLE, RH
67832COVER, FRONT DOOR SERVICE HOLE, LH
67861WEATHERSTRIP, FRONT DOOR, RH
67862WEATHERSTRIP, FRONT DOOR, LH
67867CRETAINER, FRONT DOOR WEATHERSTRIP, RH
67868CRETAINER, FRONT DOOR WEATHERSTRIP, LH
68101GLASS SUB-ASSY, FRONT DOOR, RH
68102GLASS SUB-ASSY, FRONT DOOR, LH
68160CWEATHERSTRIP ASSY, FRONT DOOR GLASS, OUTER RH
68210CWEATHERSTRIP ASSY, FRONT DOOR GLASS, OUTER LH
68610BCHECK ASSY, FRONT DOOR, RH
68620CHECK ASSY, FRONT DOOR, LH
75955BTAPE, BLACK OUT FRONT DOOR, OUTER UPPER RH
75956BTAPE, BLACK OUT FRONT DOOR, OUTER UPPER LH
75957CTAPE, BLACK OUT FRONT DOOR, OUTER REAR RH
75958BTAPE, BLACK OUT FRONT DOOR, OUTER REAR LH
6818712020WEATHERSTRIP, SIDE WINDOW GLASS
main68187-12020
9010908295
main90109-08295
9015940265
main90159-40265
9015960558
main90159-60558
9155380612
main91553-80612
32 parts on this diagram · 3 diagrams in section
FRONT DOOR PANEL & GLASS for Toyota NOAH/VOXY
This section contains 52 genuine Toyota parts for the FRONT DOOR PANEL & GLASS system of the Toyota NOAH/VOXY. Key components include: HOLE PLUG, SIDE WINDOW, WEATHERSTRIP, FRONT DOOR OPENING TRIM, RH, WEATHERSTRIP, FRONT DOOR OPENING TRIM, LH, PANEL SUB-ASSY, FRONT DOOR, RH.
