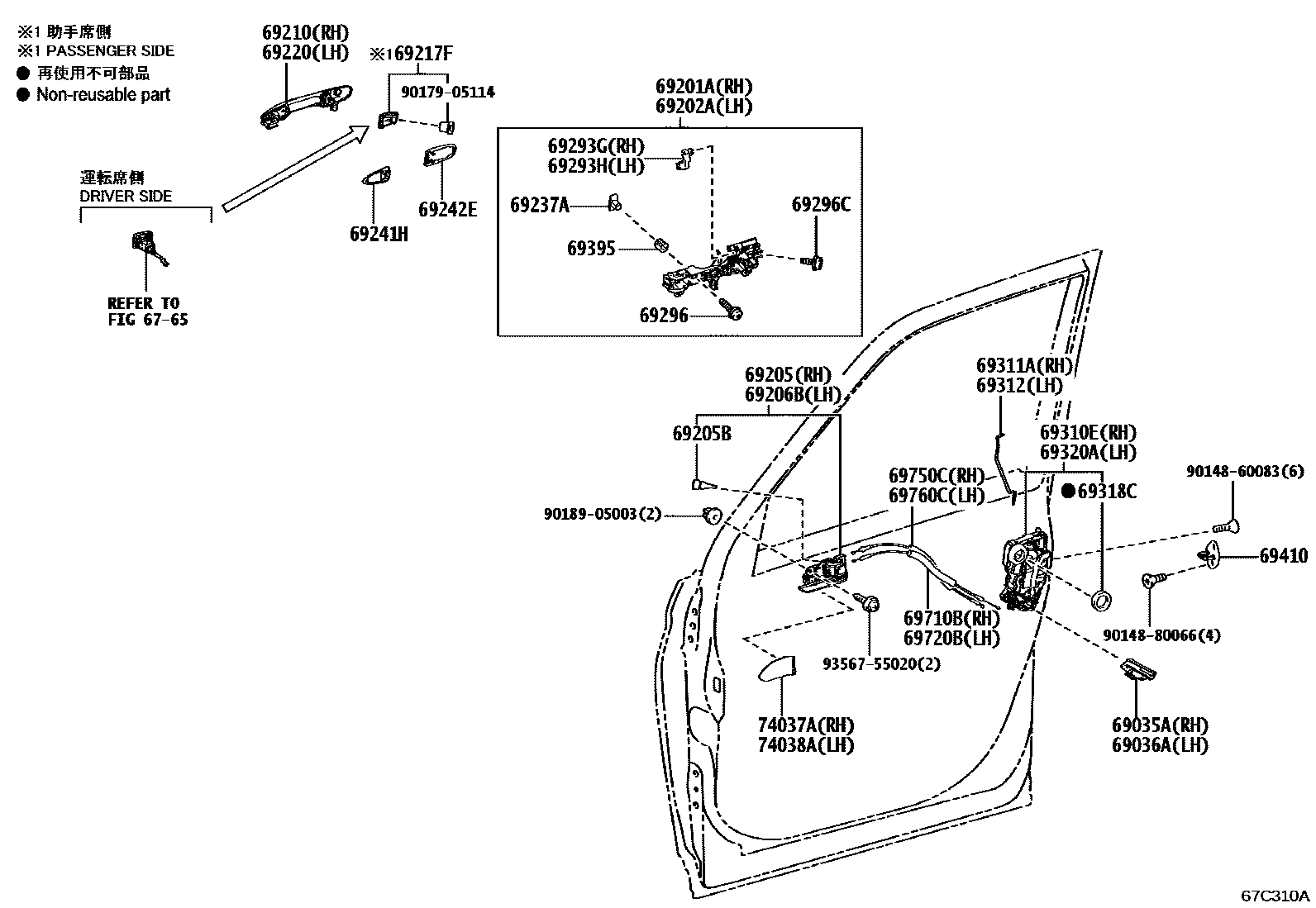

Toyota NOAH/VOXY — FRONT DOOR LOCK & HANDLE

6765

69035ACOVER SUB-ASSY, FRONT DOOR LOCK, RH

main69035-28010iMZRA95..IV5;MZRA92..08S..SG;MZRA9#,ZWR9#..G,Z202201-202501

69036ACOVER SUB-ASSY, FRONT DOOR LOCK, LH

main69036-28010iMZRA92..08S..X;MZRA92..07S..(SG,X);MZRA90,95,97,ZWR9#..(SG,SZ,X)..CBU202201

69201AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH

main69201-47070iMZRA92..08S..X;MZRA92..07S..(SG,X);MZRA90,95,97,ZWR9#..(SG,SZ,X)..CBU202201

69202AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH

main69202-47040iMZRA92..08S..X;MZRA92..07S..(SG,X);MZRA90,95,97,ZWR9#..(SG,SZ,X)..CBU202201

69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH

main69205-12250-C0iMZRA90,95,ZWR90,95..SZ202201

BLACK,TRIM2#

main69205-15010-C1iMZRA92..08S..SG;MZRA95..SG..IV5202201-202501

BLACK,TRIM1#

69205BCUSHION(FOR FRONT DOOR INSIDE HANDLE)

main90541-04014×2iMZRA95..IV5;MZRA92..08S..SG;MZRA9#,ZWR9#..G,Z202201-202501

69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH

main69206-12250-C0iMZRA90,95,ZWR90,95..SZ202201

BLACK,TRIM2#

main69206-15010-C1iMZRA92..08S..SG;MZRA95..SG..IV5202201-202501

BLACK,TRIM1#

69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH

main69210-K0010-A1supersedes 69211-33120-A3iZWR9#..SG,SZ,X;MZRA92..07S..SG;MZRA90,95..(SG,SZ)..CBU202201-202502

WHITE PEARL CS.,070

main69210-K0010-B5supersedes 69211-33120-B6iZWR9#..SG,SZ,X;MZRA92..07S..SG;MZRA90,95..(SG,SZ)..CBU202201

METAL STREAM ME,1K0

main69210-K0010-B6iMZRA92..VOXY..07S;MZRA90,95,ZWR9#..VOXY..CBU202201-202502

MASSIVE GRAY,1L6

main69210-K0010-C3supersedes 69211-33120-C0iZWR9#..SG,SZ,X;MZRA92..07S..SG;MZRA90,95..(SG,SZ)..CBU202201

ATTITUDE BLACK MC.,218

main69210-K0010-C4supersedes 69211-33120-C5iZWR9#..SG,SZ,X;MZRA92..07S..SG;MZRA90,95..(SG,SZ)..CBU202201-202502

SPARKLING BLACK PEARL CS.,220

main69210-K0010-C5iMZRA92..07S..SG;MZRA90,95,ZWR9#..(SG,SZ)..CBU202201

GLITTER BLACK GF.,226

main69210-K0010-D6iMZRA92..NOAH..07S..SG;MZRA90,95,ZWR9#..NOAH..(SG,SZ)..CBU202201-202502

RED M.M.,3R3

main69210-K0010-E2supersedes 69211-33120-E0iMZRA9#,ZWR9#..G,Z202201-202501

69217FCOVER, FRONT DOOR OUTSIDE HANDLE, LH

main69217-47020iMZRA95..IV5;MZRA92..08S..SG;MZRA9#,ZWR9#..G,Z202201-202501

69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH

main69210-K0020-A1supersedes 69211-47021-A1iMZRA92..08S..SG;MZRA95..SG..IV5;MZRA9#,ZWR9#..G,Z202201-202501

WHITE PEARL CS.,070

main69210-K0020-B5supersedes 69211-47021-B3iMZRA92..08S..SG;MZRA95..SG..IV5;MZRA9#,ZWR9#..G,Z202201-202501

METAL STREAM ME,1K0

main69210-K0020-B6iMZRA92..VOXY..08S;MZRA95..VOXY..IV5202201-202501

MASSIVE GRAY,1L6

main69210-K0020-C3supersedes 69211-47021-C0iZWR9#..SG,SZ,X;MZRA92..07S..SG;MZRA90,95..(SG,SZ)..CBU202201

ATTITUDE BLACK MC.,218

main69210-K0020-C4supersedes 69211-47021-C5iMZRA92..08S..SG;MZRA95..SG..IV5;MZRA9#,ZWR9#..G,Z202201-202501

SPARKLING BLACK PEARL CS.,220

main69210-K0020-C5iMZRA92..08S..SG;MZRA95..SG..IV5202201-202501

GLITTER BLACK GF.,226

main69210-K0020-D6iMZRA92..NOAH..08S..SG;MZRA95..NOAH..SG..IV5202201-202501

RED M.M.,3R3

main69210-K0020-E2supersedes 69211-47021-E0iZWR9#..X202201-202502

69237ANUT, FRONT DOOR HANDLE

main69237-62010×2iMZRA95..IV5;MZRA92..08S..SG;MZRA9#,ZWR9#..G,Z202201-202501

69241HPAD, FRONT DOOR OUTSIDE HANDLE, FRONT

main69241-47020×2iMZRA9#,ZWR9#202201-202310

main69241-V2030×2iMZRA95..IV5;MZRA92..08S..SG;MZRA9#,ZWR9#..G,Z202310-202501

69242EPAD, FRONT DOOR OUTSIDE HANDLE, REAR

main69242-47030×2iMZRA95..IV5;MZRA92..08S..SG;MZRA9#,ZWR9#..G,Z202201-202501

69293GSNAP, FRONT DOOR OUTSIDE HANDLE, RH

main69293-12030iMZRA95..IV5;MZRA92..08S..SG;MZRA9#,ZWR9#..G,Z202201-202501

69293HSNAP, FRONT DOOR OUTSIDE HANDLE, LH

main69293-12040iMZRA95..IV5;MZRA92..08S..SG;MZRA9#,ZWR9#..G,Z202201-202501

69296SCREW, DOOR INSIDE HANDLE

main90148-50006×2supersedes 69296-30010iMZRA92..08S..SG;MZRA95..SG..IV5;MZRA9#,ZWR9#..G,Z202201-202501

69296CSCREW, DOOR INSIDE HANDLE

main90148-50003×2iMZRA95..IV5;MZRA92..08S..SG;MZRA9#,ZWR9#..G,Z202201-202501

69310ELOCK ASSY, FRONT DOOR W/COURTESY LAMP SWITCH, RH

main69030-28190iMZRA95..IV5;MZRA92..08S..SG;MZRA9#,ZWR9#..G,Z202201-202501

69311AROD, FRONT DOOR LOCK OPEN, RH

main69311-V1010iMZRA95..IV5;MZRA92..08S..SG;MZRA9#,ZWR9#..G,Z202201-202501

69312ROD, FRONT DOOR LOCK OPEN, LH

main69312-V1010iMZRA95..IV5;MZRA92..08S..SG;MZRA9#,ZWR9#..G,Z202201-202501

69318CSEAL, DOOR LOCK WIRING HARNESS

main69318-51010×2iMZRA95..IV5;MZRA92..08S..SG;MZRA9#,ZWR9#..G,Z202201-202501

69320ALOCK ASSY, FRONT DOOR W/COURTESY LAMP SWITCH, LH

main69040-28220iMZRA95..IV5;MZRA92..08S..SG;MZRA9#,ZWR9#..G,Z202201-202501

69395BUSH(FOR DOOR OUTSIDE HANDLE)

main69239-47010×2iMZRA95..IV5;MZRA92..08S..SG;MZRA9#,ZWR9#..G,Z202201-202501

69410PLATE ASSY, FRONT DOOR LOCK STRIKER

main69410-20110×2iMZRA92..08S..X;MZRA92..07S..(SG,X);MZRA90,95,97,ZWR9#..(SG,SZ,X)..CBU202201

69710BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, RH

main69710-V1010iMZRA95..IV5;MZRA92..08S..SG;MZRA9#,ZWR9#..G,Z202201-202501

69720BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, LH

main69710-V1010iMZRA95..IV5;MZRA92..08S..SG;MZRA9#,ZWR9#..G,Z202201-202501

69750CCABLE ASSY, FRONT DOOR INSIDE LOCKING, RH

main69750-V1010iMZRA92..08S..X;MZRA92..07S..(SG,X);MZRA90,95,97,ZWR9#..(SG,SZ,X)..CBU202201

69760CCABLE ASSY, FRONT DOOR INSIDE LOCKING LH

main69750-V1010iMZRA95..IV5;MZRA92..08S..SG;MZRA9#,ZWR9#..G,Z202201-202501

74037ACOVER SUB-ASSY, FRONT DOOR ARMREST, RH

main74037-V1010-C0iMZRA92..08S..SG;MZRA95..SG..IV5;MZRA9#,ZWR9#..G,Z202201-202501

BLACK,TRIM1#

main74037-V1010-E0iMZRA9#,ZWR9#..G202201-202501

TAUPE,TRIM0#

main74037-V1010-E1iMZRA90,95,ZWR90,95..Z202201-202501

DARK CHESTNUT,TRIM4#

74038ACOVER SUB-ASSY, FRONT DOOR ARMREST, LH

main74038-V1010-C0iMZRA92..08S..SG;MZRA95..SG..IV5;MZRA9#,ZWR9#..G,Z202201-202501

BLACK,TRIM1#

main74038-V1010-E0iMZRA9#,ZWR9#..G202201-202501

TAUPE,TRIM0#

main74038-V1010-E1iMZRA90,95,ZWR90,95..Z202201-202501

DARK CHESTNUT,TRIM4#

9014860083

main90148-60083

9014880066

main90148-80066

9017905114

main90179-05114

9018905003

main90189-05003

9356755020

main93567-55020

36 parts on this diagram · 1 diagram in section
