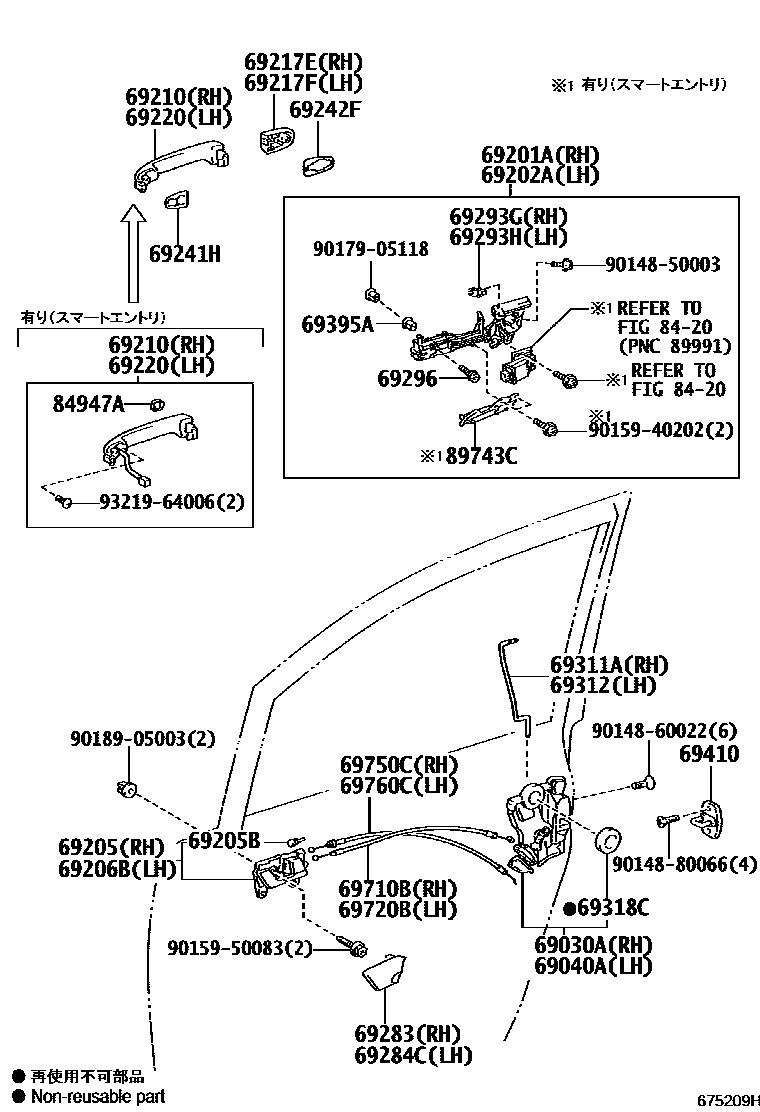

Toyota NOAH/VOXY — FRONT DOOR LOCK & HANDLE

69030ALOCK ASSY, FRONT DOOR W/MOTOR, RH

main69030-42210iZRR7#..CBU,IV5201004-201401

69040ALOCK ASSY, FRONT DOOR W/MOTOR, LH

main69040-12490iZRR7#..(S,TRASX,X,YY,Z)..(CBU,IV5)200706-201004

main69040-42230iZRR7#..X..CBU201004-201401

69201AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH

main69201-28010iZRR7#..(S,TRASX,X,YY,Z)..(CBU,IV5)201004-201401

main69201-28030iZRR7#..S,Z;ZRR7#..07S..HTWC..CBU200706-201004

69202AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH

main69202-28010iZRR7#..(S,TRASX,X,YY,Z)..(CBU,IV5)201004-201401

main69202-28020iZRR7#..S,Z;ZRR7#..07S..HTWC..CBU200706-201004

69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH

main69205-20210-C0iZRR7#..V201004-201401

BLACK,TRIM4#

main69205-28110-B0iZRR7#..(TRASX,X,YY)..(CBU,IV5)200706-200912

DK.GRAY,TRIM1#

main69205-28110-B1iZRR7#..(TRASX,X,YY)..(CBU,IV5)200912-201004

DK.GRAY,TRIM1#

main69205-28110-C1iZRR7#..(TRASX,X,YY)..(CBU,IV5)201004-201401

BLACK,TRIM2#

main69205-28110-E0iZRR7#..NOAH..X..(CBU,IV5)200706-200912

ASH BROWN,TRIM4#

main69205-28110-E3iZRR7#..NOAH..X..(CBU,IV5)200912-201004

ASH BROWN,TRIM4#

main69205-28120-B0iZRR7#..G200706-200912

DK.GRAY,TRIM4#

main69205-28120-B1iZRR7#..G200912-201004

DK.GRAY/SILVER FINISH,TRIM4#

main69205-28130-C1iZRR7#..(S,SI,Z,ZS)..(CBU,IV5)201004-201401

BLACK/SILVER ME.,TRIM2#

main69205-20210-B0iZRR7#..08S..ZS..CBU200906-201004

69205BCUSHION(FOR FRONT DOOR INSIDE HANDLE)

main90541-04014×2iZRR7#..CBU,IV5200706-201004

69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH

main69206-20210-C0iZRR7#..V201004-201401

BLACK,TRIM4#

main69206-28110-B0iZRR7#..(TRASX,X,YY)..(CBU,IV5)200706-200912

DK.GRAY,TRIM1#

main69206-28110-B1iZRR7#..(TRASX,X,YY)..(CBU,IV5)200912-201004

DK.GRAY,TRIM1#

main69206-28110-C1iZRR7#..(TRASX,X,YY)..(CBU,IV5)201004-201401

BLACK,TRIM2#

main69206-28110-E0iZRR7#..NOAH..X..(CBU,IV5)200706-200912

ASH BROWN,TRIM4#

main69206-28110-E3iZRR7#..NOAH..X..(CBU,IV5)200912-201004

ASH BROWN,TRIM4#

main69206-28120-B0iZRR7#..G200706-200912

DK.GRAY,TRIM4#

main69206-28120-B1iZRR7#..G200912-201004

DK.GRAY/SILVER FINISH,TRIM4#

main69206-28130-C1iZRR7#..(S,SI,Z,ZS)..(CBU,IV5)201004-201401

BLACK/SILVER ME.,TRIM2#

main69206-20210-B0iZRR7#..08S..ZS..CBU200806-200905

69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH

main69210-44030-A6iZRR7#..X..IV5201004-201401

WHITE PEARL CS.,070

main69210-44030-B0iZRR7#..S,Z;ZRR7#..07S..HTWC..CBU200706-201004

main69210-44030-B9iZRR7#..(G,SI)..(CBU,IV5)200706-201004

main69210-44030-C1iZRR7#..S,Z;ZRR7#..07S..HTWC..CBU200706-201004

main69210-44030-D5iZRR7#..G,V200706-201004

main69210-44030-D8iZRR7#..ZS..(CBU,IV5)201004-201401

DEEP RED M.M.,3R9

main69210-44030-F4iZRR7#..G,V201004-201401

main69210-44030-J2iZRR7#..G,V200706-201004

main69210-44030-K2iZRR7#..Z;ZRR7#..VOXY..07S..HTWC..CBU200706-201004

DK.VIOLET M.M.,9AF

main69210-44030-R3iZRR7#..G,V200706-201004

LT.BLUE M.M.,8S7

main69210-44030-R5iZRR7#..NOAH..X..IV5201004-201401

LT.BLUE M.M.,8S1

main69211-28070-A3iZRR7#..(S,TRASX,X,YY,Z)..(CBU,IV5)200706-201004

WHITE PEARL CS.,070

main69211-28070-C1iZRR7#..(S,TRASX,X,YY,Z)..(CBU,IV5)201004-201401

BLACK,202

main69211-28070-D9iZRR7#..X..(CBU,IV5)200706-201004

DK. RED M.M.,3Q3

main69211-28070-F8iZRR7#..X..(CBU,IV5)201004-201401

SILKY GOLD M.M.,5A4

main69211-28070-K3iZRR7#..VOXY..(TRASX,X,Z)..(CBU,IV5)200706-201004

DK.VIOLET M.M.,9AF

main69211-28070-P2iZRR7#..(S,TRASX,X,YY,Z)..(CBU,IV5)200706-201004

SILVER ME.,1F7

main69211-28070-P4iZRR7#..(S,X,YY)..(CBU,IV5)201004-201401

GRAY ME.,1G3

main69211-28070-R9iZRR7#..X..(CBU,IV5)200706-201004

DK.BLUE MC.,8S6

main69211-28070-V4iZRR7#..X..(CBU,IV5)200706-201004

LT.BLUE M.M.,8S7

main69211-28070-V9iZRR7#..NOAH..X..(CBU,IV5)201004-201401

LT.BLUE M.M.,8S1

main69211-28070-X4iZRR7#..Z201004-201401

DEEP RED M.M.,3R9

main69210-20410-A1iZRR7#..SI..CBU201106-201203

main69210-20410-B0iZRR7#..ZS..CBU201010-201110

main69210-20410-B2iZRR7#..ZS..CBU201010-201110

main69210-20410-B7iZRR7#..ZS..CBU201210-201305

main69210-20410-C1iZRR7#..08S..ZS..CBU201002-201004

main69210-20410-D2iZRR7#..ZS..CBU201210-201305

main69210-20410-J3iZRR7#..NOAH..X..CBU201208-201210

main69210-20410-K0iZRR7#..NOAH..08S..X..CBU201002-201004

main69210-20410-K1iZRR7#..ZS..CBU201010-201110

main69210-30290-A8iZRR7#..S200806-201004

main69210-30290-B2iZRR7#..S200806-201004

main69210-30290-B6iZRR7#..NOAH..08S..X..CBU200904-201002

main69210-30290-C0iZRR7#..S200806-201004

main69210-30290-K0iZRR7#..NOAH..08S..X..CBU200904-201002

main69210-30290-K1iZRR7#..08S..ZS..CBU200806-200905

69217ECOVER, FRONT DOOR OUTSIDE HANDLE, RH

main69217-28010-A3iZRR7#..CBU,IV5201004-201401

WHITE PEARL CS.,070

main69217-28010-C1iZRR7#..CBU,IV5201004-201401

BLACK,202

main69217-28010-D9iZRR7#..(G,V,X)..(CBU,IV5)200706-201004

DK. RED M.M.,3Q3

main69217-28010-F8iZRR7#..(G,V,X)..(CBU,IV5)201004-201401

SILKY GOLD M.M.,5A4

main69217-28010-K4iZRR7#..(G,TRASX,V,X,Z,ZS)..(CBU,IV5)201004-201401

DK.VIOLET M.M.,9AF

main69217-28010-P2iZRR7#..CBU,IV5200706-201004

SILVER ME.,1F7

main69217-28010-P5iZRR7#..NOAH..(CBU,IV5)200706-201004

GRAY ME.,1G3

main69217-28010-R9iZRR7#..(G,V,X)..(CBU,IV5)200706-201004

DK.BLUE MC.,8S6

main69217-28010-V4iZRR7#..(G,V,X)..(CBU,IV5)200706-201004

LT.BLUE M.M.,8S7

main69217-28010-W4iZRR7#..NOAH..(G,X)..(CBU,IV5)201004-201401

LT.BLUE M.M.,8S1

main69217-28010-X5iZRR7#..(Z,ZS)..(CBU,IV5)201004-201401

DEEP RED M.M.,3R9

main69250-30010-A7iZRR7#..ZS..CBU201305-201401

main69250-30010-B2iZRR7#..NOAH..08S..X..CBU200904-201004

main69250-30010-B7iZRR7#..NOAH..X..CBU201208-201401

main69250-30010-C0iZRR7#..S200806-201004

main69250-30010-D5iZRR7#..ZS..CBU201305-201401

main69250-30010-K1iZRR7#..S200806-201004

main69250-30010-K2iZRR7#..08S..ZS..CBU200806-200905

main69250-30010-P9iZRR7#..ZS..CBU201210-201305

main69250-30010-R7iZRR7#..NOAH..X..CBU201208-201210

69217FCOVER, FRONT DOOR OUTSIDE HANDLE, LH

main69217-60020-A1iZRR7#..CBU,IV5201004-201401

WHITE PEARL CS.,070

main69217-60020-C0iZRR7#..CBU,IV5201004-201401

BLACK,202

main69217-60020-D8iZRR7#..(G,V,X)..(CBU,IV5)200706-201004

DK. RED M.M.,3Q3

main69217-60020-F6iZRR7#..(G,V,X)..(CBU,IV5)201004-201401

SILKY GOLD M.M.,5A4

main69217-60020-K3iZRR7#..VOXY..(CBU,IV5)200706-201004

DK.VIOLET M.M.,9AF

main69217-60020-P0iZRR7#..CBU,IV5201004-201401

SILVER ME.,1F7

main69217-60020-P3iZRR7#..NOAH..(CBU,IV5)200706-201004

GRAY ME.,1G3

main69217-60020-R5iZRR7#..(G,V,X)..(CBU,IV5)200706-201004

DK.BLUE MC.,8S6

main69217-60020-V0iZRR7#..(G,V,X)..(CBU,IV5)200706-201004

LT.BLUE M.M.,8S7

main69217-60020-V9iZRR7#..NOAH..(G,X)..(CBU,IV5)201004-201401

LT.BLUE M.M.,8S1

main69217-60020-X2iZRR7#..(Z,ZS)..(CBU,IV5)201004-201401

DEEP RED M.M.,3R9

main69250-30020-A6iZRR7#..NOAH..08S..X..CBU200904-201004

main69250-30020-B2iZRR7#..NOAH..X..CBU201208-201401

main69250-30020-B6iZRR7#..ZS..CBU201210-201305

main69250-30020-C0iZRR7#..ZS..CBU201110-201210

main69250-30020-D5iZRR7#..NOAH..X..CBU201010-201304

main69250-30020-K1iZRR7#..NOAH..08S..X..CBU200904-201004

main69250-30020-K2iZRR7#..08S..ZS..CBU200806-200905

main69250-30020-P8iZRR7#..ZS..CBU201305-201401

main69250-30020-R6iZRR7#..NOAH..X..CBU201010-201210

69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH

main69210-44030-A6iZRR7#..S,Z;ZRR7#..07S..HTWC..CBU200706-201004

main69210-44030-B0iZRR7#..X..IV5201004-201401

main69210-44030-B9iZRR7#..(G,SI)..(CBU,IV5)200706-201004

main69210-44030-C1iZRR7#..S,Z;ZRR7#..07S..HTWC..CBU200706-201004

main69210-44030-D5iZRR7#..G,V200706-201004

main69210-44030-D8iZRR7#..ZS..(CBU,IV5)201004-201401

DEEP RED M.M.,3R9

main69210-44030-F4iZRR7#..G,V201004-201401

main69210-44030-J2iZRR7#..G,V200706-201004

main69210-44030-K2iZRR7#..(G,V,ZS)..(CBU,IV5)201004-201401

main69210-44030-R3iZRR7#..G,V200706-201004

LT.BLUE M.M.,8S7

main69210-44030-R5iZRR7#..NOAH..X..IV5201004-201401

LT.BLUE M.M.,8S1

main69211-28070-A3iZRR7#..(S,TRASX,X,YY,Z)..(CBU,IV5)200706-201004

WHITE PEARL CS.,070

main69211-28070-C1iZRR7#..(S,TRASX,X,YY,Z)..(CBU,IV5)201004-201401

BLACK,202

main69211-28070-D9iZRR7#..X..(CBU,IV5)200706-201004

DK. RED M.M.,3Q3

main69211-28070-F8iZRR7#..X..(CBU,IV5)201004-201401

SILKY GOLD M.M.,5A4

main69211-28070-K3iZRR7#..(TRASX,X,Z)..(CBU,IV5)201004-201401

DK.VIOLET M.M.,9AF

main69211-28070-P2iZRR7#..(S,TRASX,X,YY,Z)..(CBU,IV5)201004-201401

SILVER ME.,1F7

main69211-28070-P4iZRR7#..NOAH..(S,X,YY)..(CBU,IV5)200706-201004

GRAY ME.,1G3

main69211-28070-R9iZRR7#..X..(CBU,IV5)200706-201004

DK.BLUE MC.,8S6

main69211-28070-V4iZRR7#..X..(CBU,IV5)200706-201004

LT.BLUE M.M.,8S7

main69211-28070-V9iZRR7#..NOAH..X..(CBU,IV5)201004-201401

LT.BLUE M.M.,8S1

main69211-28070-X4iZRR7#..Z201004-201401

DEEP RED M.M.,3R9

main69210-20410-A1iZRR7#..NOAH..08S..X..CBU201002-201004

main69210-20410-B0iZRR7#..ZS..CBU201010-201110

main69210-20410-B2iZRR7#..ZS..CBU201110-201210

main69210-20410-B7iZRR7#..ZS..CBU201210-201305

main69210-20410-C1iZRR7#..ZS..CBU201010-201110

main69210-20410-D2iZRR7#..NOAH..X..CBU201010-201304

main69210-20410-J3iZRR7#..NOAH..X..CBU201208-201210

main69210-20410-K0iZRR7#..NOAH..08S..X..CBU201002-201004

main69210-20410-K1iZRR7#..08S..ZS..CBU201002-201004

main69210-30290-A8iZRR7#..NOAH..08S..X..CBU200904-201002

main69210-30290-B2iZRR7#..08S..ZS..CBU200906-201002

main69210-30290-B6iZRR7#..NOAH..08S..X..CBU200904-201002

main69210-30290-C0iZRR7#..08S..ZS..CBU200806-200905

main69210-30290-K0iZRR7#..S200806-201004

main69210-30290-K1iZRR7#..08S..ZS..CBU200806-200905

69241HPAD, FRONT DOOR OUTSIDE HANDLE, FRONT

main69241-28060×2iZRR7#..CBU,IV5200706-201004

69242FPAD, FRONT DOOR OUTSIDE HANDLE, REAR

main69242-60030×2iZRR7#..CBU,IV5200706-201004

69283PLUG, FRONT DOOR INSIDE HANDLE BEZEL, RH

main69283-20020-B0iZRR7#..G200706-201004

DK.GRAY,TRIM4#

main69283-20020-C0iZRR7#..G201004-201401

BLACK,TRIM4#

main69283-20020-E1iZRR7#..NOAH..X..(CBU,IV5)200706-201004

ASH BROWN,TRIM4#

69284CPLUG, FRONT DOOR INSIDE HANDLE BEZEL, LH

main69284-20010-B0iZRR7#..G200706-201004

DK.GRAY,TRIM4#

main69284-20010-C0iZRR7#..G201004-201401

BLACK,TRIM4#

main69284-20010-E1iZRR7#..NOAH..X..(CBU,IV5)200706-201004

ASH BROWN,TRIM4#

69293GSNAP, FRONT DOOR OUTSIDE HANDLE, RH

main69293-12030iZRR7#..CBU,IV5201004-201401

69293HSNAP, FRONT DOOR OUTSIDE HANDLE, LH

main69293-12040iZRR7#..CBU,IV5201004-201401

69296SCREW, DOOR INSIDE HANDLE

main69296-48010×2iZRR7#..CBU,IV5200706-201004

69311AROD, FRONT DOOR LOCK OPEN, RH

main69311-28060iZRR7#..CBU,IV5200706-201004

69312ROD, FRONT DOOR LOCK OPEN, LH

main69312-28060iZRR7#..CBU,IV5200706-201004

69318CSEAL, DOOR LOCK WIRING HARNESS

main69318-51010×2iZRR7#..CBU,IV5200706-201004

69395ABUSHING(FOR FRONT DOOR OUTSIDE HANDLE)

main90386-08066×2iZRR7#..CBU,IV5200706-201004

69410PLATE ASSY, FRONT DOOR LOCK STRIKER

main69410-33010×2iZRR7#..CBU,IV5201004-201401

69710BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, RH

main69710-28050iZRR7#..CBU,IV5201004-201401

69720BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, LH

main69710-28050iZRR7#..CBU,IV5201004-201401

69750CCABLE ASSY, FRONT DOOR INSIDE LOCKING, RH

main69750-28050iZRR7#..CBU,IV5201004-201401

69760CCABLE ASSY, FRONT DOOR INSIDE LOCKING LH

main69750-28050iZRR7#..CBU,IV5201004-201401

8420

84947ACOVER, DOOR ELECTRICAL KEY SWITCH

main84947-68010×2iZRR7#..S,Z;ZRR7#..07S..HTWC..CBU200706-201004

89743CBRACKET, ELECTRICAL KEY WIRE HARNESS

main89743-30130iZRR7#..S,Z;ZRR7#..07S..HTWC..CBU200706-201004

main89743-68010iZRR7#..S,Z;ZRR7#..07S..HTWC..CBU200706-201004

9014850003

main90148-50003

9014860022

main90148-60022

9014880066

main90148-80066

9015940202

main90159-40202

9015950083

main90159-50083

9017905118

main90179-05118

9018905003

main90189-05003

9321964006

main93219-64006

38 parts on this diagram · 1 diagram in section
