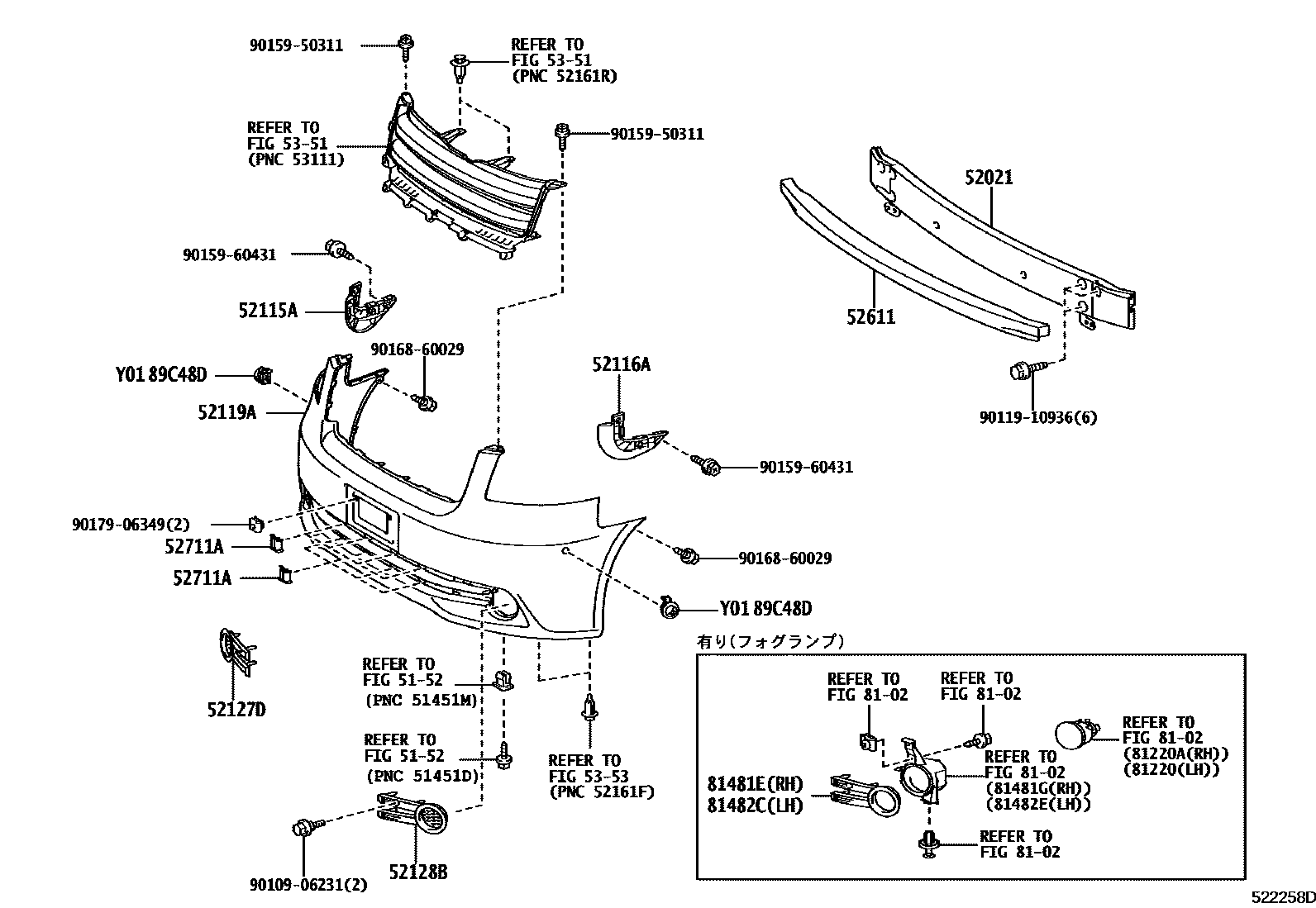

Toyota NOAH/VOXY — FRONT BUMPER & BUMPER STAY
5152SUSPENSION CROSSMEMBER & UNDER COVER
52021REINFORCEMENT SUB-ASSY, FRONT BUMPER
52115ASUPPORT, FRONT BUMPER SIDE, RH
52116ASUPPORT, FRONT BUMPER SIDE, LH
52119ACOVER, FRONT BUMPER
LT.PURPLE M.M.,9AE
WHITE PEARL CS.,070
SILVER ME.,1F7
GRAY ME.,1G3
BLACK,202
WHITE PEARL CS.,070
SILVER ME.,1F7
BLACK,202
DK.VIOLET M.M.,9AF
WHITE PEARL CS.,070
SILVER ME.,1F7
GRAY ME.,1G3
BLACK,202
DEEP RED M.M.,3R9
SILKY GOLD M.M.,5A4
LT.BLUE M.M.,8S1
DK.VIOLET M.M.,9AF
WHITE PEARL CS.,070
SILVER ME.,1F7
GRAY ME.,1G3
BLACK,202
SILKY GOLD M.M.,5A4
DK.VIOLET M.M.,9AF
WHITE PEARL CS.,070
SILVER ME.,1F7
GRAY ME.,1G3
BLACK,202
DEEP RED M.M.,3R9
WHITE PEARL CS.,070
SILVER ME.,1F7
GRAY ME.,1G3
ICE TITANIUM M.M.,1H4
BLACK,202
DEEP RED M.M.,3R9
DK.VIOLET M.M.,9AF
52127DCOVER, FRONT BUMPER HOLE, RH
52128BCOVER, FRONT BUMPER HOLE, LH
52611ABSORBER, FRONT BUMPER ENERGY
52711MOULDING, FRONT BUMPER
52711AGARNISH, FRONT BUMPER
5351RADIATOR GRILLE
5353HOOD & FRONT FENDER
8102FOG LAMP
81481ECOVER, FOG LAMP, RH
81482CCOVER, FOG LAMP, LH
89C48DRETAINER, ULTRASONIC SENSOR, FRONT CORNER
main89348-12010-A1×2iZRR7#..NOAH..(05S,08S)..(X,YY)..CBU; ZRR7#..VOXY..(05S,08S)..(TRASX,X)..CBU; ZRR70..CBU,IV5;ZRR75..07S..HTWC..CBU;ZRR75..(05S,08S)..(CBU,IV5)200706-201004
main89348-12010-B0×2iZRR7#..NOAH..(05S,08S)..(X,YY)..CBU; ZRR7#..VOXY..(05S,08S)..(TRASX,X)..CBU; ZRR70..CBU,IV5;ZRR75..07S..HTWC..CBU;ZRR75..(05S,08S)..(CBU,IV5)200706-201004
main89348-12010-B1×2iZRR7#..NOAH..(05S,08S)..(X,YY)..CBU; ZRR70..NOAH..(CBU,IV5);ZRR75..NOAH..07S..HTWC..CBU;ZRR75..NOAH..(05S,08S)..(CBU,IV5)200706-201004
main89348-12010-C1×2iZRR7#..NOAH..(05S,08S)..(X,YY)..CBU; ZRR7#..VOXY..(05S,08S)..(TRASX,X)..CBU; ZRR70..CBU,IV5;ZRR75..07S..HTWC..CBU;ZRR75..(05S,08S)..(CBU,IV5)200706-201004
main89348-12010-D4×2iZRR7#..(G,V,X)..(CBU,IV5); ZRR7#..NOAH..08S..X..CBU; ZRR7#..VOXY..08S..X..CBU200706-201004
main89348-12010-J0×2iZRR7#..(G,V,X)..(CBU,IV5); ZRR7#..NOAH..08S..X..CBU; ZRR7#..VOXY..08S..X..CBU200706-201004
main89348-12010-J1×2iZRR7#..(G,V,X)..(CBU,IV5); ZRR7#..NOAH..08S..X..CBU; ZRR7#..VOXY..08S..X..CBU200706-201004
main89348-12010-K0×2iZRR7#..VOXY..(05S,08S)..(TRASX,X)..CBU; ZRR70..VOXY..(CBU,IV5);ZRR75..VOXY..07S..HTWC..CBU;ZRR75..VOXY..(05S,08S)..(CBU,IV5)200706-201004
9010906231
main90109-06231
9011910936
main90119-10936
9015950311
main90159-50311
9015960431
main90159-60431
9016860029
main90168-60029
9017906349
main90179-06349
22 parts on this diagram · 10 diagrams in section
FRONT BUMPER & BUMPER STAY for Toyota NOAH/VOXY
This section contains 44 genuine Toyota parts for the FRONT BUMPER & BUMPER STAY system of the Toyota NOAH/VOXY. Key components include: SUSPENSION CROSSMEMBER & UNDER COVER, REINFORCEMENT SUB-ASSY, FRONT BUMPER, COVER ASSY, FRONT BUMPER HOLE, RH, COVER ASSY, FRONT BUMPER HOLE, LH, SUPPORT, FRONT BUMPER SIDE, RH.
