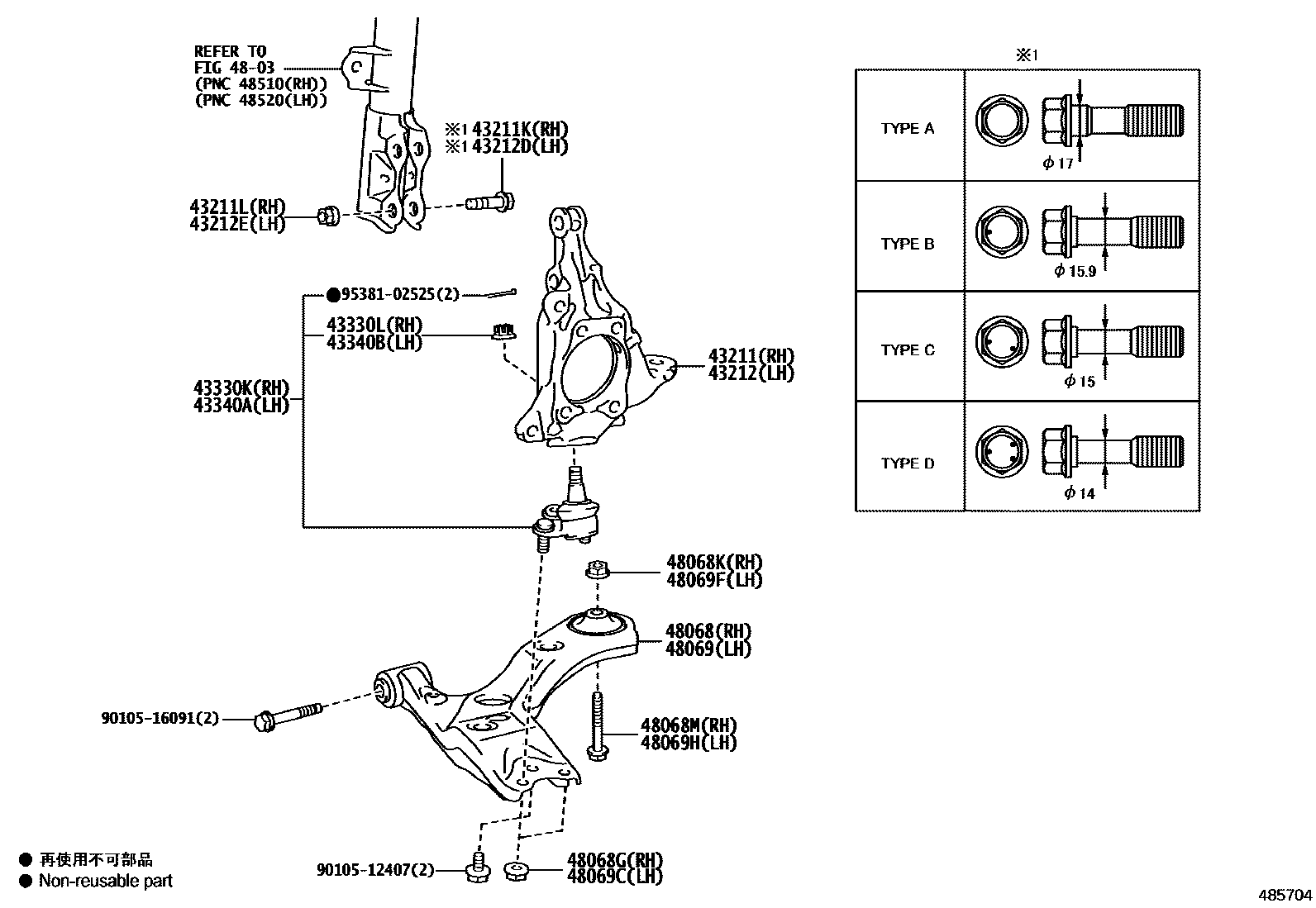

Toyota NOAH/VOXY — FRONT AXLE ARM & STEERING KNUCKLE

43211KNUCKLE, STEERING, RH

main43211-28150i202201

43211KBOLT (FOR STEERING KNUCKLE RH)

main90105-17013×2i202201

main90105-17014×2i202201-202501

main90105-17015×2i202201-202501

main90105-17021×2i202201

43211LNUT (FOR STEERING KNUCKLE RH)

main90178-17002×2i202201

43212KNUCKLE, STEERING, LH

main43212-28130i202201-202501

43212DBOLT (FOR STEERING KNUCKLE LH)

main90105-17013×2i202201-202501

main90105-17014×2i202201

main90105-17015×2i202201-202501

main90105-17021×2i202201-202501

43212ENUT (FOR STEERING KNUCKLE LH)

main90178-17002×2i202201-202501

43330KJOINT ASSY, LOWER BALL, FRONT RH

main43330-29625i202201-202501

43330LNUT, CASTLE (FOR FRONT LOWER BALL JOINT RH)

main90171-14003i202201-202501

43340AJOINT ASSY, LOWER BALL, FRONT LH

main43330-29625i202201-202501

43340BNUT, CASTLE (FOR FRONT LOWER BALL JOINT LH)

main90171-14003i202201-202501

4803FRONT SPRING & SHOCK ABSORBER

→ Go to FIG 48-03

48068ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH

main48068-28170i202201-202501

48068GNUT(FOR FRONT SUSPENSION LOWER ARM NO.1 RH)

main90178-12019×2i202201-202501

48068KNUT(FOR FRONT SUSPENSION LOWER ARM NO.2 RH)

main90179-14068i202201-202501

48068MBOLT(FOR FRONT SUSPENSION LOWER ARM NO.2 RH)

main90119-14180i202201-202501

48069ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH

main48069-28170i202201-202501

48069CNUT(FOR FRONT SUSPENSION LOWER ARM NO.1 LH)

main90178-12019×2i202201-202501

48069FNUT(FOR FRONT SUSPENSION LOWER ARM NO.2 LH)

main90179-14068i202201-202501

48069HBOLT(FOR FRONT SUSPENSION LOWER ARM NO.2 LH)

main90119-14180i202201-202501

9010512407

main90105-12407

9010516091

main90105-16091

9538102525

main95381-02525

22 parts on this diagram · 1 diagram in section

FRONT AXLE ARM & STEERING KNUCKLE for Toyota NOAH/VOXY

This section contains 22 genuine Toyota parts for the FRONT AXLE ARM & STEERING KNUCKLE system of the Toyota NOAH/VOXY. Key components include: KNUCKLE, STEERING, RH, BOLT (FOR STEERING KNUCKLE RH), NUT (FOR STEERING KNUCKLE RH), KNUCKLE, STEERING, LH, BOLT (FOR STEERING KNUCKLE LH).
