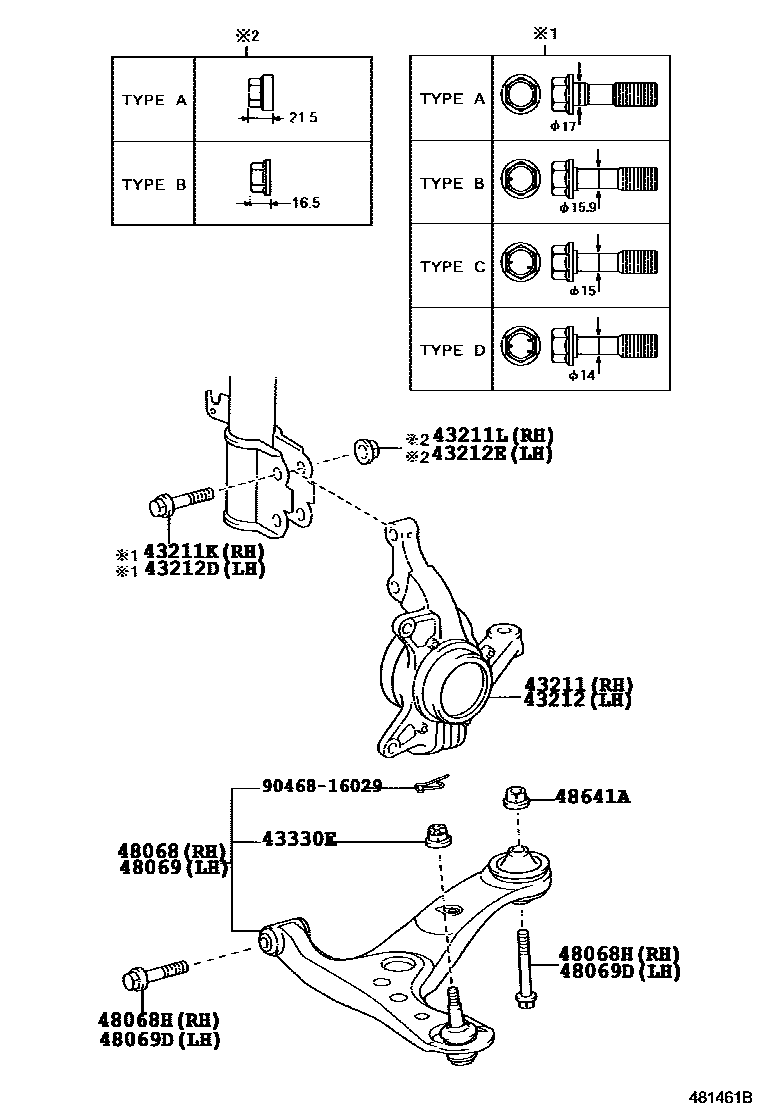

Toyota NOAH/VOXY — FRONT AXLE ARM & STEERING KNUCKLE

43211KNUCKLE, STEERING, RH

main43211-44040i200111-200408

main43211-44050i200111-200408

43211KBOLT (FOR STEERING KNUCKLE RH)

main90105-17003i200111-200408

main90105-17004i200111-200408

main90105-17005i200111-200408

main90105-17008i200111-200408

main90105-17008i200408

main90105-17013i200408

main90105-17014i200408

main90105-17015i200408

43211LNUT (FOR STEERING KNUCKLE RH)

main90178-17001i200111-200408

main90178-17001i200408

main90179-17001i200111-200408

43212KNUCKLE, STEERING, LH

main43212-44040i200111-200408

main43212-44050i200111-200408

43212DBOLT (FOR STEERING KNUCKLE LH)

main90105-17003i200111-200408

main90105-17004i200111-200408

main90105-17005i200111-200408

main90105-17008i200111-200408

main90105-17008i200408

main90105-17013i200408

main90105-17014i200408

main90105-17015i200408

43212ENUT (FOR STEERING KNUCKLE LH)

main90178-17001i200408

main90178-17001i200111-200408

main90179-17001i200111-200408

43330ENUT, CASTLE (FOR FRONT LOWER BALL JOINT SETTING)

main90171-14011i200111-200408

48068ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH

main48068-29235i200111-200507

sub48068-29245

main48068-29245i200508

sub48068-29255

48068HBOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 RH)

main90119-14086i200111-200408

48069ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH

main48069-29235i200111-200507

sub48069-29245

main48069-29245i200508

sub48069-29255

48069DBOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 LH)

main90119-14086i200111-200408

48641ANUT(FOR SUSPENSION LOWER ARM SHAFT)

main90179-14068i200111-200408

9046816029

main90468-16029

13 parts on this diagram · 1 diagram in section
