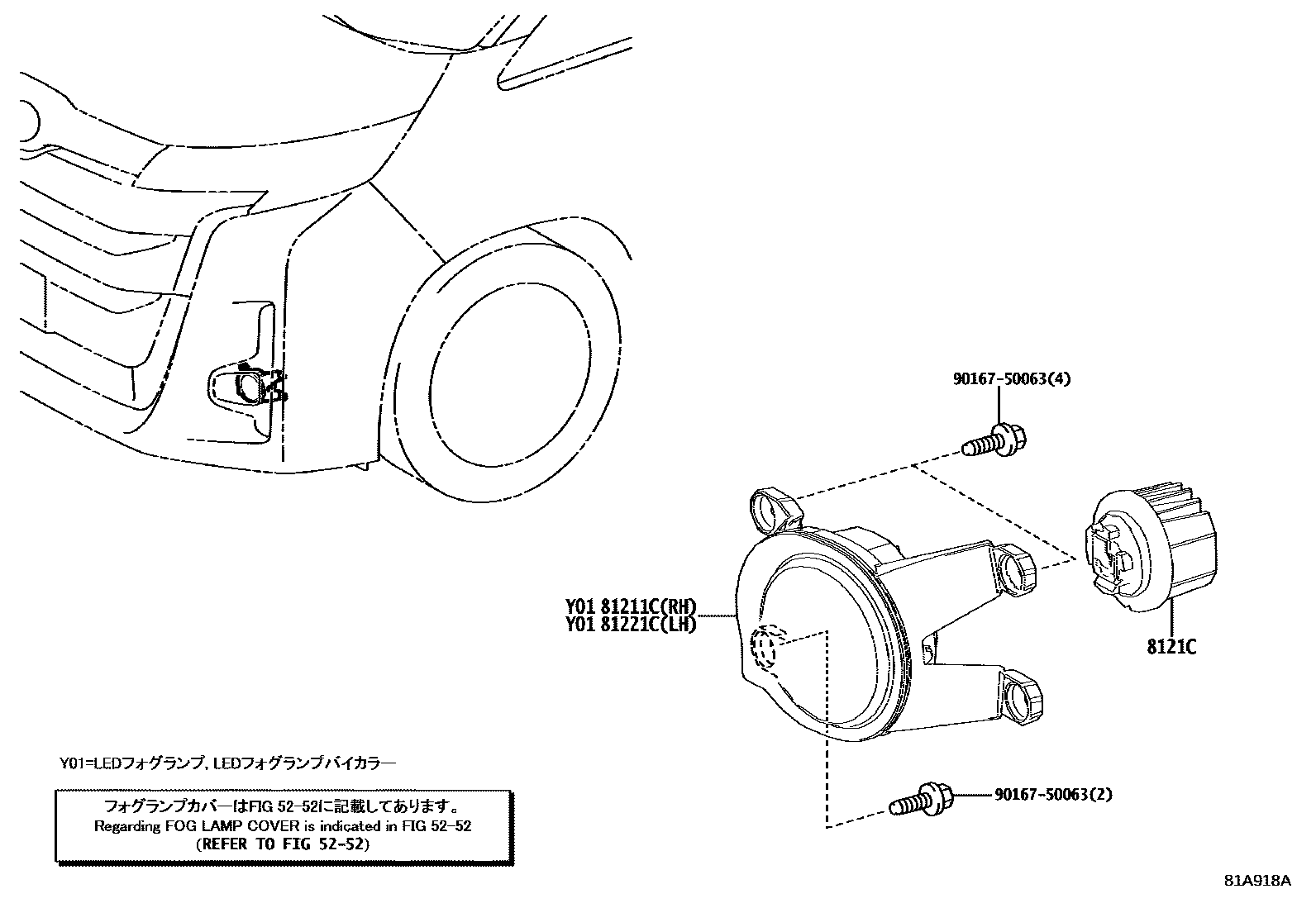

Toyota NOAH/VOXY — FOG LAMP

5252FRONT BUMPER & BUMPER STAY

→ Go to FIG 52-52

81211CLAMP UNIT, FOG LAMP, RH

main81211-52140i202201-202501

8121CLED, FOG LAMP

main8121C-52140×2i202201-202204

main81965-52050×2i202204-202501

81221CLAMP UNIT, FOG LAMP, LH

main81221-52120i202201-202501

9016750063

main90167-50063

5 parts on this diagram · 2 diagrams in section

FOG LAMP for Toyota NOAH/VOXY

This section contains 9 genuine Toyota parts for the FOG LAMP system of the Toyota NOAH/VOXY. Key components include: FRONT BUMPER & BUMPER STAY, LAMP ASSY, FOG, RH, LAMP UNIT, FOG LAMP, RH, BRACKET, FOG LAMP, RH, LED, FOG LAMP.
