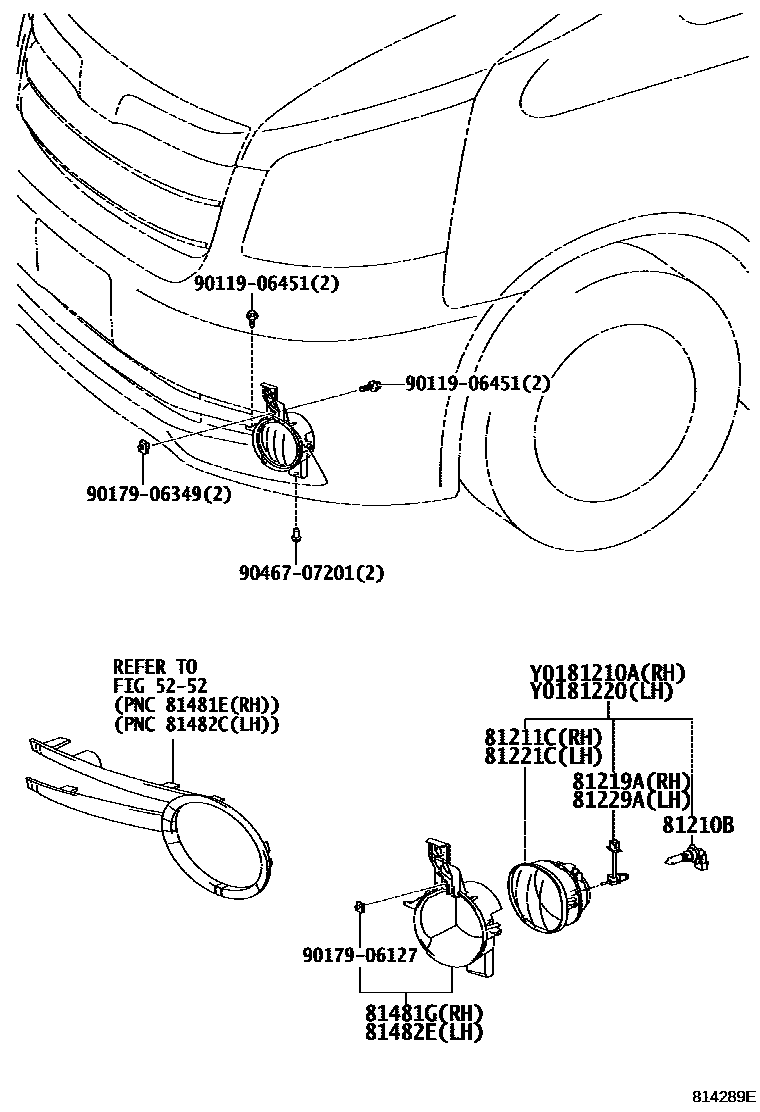

Toyota NOAH/VOXY — FOG LAMP
5252FRONT BUMPER & BUMPER STAY
81210ALAMP ASSY, FOG, RH
main81210-0W050iZRR7#..(G,SI,V,ZS)..(CBU,IV5); ZRR7#..(S,TRASX,X,YY,Z)..(CBU,IV5); ZRR70..(SI,ZS)..CBU201004-201401
81210BBULB, FOG LAMP
81211CLAMP UNIT, FOG LAMP, RH
81219ABRACKET, FOG LAMP, RH
81220LAMP ASSY, FOG, LH
main81220-0W040iZRR7#..(G,SI,V,ZS)..(CBU,IV5); ZRR7#..(S,TRASX,X,YY,Z)..(CBU,IV5); ZRR70..(SI,ZS)..CBU201004-201401
81221CLAMP UNIT, FOG LAMP, LH
81229ABRACKET, FOG LAMP, LH
81481GBRACKET, FOG LAMP, RH
81482EBRACKET, FOG LAMP, LH
9011906451
main90119-06451
9017906127
main90179-06127
9017906349
main90179-06349
9046707201
main90467-07201
14 parts on this diagram · 5 diagrams in section
FOG LAMP for Toyota NOAH/VOXY
This section contains 17 genuine Toyota parts for the FOG LAMP system of the Toyota NOAH/VOXY. Key components include: FRONT BUMPER & BUMPER STAY, LAMP ASSY, FOG, RH, BULB, FOG LAMP, LAMP UNIT, FOG LAMP, RH, BRACKET, FOG LAMP, RH.
