Toyota NOAH/VOXY — FOG LAMP

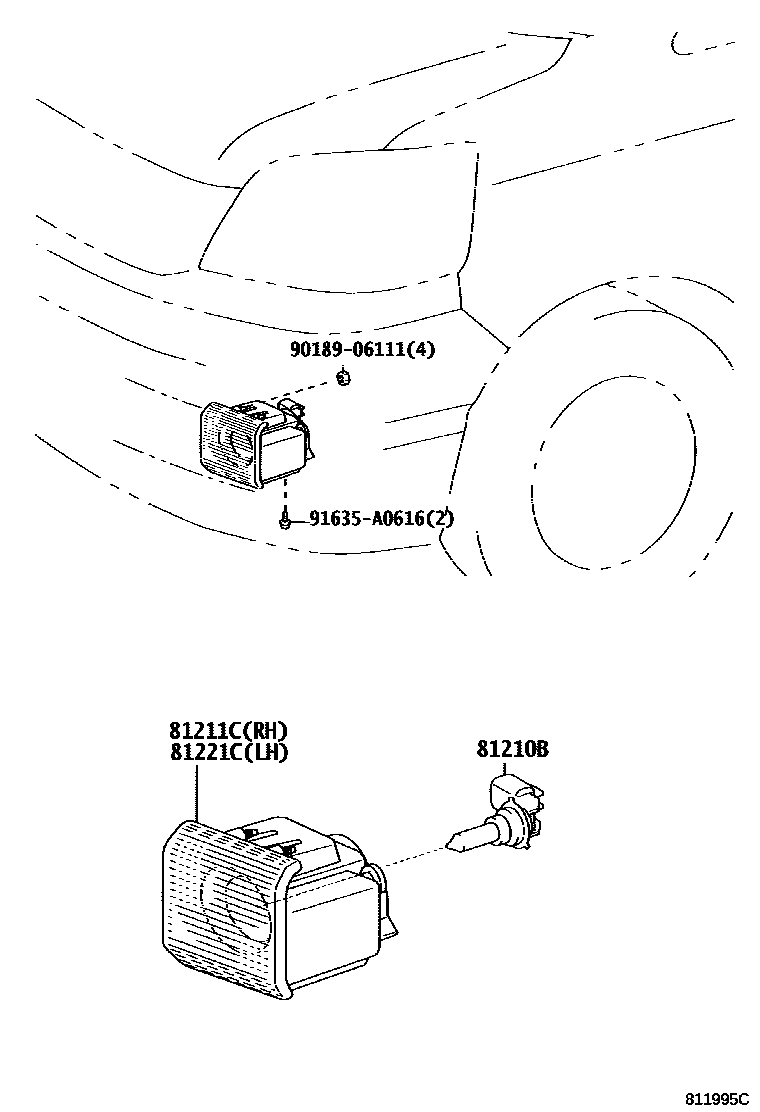

Parts diagram

81210BBULB, FOG LAMP

main90981-13047×2i200111-200408

main90981-13057×2i200111-200408

81211CLAMP UNIT, FOG LAMP, RH

main81211-13040i200111-200408

main81211-28160i200111-200408

main81211-42050i200408

main81211-52050i200111-200408

main81211-52051i200505-200704

main81211-52052i200704

81221CLAMP UNIT, FOG LAMP, LH

main81221-13040i200111-200408

main81221-28160i200111-200408

main81221-42050i200408

main81221-52050i200304-200308

main81221-52051i200505-200704

main81221-52052i200704

9018906111

main90189-06111

91635A0616

main91635-A0616

5 parts on this diagram · 6 diagrams in section

FOG LAMP for Toyota NOAH/VOXY

This section contains 17 genuine Toyota parts for the FOG LAMP system of the Toyota NOAH/VOXY. Key components include: BEARING FOG LAMP, LAMP ASSY, FOG, RH, BULB, FOG LAMP, LAMP UNIT, FOG LAMP, RH, COVER, FOG LAMP.
