Toyota NOAH/VOXY — FLOOR INSULATOR

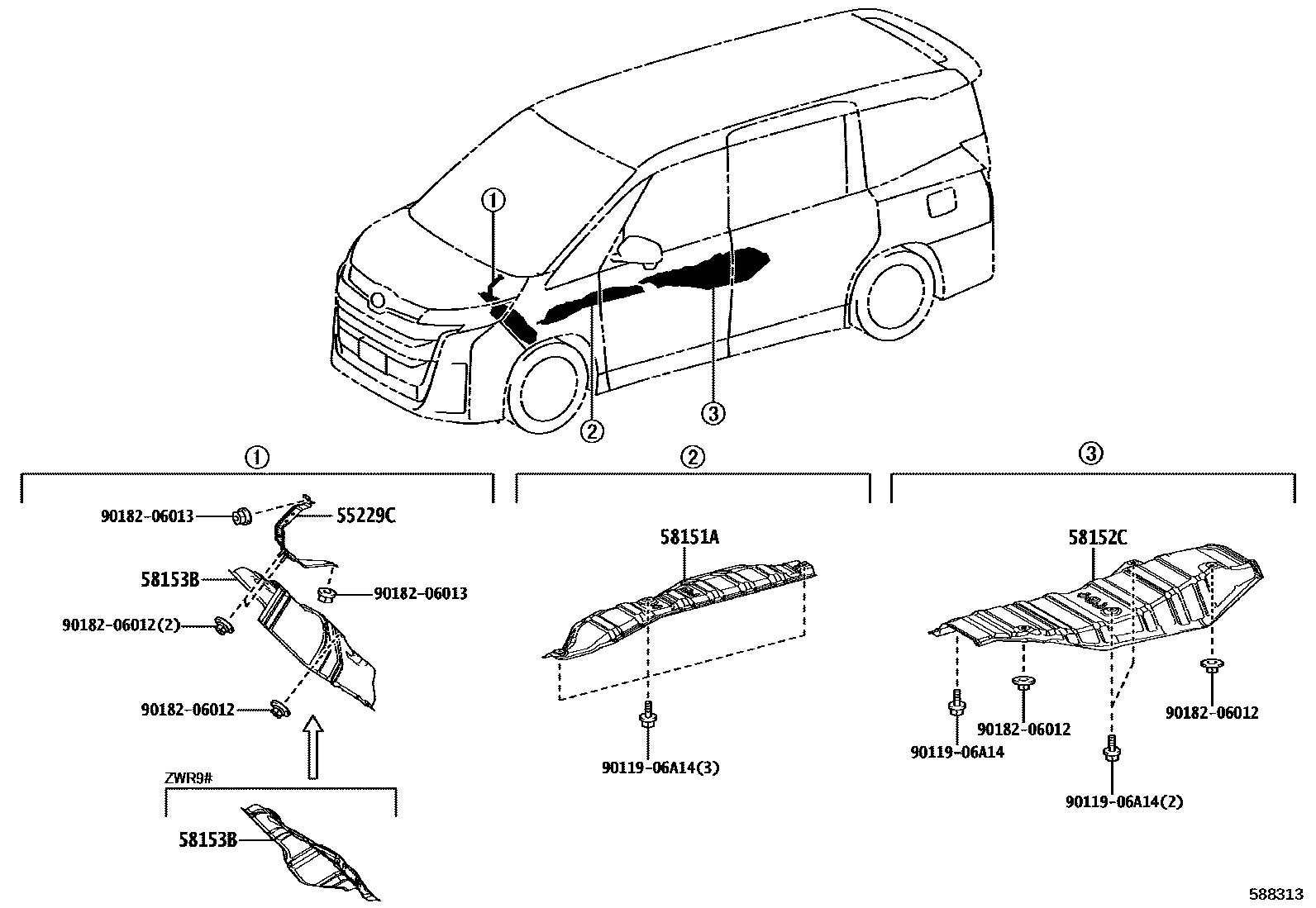

Parts diagram
55229CPLATE, DASH PANEL INSULATOR, NO.4
main55204-V1010i202201
58151AINSULATOR, FLOOR HEAT, NO.1
main58151-V1011i202201-202501
58152CINSULATOR, FLOOR HEAT, NO.2
main58152-V1010i202201
58153BINSULATOR, FLOOR HEAT, NO.3
main58153-V1010i202201-202501
main58153-V1020i202201-202501
9011906A14
main90119-06A14
9018206012
main90182-06012
9018206013
main90182-06013

7 parts on this diagram · 1 diagram in section

FLOOR INSULATOR for Toyota NOAH/VOXY

This section contains 7 genuine Toyota parts for the FLOOR INSULATOR system of the Toyota NOAH/VOXY. Key components include: PLATE, DASH PANEL INSULATOR, NO.4, INSULATOR, FLOOR HEAT, NO.1, INSULATOR, FLOOR HEAT, NO.2, INSULATOR, FLOOR HEAT, NO.3.
