Toyota NOAH/VOXY — FLOOR INSULATOR

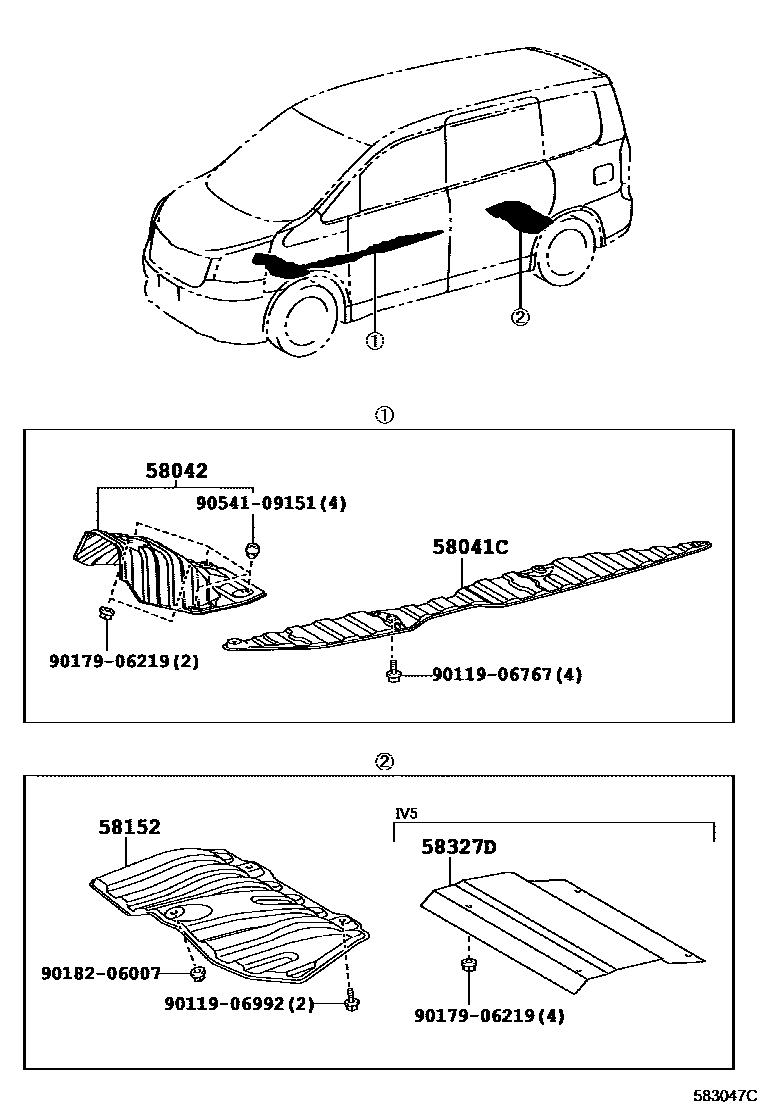

Parts diagram

58041CINSULATOR SUB-ASSY, FRONT FLOOR HEAT, NO.1

main58041-28040i201004-201401

58042INSULATOR SUB-ASSY, FRONT FLOOR HEAT, NO.2

main58042-28030i200706-201004

58152INSULATOR SUB-ASSY, CENTER FLOOR HEAT, NO.2

main58152-28070i201004-201401

main58152-44020i200706-201004

58327DINSULATOR, MAIN MUFFLER HEAT, UPPER

main58327-28030i200706-201004

main58327-28040i201004-201401

9011906767

main90119-06767

9011906992

main90119-06992

9017906219

main90179-06219

9018206007

main90182-06007

9054109151

main90541-09151

9 parts on this diagram · 2 diagrams in section

FLOOR INSULATOR for Toyota NOAH/VOXY

This section contains 11 genuine Toyota parts for the FLOOR INSULATOR system of the Toyota NOAH/VOXY. Key components include: INSULATOR SUB-ASSY, FRONT FLOOR HEAT, NO.1, INSULATOR SUB-ASSY, FRONT FLOOR HEAT, NO.2, INSULATOR, FRONT FLOOR HEAT, NO.1, INSULATOR SUB-ASSY, CENTER FLOOR HEAT, NO.2, INSULATOR, FRONT FLOOR HEAT, NO.4.
