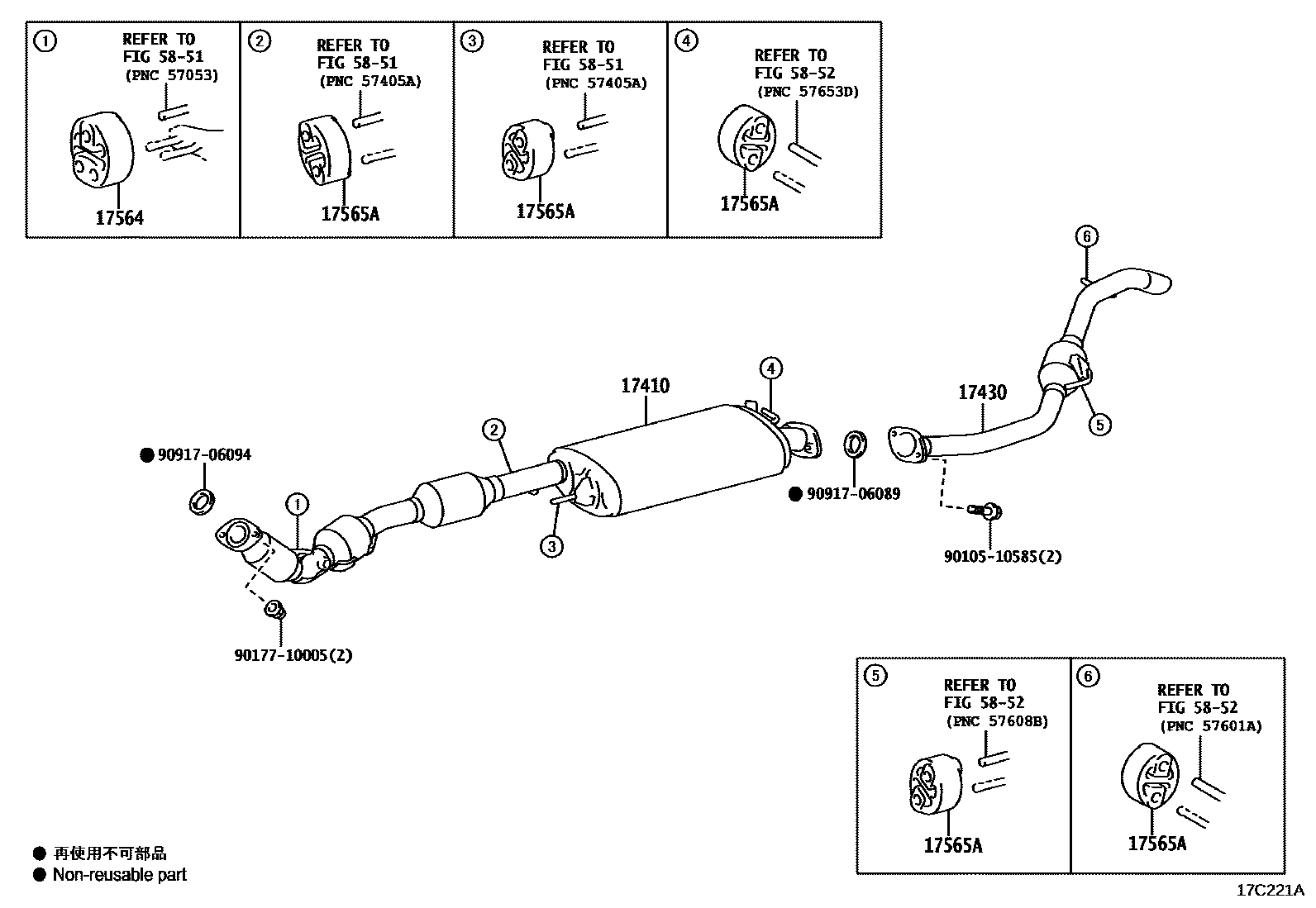

Toyota NOAH/VOXY — EXHAUST PIPE
17410PIPE ASSY, EXHAUST, FRONT
17430PIPE ASSY, EXHAUST, TAIL
17564SUPPORT,EXHAUST PIPE, NO.4
17565ASUPPORT, EXHAUST PIPE, NO.4
main17565-22040×5iM20AFKS..MZRA95..IV5;M20AFKS..MZRA92..08S..SG;M20AFKS,2ZRFXE..MZRA9#,ZWR9#..G,Z202201-202501
5851FRONT FLOOR PANEL & FRONT FLOOR MEMBER
5852REAR FLOOR PANEL & REAR FLOOR MEMBER
9010510585
main90105-10585
9017710005
main90177-10005
9091706089
main90917-06089
9091706094
main90917-06094
10 parts on this diagram · 4 diagrams in section
EXHAUST PIPE for Toyota NOAH/VOXY
This section contains 15 genuine Toyota parts for the EXHAUST PIPE system of the Toyota NOAH/VOXY. Key components include: PIPE ASSY, EXHAUST, FRONT, PIPE ASSY, EXHAUST, TAIL, GASKET, EXHAUST PIPE, NO.2, SUPPORT,EXHAUST PIPE, NO.4, SUPPORT, EXHAUST PIPE, NO.4.
