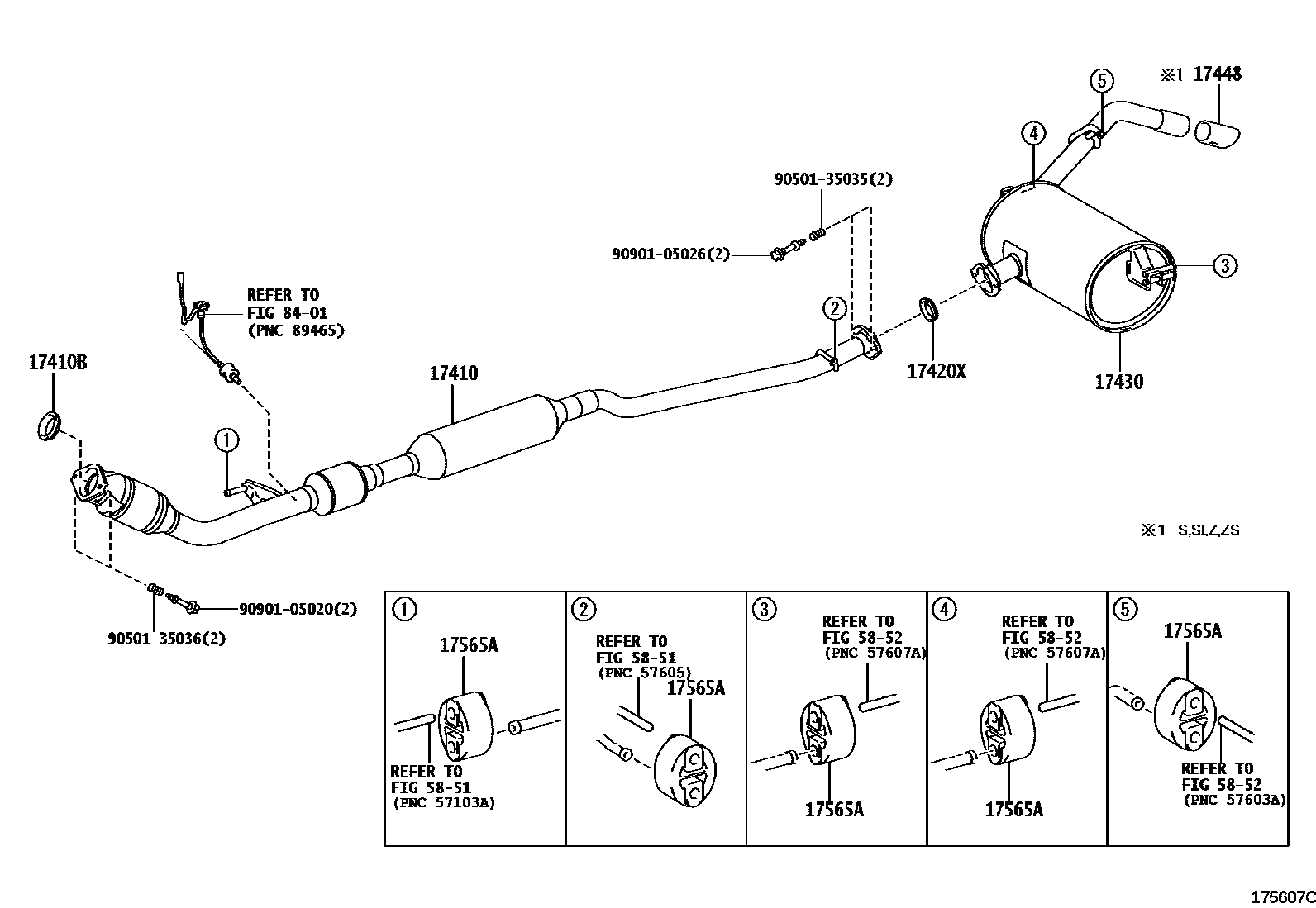

Toyota NOAH/VOXY — EXHAUST PIPE

0001 1 0002 1 0003 1 0004 1 0005 1G'S OR G'S-VERSION EDGE

17410PIPE ASSY, EXHAUST, FRONT

main17410-37200i3ZRFAE,3ZRFE..ZRR70..CBU,IV5200706-201004

main17410-37210i3ZRFAE,3ZRFE..ZRR75..CBU200706-201004

main17410-37230i3ZRFE..ZRR75..IV5200706-201004

main17410-37231i3ZRFAE..ZRR75..IV5201004-201401

main17410-37450i3ZRFAE..ZRR70..CBU,IV5201004-201401

main17410-37460i3ZRFAE..ZRR75..CBU201004-201401

17410BGASKET, EXHAUST PIPE

main17451-28040i3ZRFAE,3ZRFE..ZRR7#..CBU,IV5200706-201401

sub17451-28041

17420XGASKET, EXHAUST PIPE, CENTER

main17451-28020i3ZRFAE,3ZRFE..ZRR70..CBU,IV5200706-200707

sub17451-28021

main17451-28021i3ZRFAE,3ZRFE..ZRR70..CBU,IV5200708-201102

sub17451-28022

main17451-28022i3ZRFAE..ZRR70..CBU,IV5201103-201401

main90917-06073i3ZRFAE,3ZRFE..ZRR75..CBU,IV5200706-201401

17430PIPE ASSY, EXHAUST, TAIL

main17430-37190i3ZRFAE,3ZRFE..ZRR70..CBU200706-201401

main17430-37210i3ZRFAE,3ZRFE..ZRR75..CBU200706-201001

sub17430-37211

main17430-37211i3ZRFAE,3ZRFE..ZRR75..CBU201002-201401

main17430-37240i3ZRFAE..ZRR70..IV5200706-201401

main17430-37250i3ZRFAE..ZRR75..IV5200706-201005

sub17430-37251

main17430-37251i3ZRFAE..ZRR75..IV5201005-201401

17448BAFFLE, TAILPIPE

main17448-74080i3ZRFAE,3ZRFE..ZRR7#..(S,SI,Z,ZS)..CBU200706-201401

17565SUPPORT, EXHAUST PIPE, NO.5

main17565-64180i3ZRFAE,3ZRFE..ZRR75..CBU200706-201401

17565ASUPPORT, EXHAUST PIPE, NO.4

main17565-22040i3ZRFAE,3ZRFE..ZRR75..CBU200706-201401

5851

5852

8401

9050135035

main90501-35035

9050135036

main90501-35036

9090105020

main90901-05020

9090105026

main90901-05026

14 parts on this diagram · 5 diagrams in section
