Toyota NOAH/VOXY — EXHAUST GAS RECIRCULATION SYSTEM

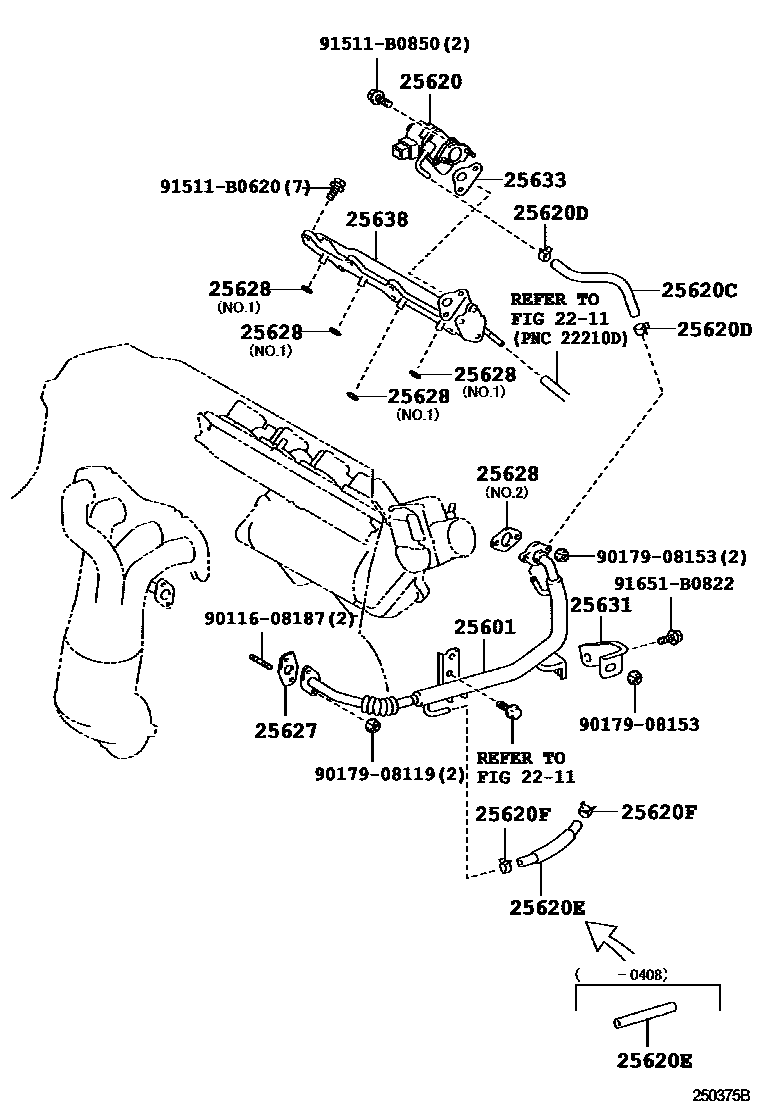

Parts diagram

2211FUEL INJECTION SYSTEM

→ Go to FIG 22-11

25601PIPE SUB-ASSY, EGR, NO.1

main25611-28010i200111-200507

main25611-28011i200507

25620VALVE ASSY, EGR

main25620-28090i200111-200408

main25620-28100i200408

25620CHOSE, WATER BY-PASS, NO.1

main99555-10100i200111-200408

25620DCLIP(FOR WATER BY-PASS HOSE, NO.1)

main96135-51300i200111-200408

25620EHOSE, WATER BY-PASS NO.2

main16264-28070i200408

main99555-10200i200111-200408

25620FCLIP(FOR WATER BY-PASS HOSE, NO.2)

main96135-51300i200111-200408

25627GASKET, EGR VALVE

main25627-74080i200111-200408

25628GASKET, EGR INLET

main25628-28010i200111-200706

main25628-28030i200111-200706

25631STAY, EGR PIPE, NO.1

main25631-28010i200111-200408

25633GASKET, EGR VALVE

main25633-28010i200111-200408

25638CHAMBER, EGR DELIVERY

main25638-28010i200111-200408

main25638-28030i200408

9011608187

main90116-08187

9017908119

main90179-08119

9017908153

main90179-08153

91511B0620

main91511-B0620

91511B0850

main91511-B0850

91651B0822

main91651-B0822

18 parts on this diagram · 1 diagram in section

EXHAUST GAS RECIRCULATION SYSTEM for Toyota NOAH/VOXY

This section contains 18 genuine Toyota parts for the EXHAUST GAS RECIRCULATION SYSTEM system of the Toyota NOAH/VOXY. Key components include: FUEL INJECTION SYSTEM, PIPE SUB-ASSY, EGR, NO.1, VALVE ASSY, EGR, HOSE, WATER BY-PASS, NO.1, CLIP(FOR WATER BY-PASS HOSE, NO.1).

Toyota NOAH/VOXY EXHAUST GAS RECIRCULATION SYSTEM — Parts Diagram | EPC Data
