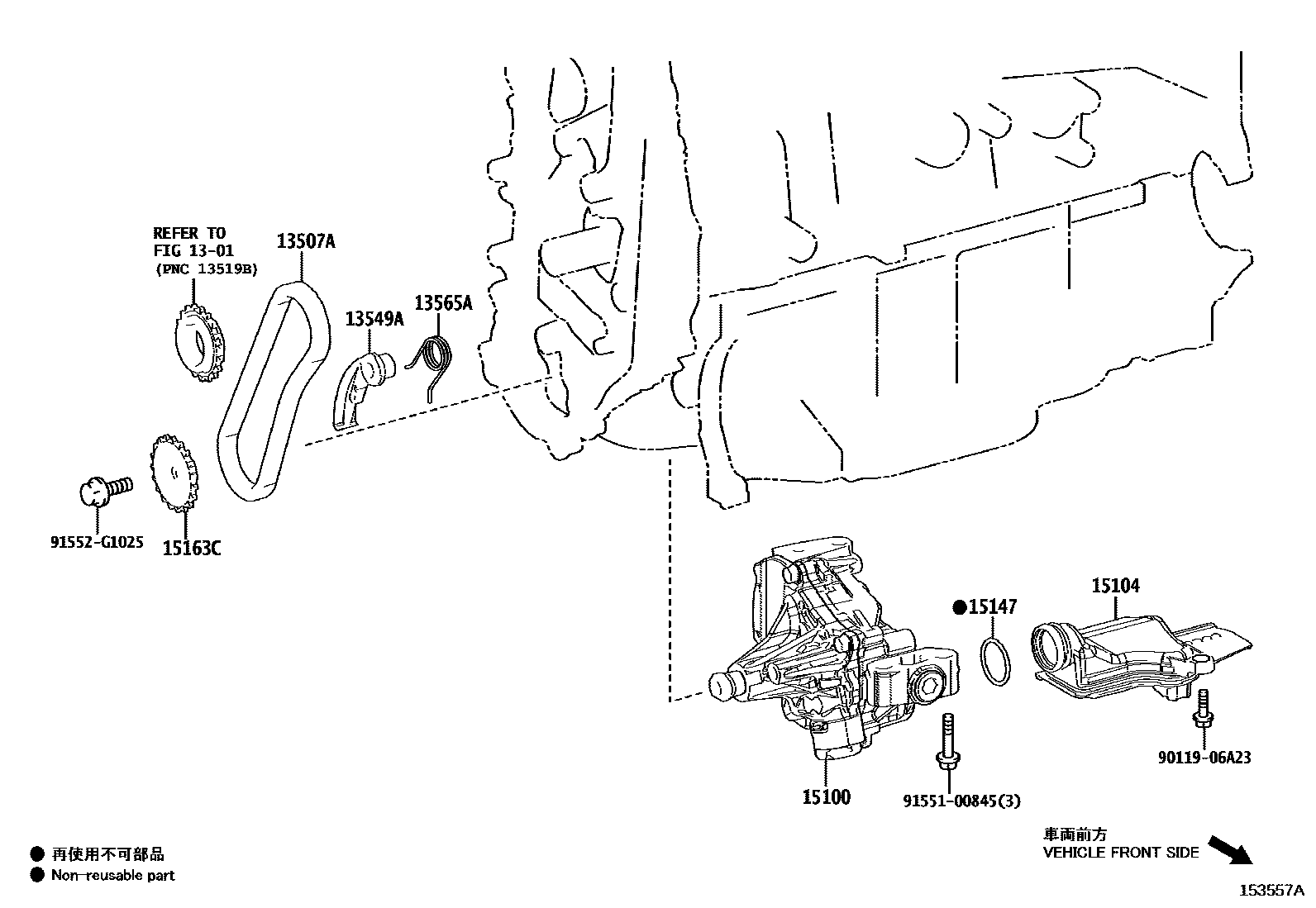

Toyota NOAH/VOXY — ENGINE OIL PUMP
1301CRANKSHAFT & PISTON
13507ACHAIN SUB-ASSY, OIL PUMP DRIVE
main13507-24020iM20AFKS..MZRA92..08S..X;M20AFKS..MZRA92..07S..(SG,X);M20AFKS..MZRA90,95,97..(SG,SZ,X)..CBU202201-202605
13549APLATE, CHAIN TENSIONER
13565ASPRING, CHAIN DAMPER
15100PUMP ASSY, OIL
15104STRAINER SUB-ASSY, OIL
main15104-24010iM20AFKS..MZRA92..08S..X;M20AFKS..MZRA92..07S..(SG,X);M20AFKS..MZRA90,95,97..(SG,SZ,X)..CBU202201-202605
15147GASKET, OIL STRAINER
15163GEAR, OIL PUMP DRIVE SHAFT
15163CSPROCKET, OIL PUMP DRIVE SHAFT
9011906A23
main90119-06A23
9155100845
main91551-00845
91552G1025
main91552-G1025
12 parts on this diagram · 2 diagrams in section
ENGINE OIL PUMP for Toyota NOAH/VOXY
This section contains 20 genuine Toyota parts for the ENGINE OIL PUMP system of the Toyota NOAH/VOXY. Key components include: CRANKSHAFT & PISTON, CHAIN SUB-ASSY, OIL PUMP DRIVE, PLATE, CHAIN TENSIONER, SPRING, CHAIN DAMPER, COVER SUB-ASSY, OIL PUMP.
