Toyota NOAH/VOXY — ENGINE OIL PUMP

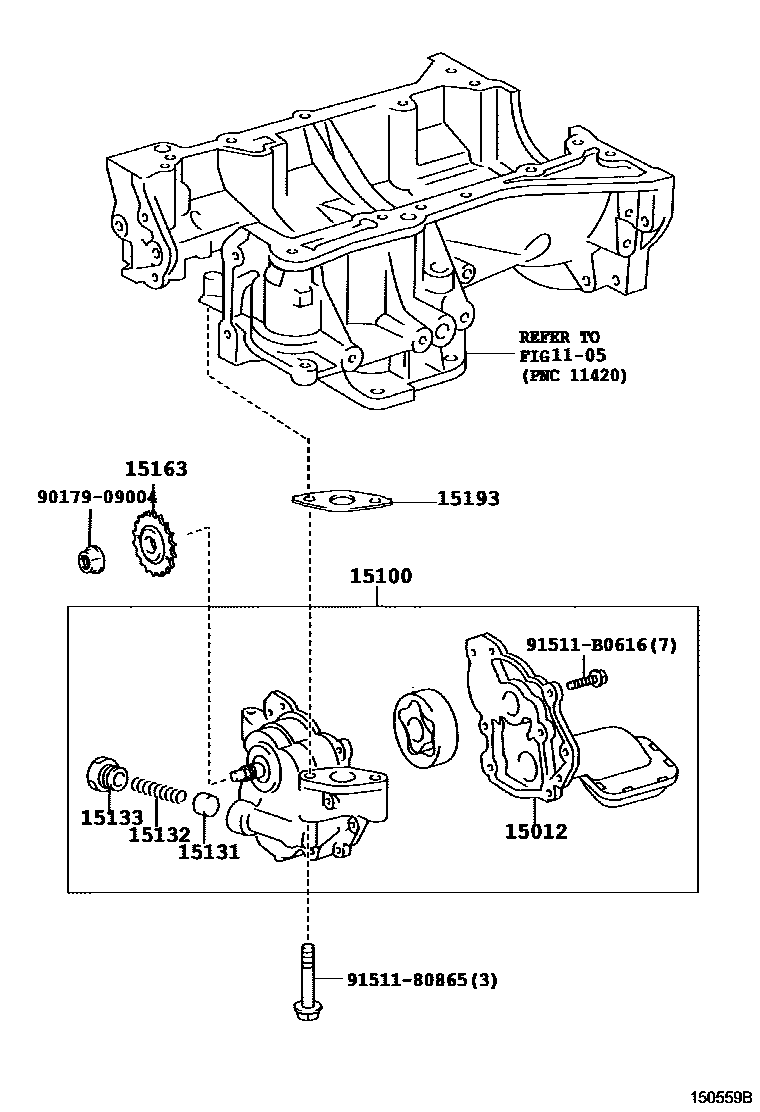

Parts diagram

1105CYLINDER BLOCK

→ Go to FIG 11-05

15012COVER SUB-ASSY, OIL PUMP

main15012-28030i200111-200408

main15012-28040i200408

15100PUMP ASSY, OIL

main15100-28030i200111-200408

main15100-28040i200408

15131VALVE, OIL PUMP RELIEF

main15131-46040i200111-200408

15132SPRING, OIL PUMP RELIEF VALVE

main15132-28020i200111-200408

main15132-46020i200505

15133PLUG, OIL PUMP RELIEF VALVE

main15133-28020i200111-200408

15163GEAR, OIL PUMP DRIVE SHAFT

main15163-28010i200111-200408

main15163-28020i200408

15193GASKET, OIL PUMP

main15193-28010i200111-200408

9017909004

main90179-09004

9151180865

main91511-80865

91511B0616

main91511-B0616

11 parts on this diagram · 2 diagrams in section

ENGINE OIL PUMP for Toyota NOAH/VOXY

This section contains 16 genuine Toyota parts for the ENGINE OIL PUMP system of the Toyota NOAH/VOXY. Key components include: CYLINDER BLOCK, COVER SUB-ASSY, OIL PUMP, PUMP ASSY, OIL, VALVE, OIL PUMP RELIEF, SPRING, OIL PUMP RELIEF VALVE.
