Toyota NOAH/VOXY — ELECTRONIC MODULATED SUSPENSION

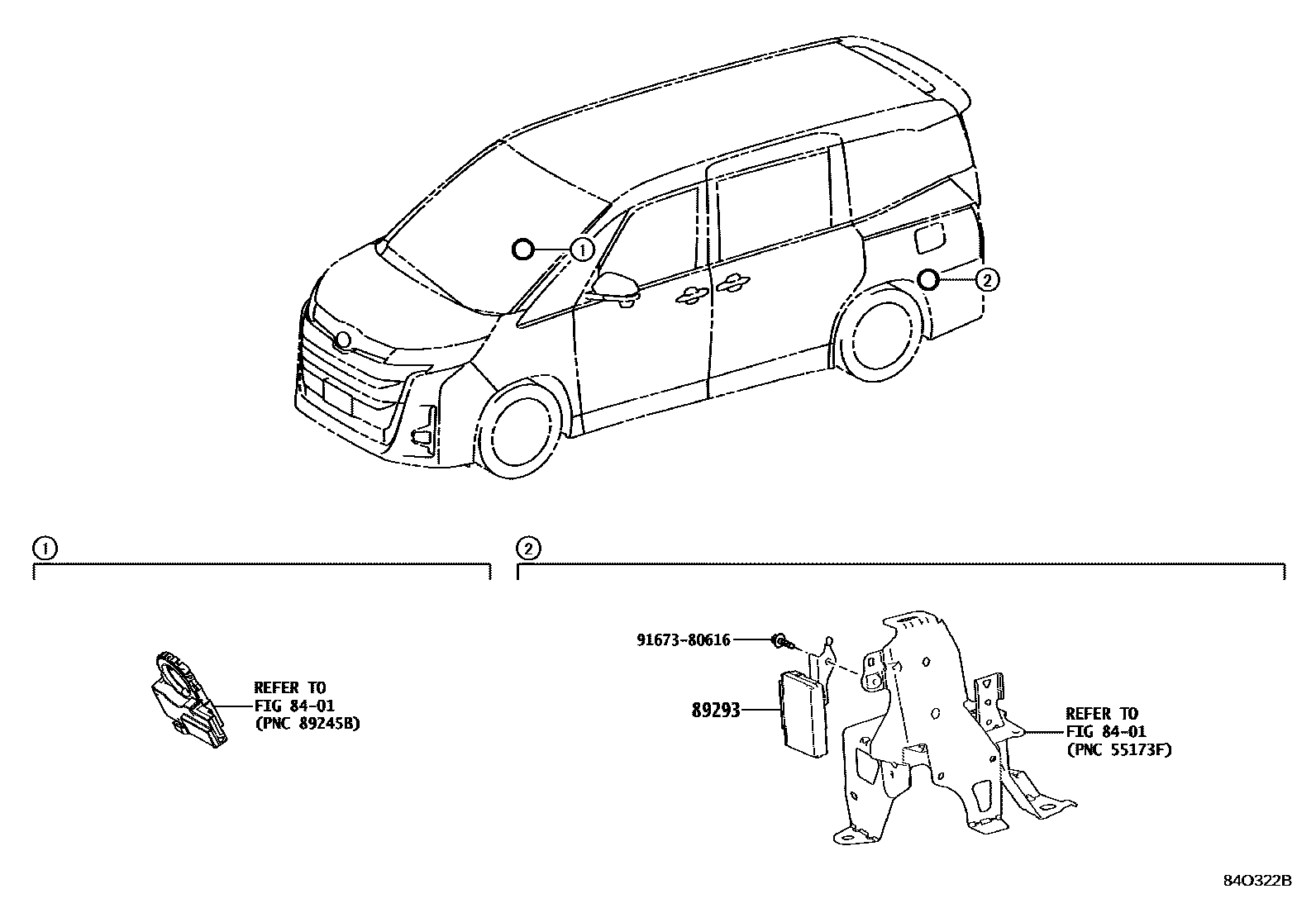

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

89293COMPUTER, SUSPENSION CONTROL

main89293-28020i202201-202403

main89293-28021i202404-202501

9167380616

main91673-80616

3 parts on this diagram · 1 diagram in section

ELECTRONIC MODULATED SUSPENSION for Toyota NOAH/VOXY

This section contains 3 genuine Toyota parts for the ELECTRONIC MODULATED SUSPENSION system of the Toyota NOAH/VOXY. Key components include: SWITCH & RELAY & COMPUTER, COMPUTER, SUSPENSION CONTROL.
