Toyota NOAH/VOXY — ELECTRONIC FUEL INJECTION SYSTEM

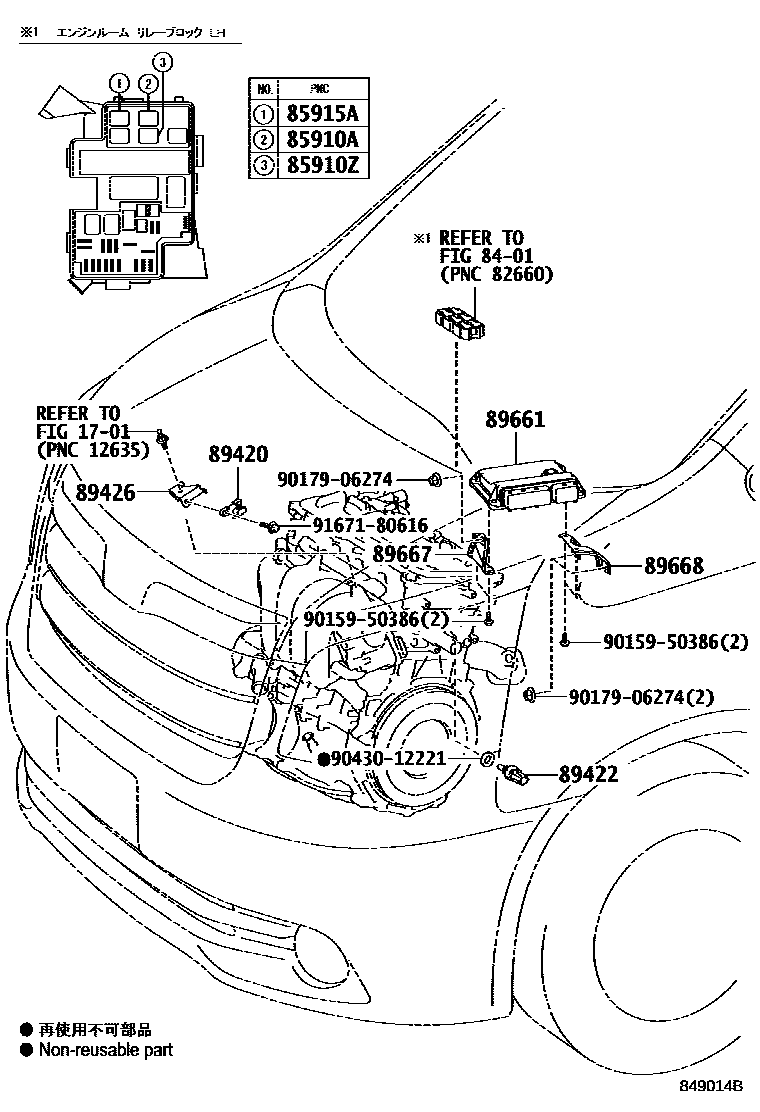

Parts diagram

1701MANIFOLD

→ Go to FIG 17-01

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

85910ARELAY ASSY, CIRCUIT OPENING (FOR EFI)

main90987-02024i200706-201401

85910ZRELAY, INJECTION (FOR EFI)

main90987-02024i200706-201401

85915ARELAY, MAIN

main90987-02024i200706-201401

89420SENSOR ASSY, VACUUM

main89421-26030i200706-201401

89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)

main89422-33030i200706-201401

89426BRACKET, VACUUM SENSOR

main89426-28080i200706-201401

89661COMPUTER, ENGINE CONTROL

main89661-28C40i200706-200802

main89661-28C41i200803-201004

main89661-28C50i200706-200802

main89661-28C51i200803-201004

main89661-28C60i200706-200711

main89661-28C61i200712-201004

main89661-28C70i200706-200711

main89661-28C71i200712-201004

main89661-28E20i201004-201102

main89661-28E21i201103-201201

main89661-28E22i201202-201401

main89661-28E30i201004-201102

main89661-28E31i201103-201201

main89661-28E32i201202-201401

89667BRACKET, ENGINE CONTROL COMPUTER

main89667-28140i200706-201401

89668BRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-28140i200706-201401

9015950386

main90159-50386

9017906274

main90179-06274

9043012221

main90430-12221

9167180616

main91671-80616

15 parts on this diagram · 1 diagram in section

ELECTRONIC FUEL INJECTION SYSTEM for Toyota NOAH/VOXY

This section contains 15 genuine Toyota parts for the ELECTRONIC FUEL INJECTION SYSTEM system of the Toyota NOAH/VOXY. Key components include: MANIFOLD, SWITCH & RELAY & COMPUTER, RELAY ASSY, CIRCUIT OPENING (FOR EFI), RELAY, INJECTION (FOR EFI), RELAY, MAIN.
