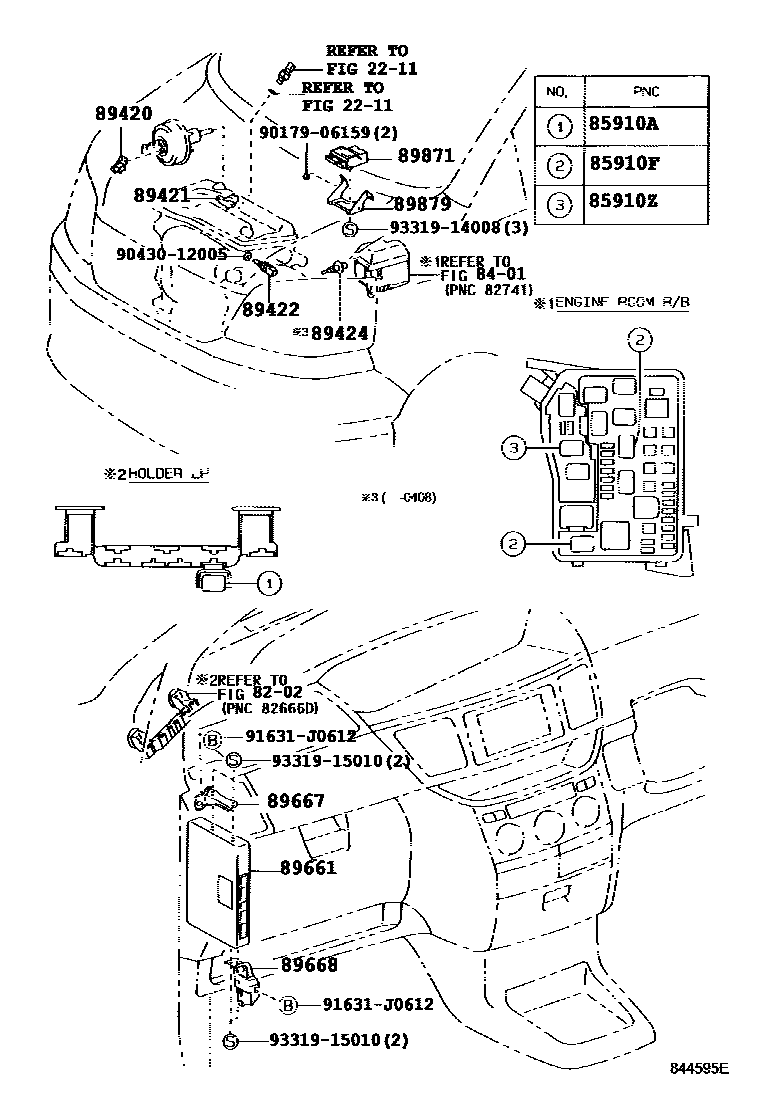

Toyota NOAH/VOXY — ELECTRONIC FUEL INJECTION SYSTEM
2211
8202
8401
85910ARELAY ASSY, CIRCUIT OPENING (FOR EFI)
85910FRELAY, COMPUTER (FOR EFI)
85910ZRELAY, INJECTION (FOR EFI)
89420SENSOR ASSY, VACUUM
89421SENSOR ASSY, VACUUM (FOR E.F.I.)
89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)
89424SENSOR, INLET AIR TEMPERATURE (FOR E.F.I.)
89661COMPUTER, ENGINE CONTROL
89667BRACKET, ENGINE CONTROL COMPUTER
89668BRACKET, ENGINE CONTROL COMPUTER, NO.2
89879BRACKET, INJECTOR DRIVER
9017906159
main90179-06159
9043012005
main90430-12005
91631J0612
main91631-J0612
9331914008
main93319-14008
9331915010
main93319-15010
20 parts on this diagram · 1 diagram in section
