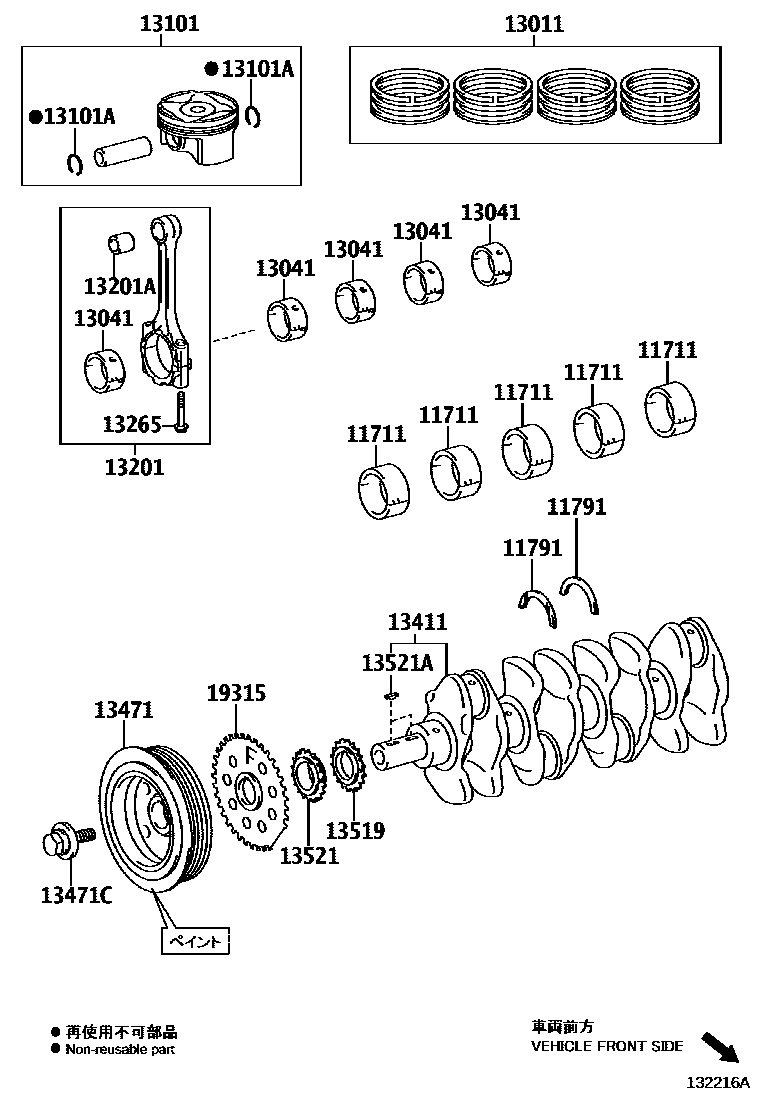

Toyota NOAH/VOXY — CRANKSHAFT & PISTON

11711BEARING, CRANKSHAFT

main11701-37020-01×5i201004-201304

main11701-37020-02×5i201004-201304

main11701-37020-03×5i201004-201304

main11701-37020-04×5i200706-201004

main11701-37021-01×5i201304-201401

main11701-37021-02×5i201304-201401

main11701-37021-03×5i201304-201401

main11701-37021-04×5i201304-201401

11791WASHER, CRANKSHAFT THRUST, UPPER

main11791-22020×2i201004-201310

main11791-37010×2i201310-201401

13011RING SET, PISTON

main13011-37090i200706-200805

main13011-37130i200805-201004

13041BEARING, CONNECTING ROD

main13041-37030-01×4i201004-201401

main13041-37030-02×4i200706-201004

main13041-37030-03×4i200706-201004

13101PISTON SUB-ASSY, W/PIN

main13101-37090×4i200706-201004

13101ARING, HOLE SNAP(FOR PISTON PIN)

main90520-20064×8i201004-201401

13201ROD SUB-ASSY, CONNECTING

main13201-39205×4i200706-201004

13201ABUSH(FOR CONNECTING ROD SMALL END)

main90999-73151×4i200706-201004

13265BOLT, CONNECTING ROD

main13265-22020×8i200706-201004

13411CRANKSHAFT

main13401-37030i200706-200709

main13401-37031i200709-201004

main13401-37032i201309-201401

13471PULLEY, CRANKSHAFT

main13470-37020i200806-201004

main13470-37030i200706-200806

main13470-37041i201310-201401

main13470-37050i201110-201310

13471CBOLT(FOR CRANKSHAFT PULLEY SET)

main90119-14106i200706-201004

13519GEAR, OIL PUMP DRIVE

main13519-37010i200706-201004

13521GEAR OR SPROCKET, CRANKSHAFT TIMING

main13521-37020i200706-201004

13521AKEY(FOR CRANKSHAFT TIMING GEAR)

main90280-04003×2i200706-201004

19315PLATE, CRANK ANGLE SENSOR, NO.1

main19315-37010i200706-200808

main19315-37020i200808-201004

16 parts on this diagram · 1 diagram in section

CRANKSHAFT & PISTON for Toyota NOAH/VOXY

This section contains 16 genuine Toyota parts for the CRANKSHAFT & PISTON system of the Toyota NOAH/VOXY. Key components include: BEARING, CRANKSHAFT, WASHER, CRANKSHAFT THRUST, UPPER, RING SET, PISTON, BEARING, CONNECTING ROD, PISTON SUB-ASSY, W/PIN.
